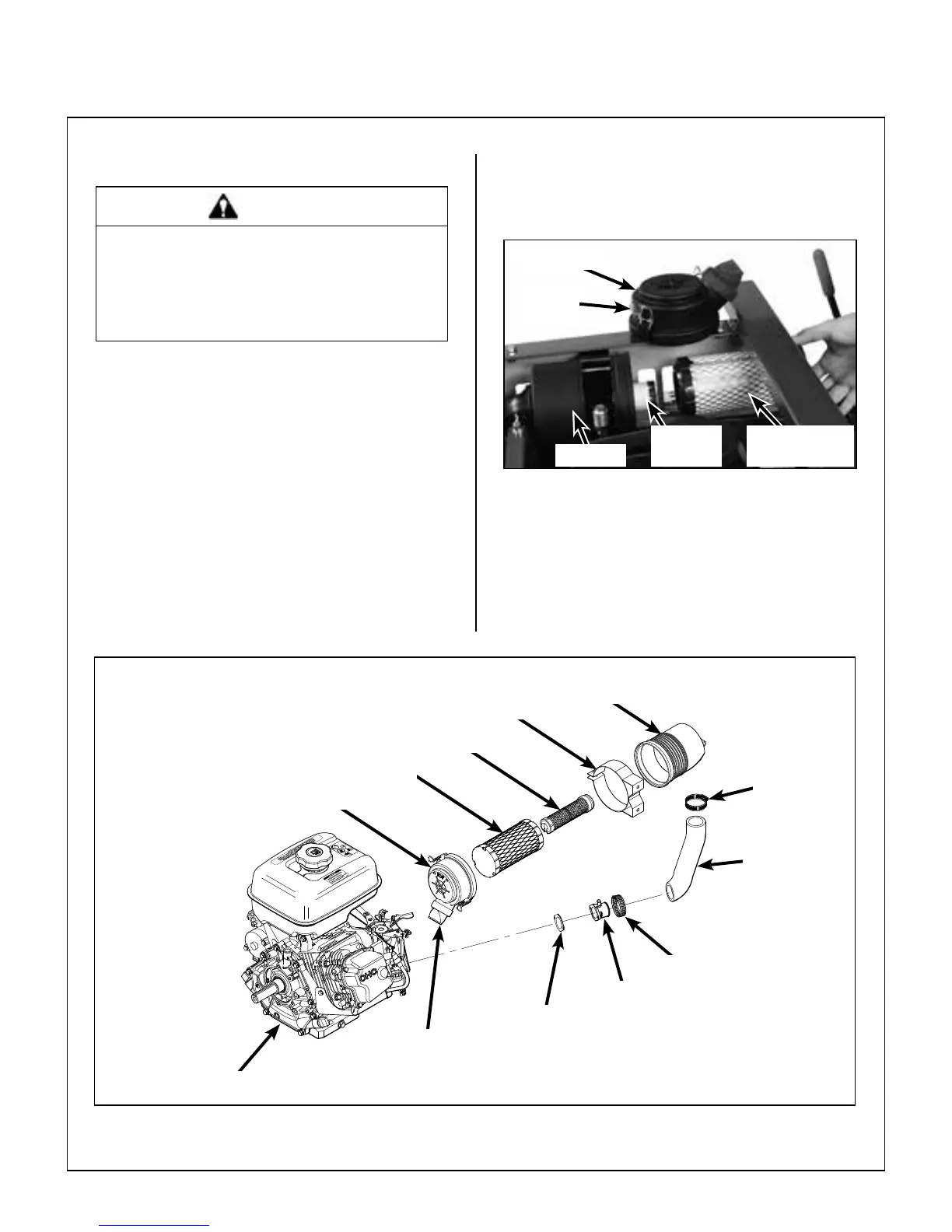

Maintenance Instructions CLEANING
52
CLEANING
CAUTION
If a pressure washer is used on the ex-
posed working parts, avoid water on the
electrical parts and the engine cooling sys-
tem.
Engine Air Cleaner System
Donaldson Radialseal™ Air Cleaner
A remote mounted Donaldson Radialseal™ air
cleaner provides the air ltering function. The paper
lter element slides over an outlet tube inside the air
cleaner canister with radial sealing action, eliminat-
ing the possibility of dust leaks due to improper lter
installation. Intake design, internal bafing, and a
dust ejection valve provide dust separation and au-
tomatic precleaning action. Daily or frequent servic-
ing of the air cleaner is not required.
IMPORTANT: Use only Donaldson air lter ele-
ments for replacement (Donaldson P822686 or
Walker 5090-1). Aftermarket lters may not seal
properly or lter efciently.
Cover
Latch
Cover
Primary
Filter Element
Canister
Safety
Element
Air Cleaner Components
(Shown with Cover Removed)
IMPORTANT: The Donaldson air cleaner uses a dry
paper-type air lter element. NEVER apply oil to the
paper element.
Engine Air Cleaner System Components
8600-12
Cover
Engine
Mounting
Band
Canister
Primary Filter
Element
Hose
Clamp
Intake
Tube
Intake Pipe /
Gasket
Air Intake
Hose
Hose
Clamp
Safety
Filter
Dust Ejection
Valve
