Reset Defaults screen
The Reset Defaults screen provides the option to return the
P3 PULSE setup parameters to the factory settings or cancel
and keep the current settings.
Complete one of the following:
• To cancel and return to the Settings Menu screen without
changing the current settings, press the soft key below
Cancel.
• To reboot the P3 PULSE and reset the system to the factory
default settings, press the soft key below
Select.
01550
SETTINGS
FEED SETTINGS
RESET DEFAULTS
DIAGNOSTICS
ENTER PASSWORD
01252
ARE YOU SURE YOU WANT TO RESET?

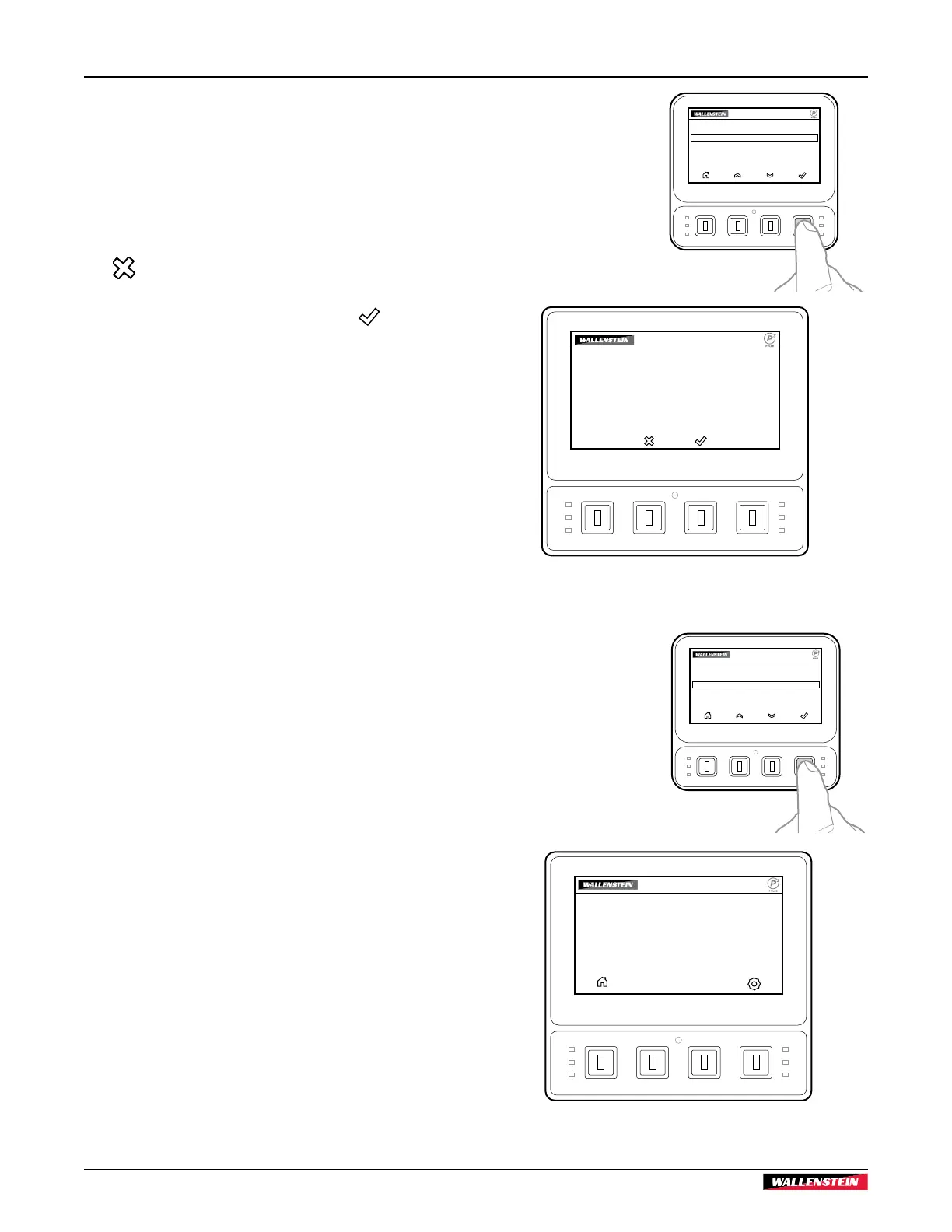

Fig. 21 – Reset Defaults screen
Diagnostics screen
The Diagnostics screen is typically used by technicians for
debugging and testing purposes. However, during operation you
can observe all the machine parameters on this screen.
The Diagnostics screen displays the following information:
• ENGINE RPM (for example; 3600).
• Machine model (for example; BXTR5224).
• Current state of the feed roller drive (for example;
NEUTRAL).
• ROTOR SPEED – the speed (rpm) the rotor is turning. 0000
indicates that the rotor is not turning.
• VALVE CURRENT – the electrical current (amperes)
supplied to the forward solenoid on the control valve. 0000
indicates that no electrical current is being received.
• Current feed settings that are available on the Feed Settings
screen (see page 8).
• Controller software version (for example; CV:2.0.0).
• Display software version (for example; DV:2.0.0).
NEUTRAL
ROTOR SPEED VALVE CURRENT
MAX FEED
SPEED
MIN FEED
SPEED
FEED START
SPEED
MIN ROTOR
RPM
0% 0% 0000
0000 0000
0000
BXTR52243600 ENGINE RPM
CV:2.0.0
DV:2.0.0
Fig. 22 – Diagnostics screen
