Chipper Severely Plugged
9. Ensure the machine is in safe condition before beginning.
10. Open the upper rotor housing.
11. Remove jammed material from inside the rotor
compartment.
12. Clean out the discharge chute.
13. Inspect the lower rotor housing and clean out any debris.
CAUTION!
The chipper blades are very sharp. Use caution
when reaching into the rotor compartment to
clear stuck material.
W026
14. If required, rotate the rotor by hand very carefully and
slowly to be sure there is nothing jammed between the
rotor and stationary blades. Do not reach into the rotor
housing while the rotor is moving.
15. Remove the bridge guard over the roller housing. Unscrew
the two bolts that secure the upper roller assembly.
01581

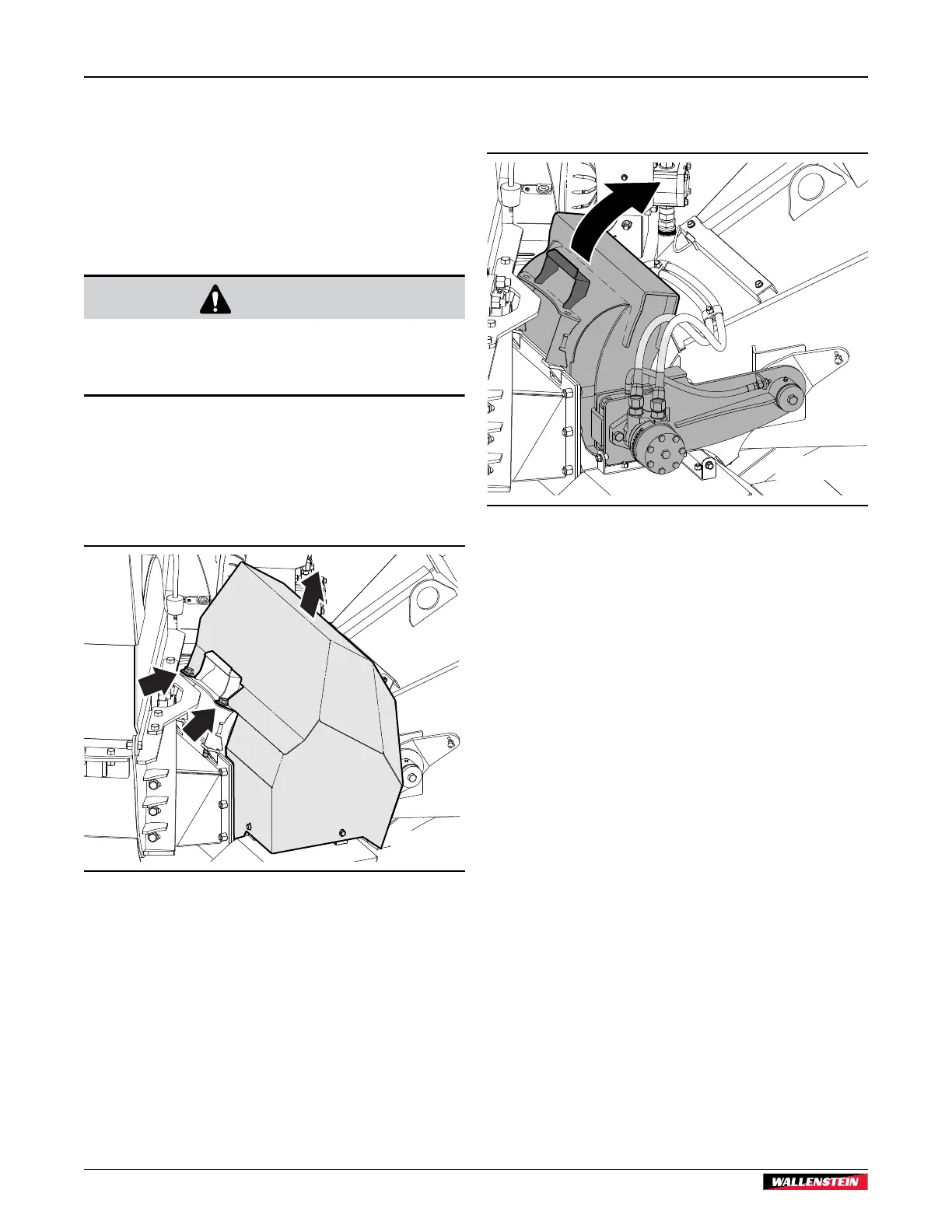

Fig. 33 – Bridge Cover
16. Grasp the roller assembly lift handle and pull the upper
roller arm up and back to gain access to the roller housing.
The gas springs hold it up.
01583
Fig. 34 – Upper Roller Arm Assembly
17. Carefully reach into the roller housing and remove any
debris.
18. If material is jammed around the rotor, very carefully
and slowly turn the rotor by hand to remove any jammed
material. Do not reach into the roller housing while the
rotor is moving.
19. When all debris has been removed, lower the upper roller
housing back into position. Install the two housing bolts.
20. Reinstall the bridge guard. Tighten fasteners to their
specified torque.
