CURA WANHAO EDITION USER MANUEL REV.B 7 / 23

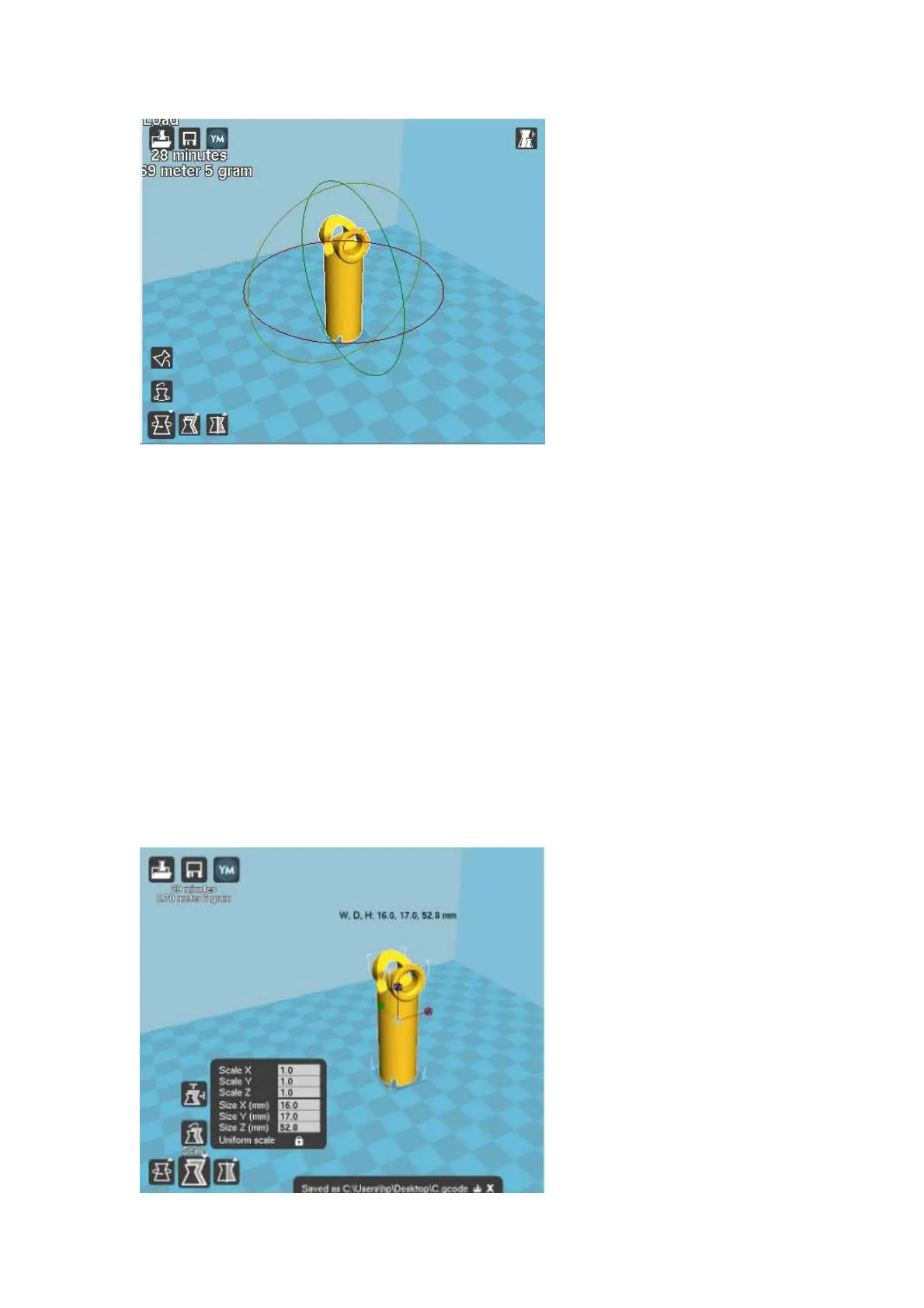

Figure 1.3: Rotating your Model
Lay Flat
The Lay Flat button will ensure that the flat portion of your print is securely attached to the bed.
It is highly recommended to use this optional after rotating your model in the Z direction, as it
will help prevent adhesion issues during the print.
Reset
The Reset button will return your model to the original orientation as defined by the CAD
program used to create the model.
Scale
The Scale button displays the model dimensions, along with the ability to scale along the X Y or Z
axes. Anything below the number 1.0 will reduce the objects size, while anything above the
number 1.0 will increase the objects size. As a default, it will be set to uniform scaling. This will
cause the X Y and Z axes to be scaled by the same amount when you make a change to any of
them. To disable this, select the lock in the lower section of the scaling window.
