WarmFlow Utility U70HE - Condensate Disposal

Page 25

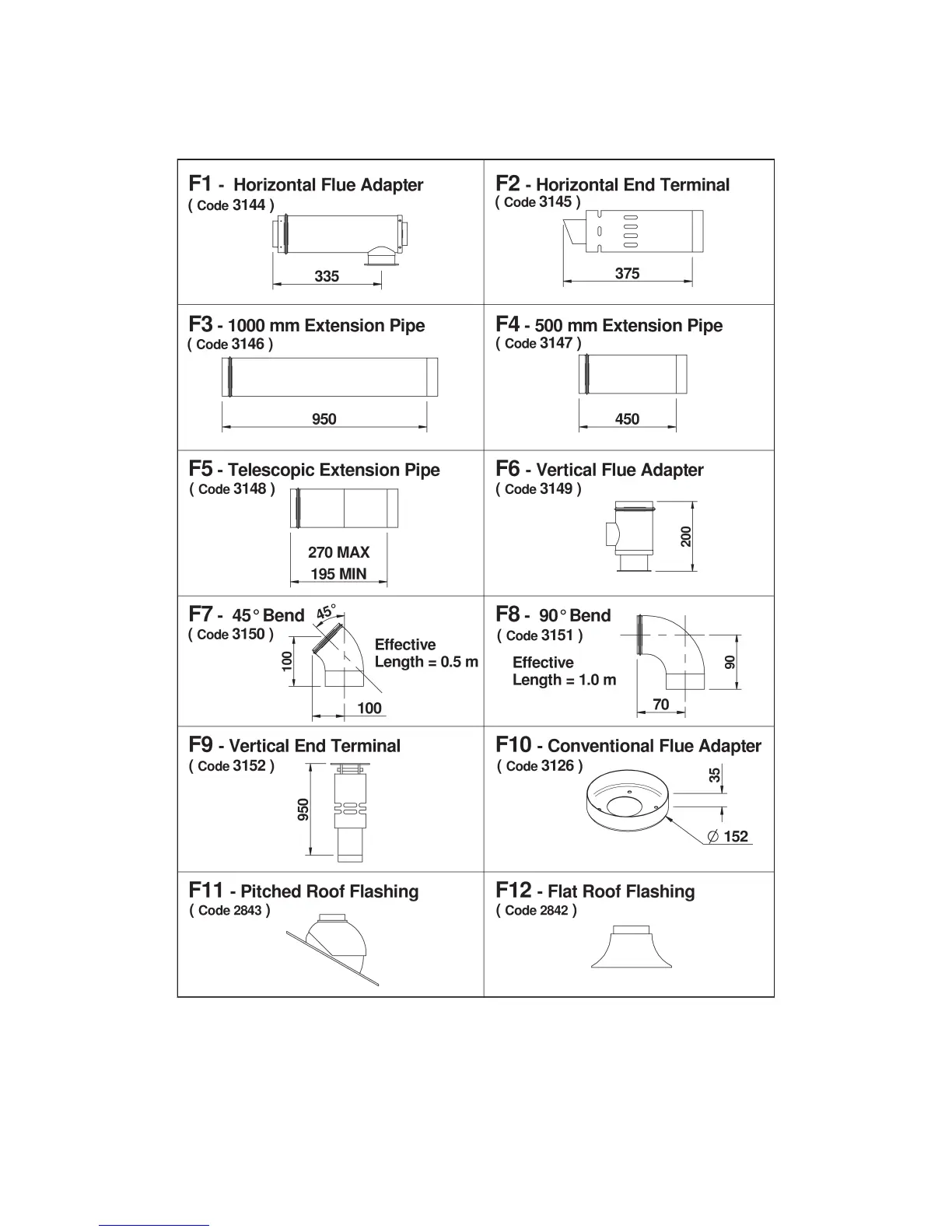

2.3.3 Warmflow HE Boiler Flue Components: 80/125 Ø
Note:
1. Flue fitting kit required.
2. If terminal is less than 2 metres above ground level terminal guard must be fitted.
3. Extension pipes and flue adaptor lengths quoted are effective lengths and not the actual length
of the piece.
4. All dimensions in mm unless otherwise stated.
