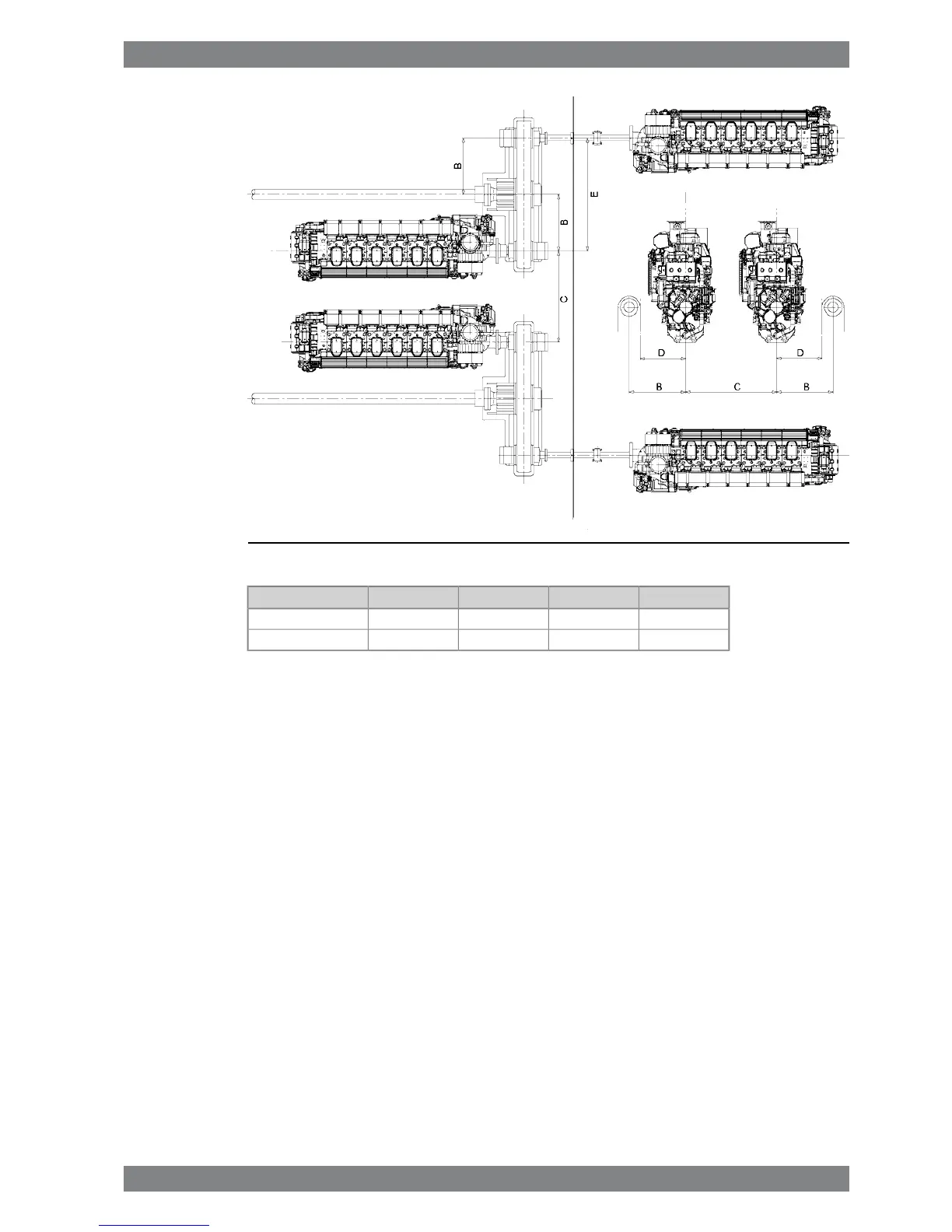

Fig 18-5 Main engine arrangement, 4 x L46F (DAAE045142)
E [mm]D [mm]
1)
C [mm]B [mm]Engine type
46001850340023006L46F
49001850370024507L, 8L, 9L46F
1)
Minimum free space.
Propeller shaft diameter to be determined case by case.
Dismantling of big end bearing requires 1500 mm on one side and 2300 mm on the other side.
Direction may be freely chosen.
Wärtsilä 46F Product Guide - a19 - 1 December 2017 18-5
18. Engine Room LayoutWärtsilä 46F Product Guide
