Washtech XP Series - Components; Component Location and Access

Components
WARNING
All service/repair work must be carried out by qualified personnel only.

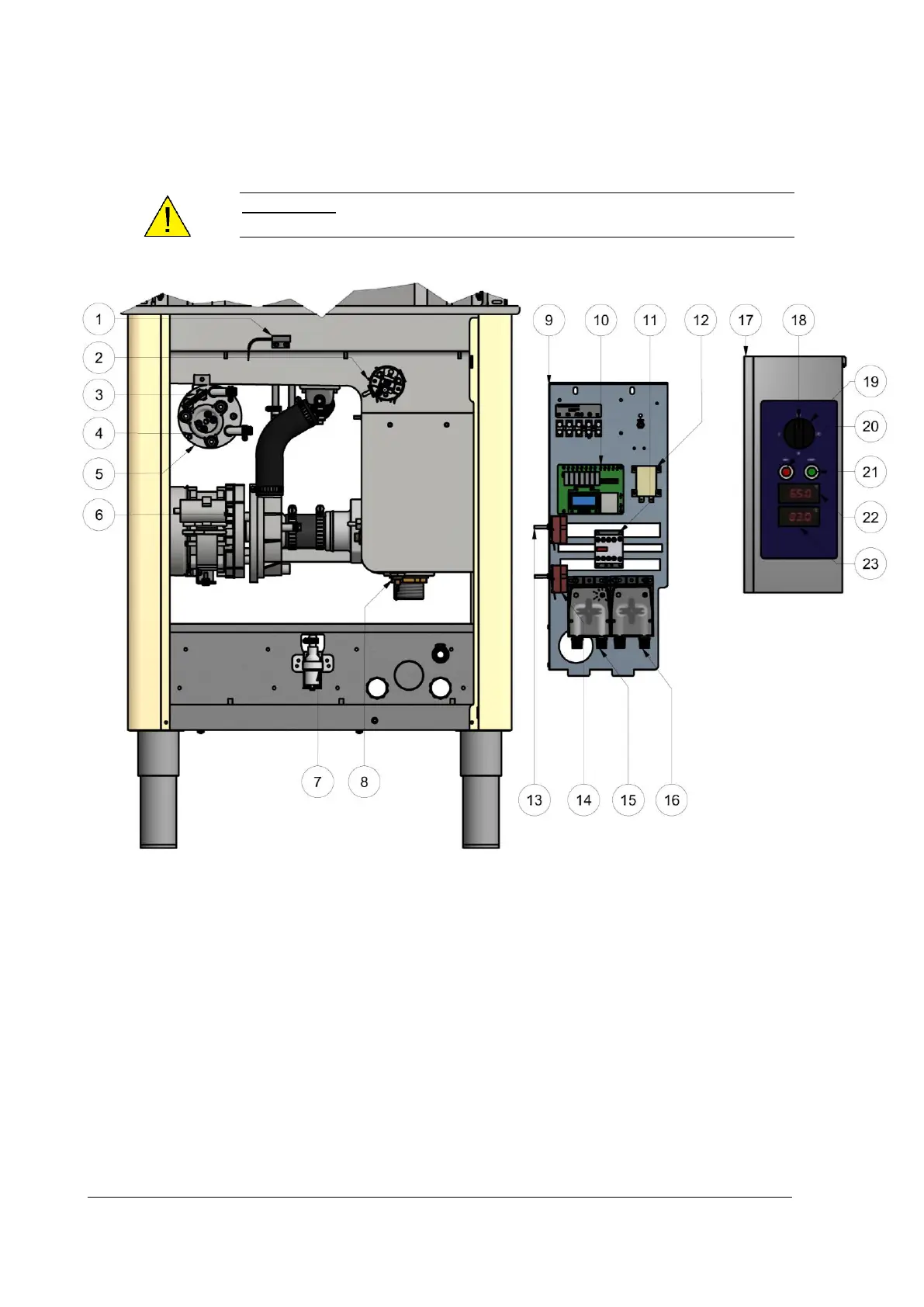

Location and Access
1. Door Switch
2. Pressure Switch
3. Rinse Over-Temp Cutout
4. Rinse Element
5. Rinse Tank Assembly
6. Wash Pump
7. Solenoid Valve
8. Wash Element
9. Wiring Tray Assembly
10. Electronic Timer
11. Contactor
12. Door Relay
13. Wash Thermostat
14. Rinse Thermostat
15. Detergent Pump
16. Rinse Aid Pump
17. Control Panel Assembly
18. Selector Switch Knob
19. Selector Switch (behind)
20. Power Light
21. Cycle Light
22. Wash Temp Gauge
23. Rinse Temp Gauge
Service Manual XP3
13
Revision 1F
