Washtech XP Series - Rinse Tank Assembly

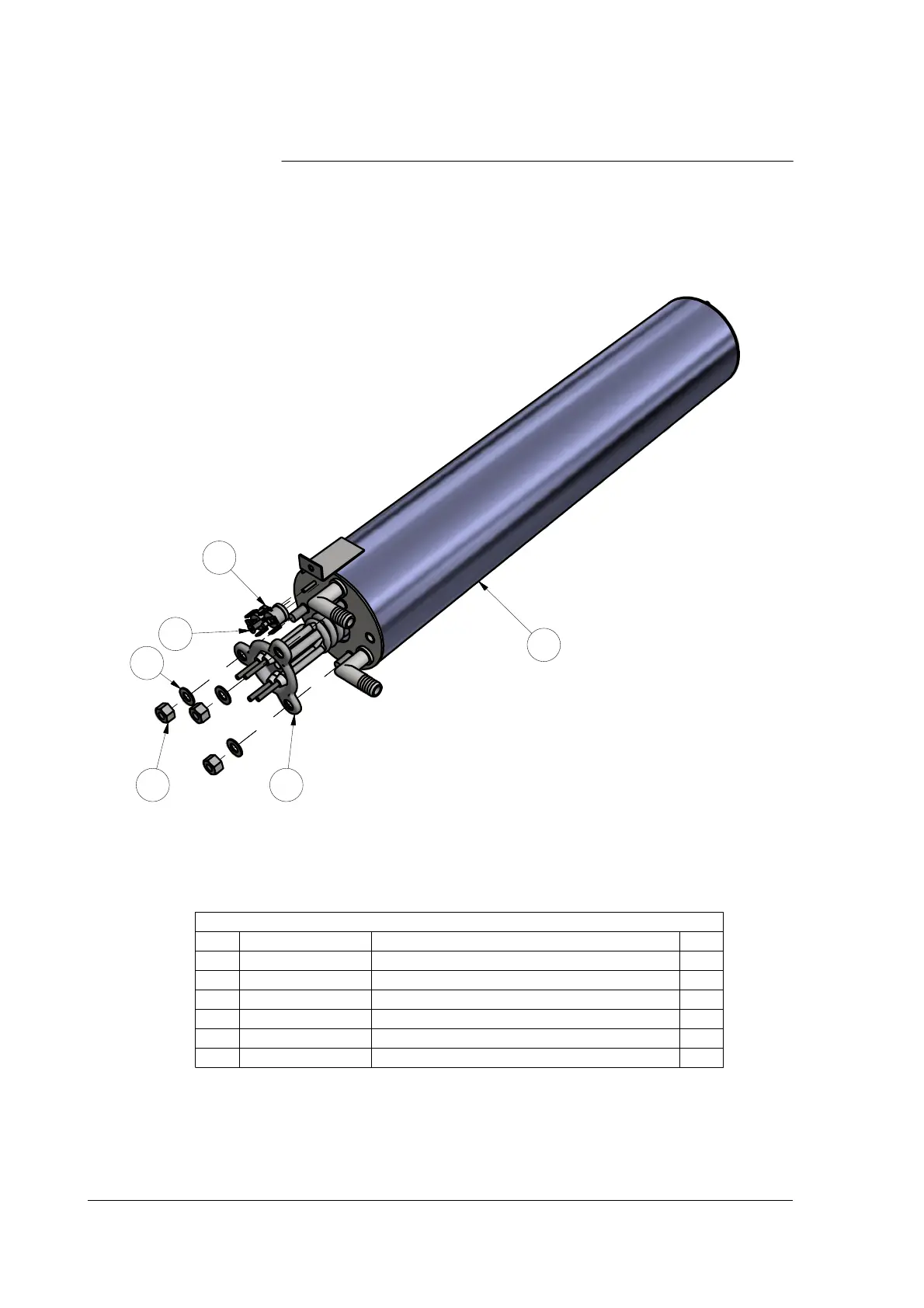

EXPLODED VIEW
Parts List
QTYDESCRIPTIONPART NUMBERITEM
1
XP3/XL2 RINSE TANK SS SUB ASSEMBLY 538MM
303 100171
2
TSTAT TY60/R-110C [WITH E BKT]
600 300882
1STANDOFF M3 x 12600 800643
1ELEMENT RINSE 6kW600 304964
3WASHER FL SS 304 M8x16x1.2mm 600 800225
3NUT NYLOC SS M8600 800636
303 10029
18/04/2017 3-A
XP-3(W) RINSE TANK SS ASSEMBLY
REV
2
6
5
4
3
1
Service Manual XP3
31
Revision 1F
