SWITCH BASE WIRING
MOUNTING
Parts List
QTYDESCRIPTIONPT#ITEM
1P CLIP600 301731
1
HOSE DRAIN PUMP 2.5M
600 601052
1
22MM 2 POLE DRAIN SWITCH
600 305173
1BASE CONNECTOR FOR 2 POLE SWITCH600 30542
4
1ASSY DRAIN PUMP FILTER400 10021
5
1GASKET DRAIN PUMP UNION388246
1DRAIN PUMP UNION388237
265x140mmHOSE UPPER WASH XU3 (CUT TO LENGTH)600 605238
4HOSE CLAMP ASS16 ASS169
1DRAIN PUMP B20-6 220-240V 50Hz600 6010210
1WASHER SPRING SS 304 1/4 inch (M6)856611
1
MS HX SS 304 M6 X 16
600 8001512
1
25mm ADHESIVE CABLE TIE MOUNT
320813
400 90174
16/02/2018 1-B
KIT0440072 - XP3 DRAIN PUMP RETROFIT
REV
1
2
3
9
10
8
7
6
5
CONNECT
YELLOW/BROWN
CONNECT
BLACK
CRITICAL:
ENSURE ARROW ON BODY
ALIGNED WITH "TOP"
MARKING ON SWITCH.
PUSH ON FIRMLY.
11
12

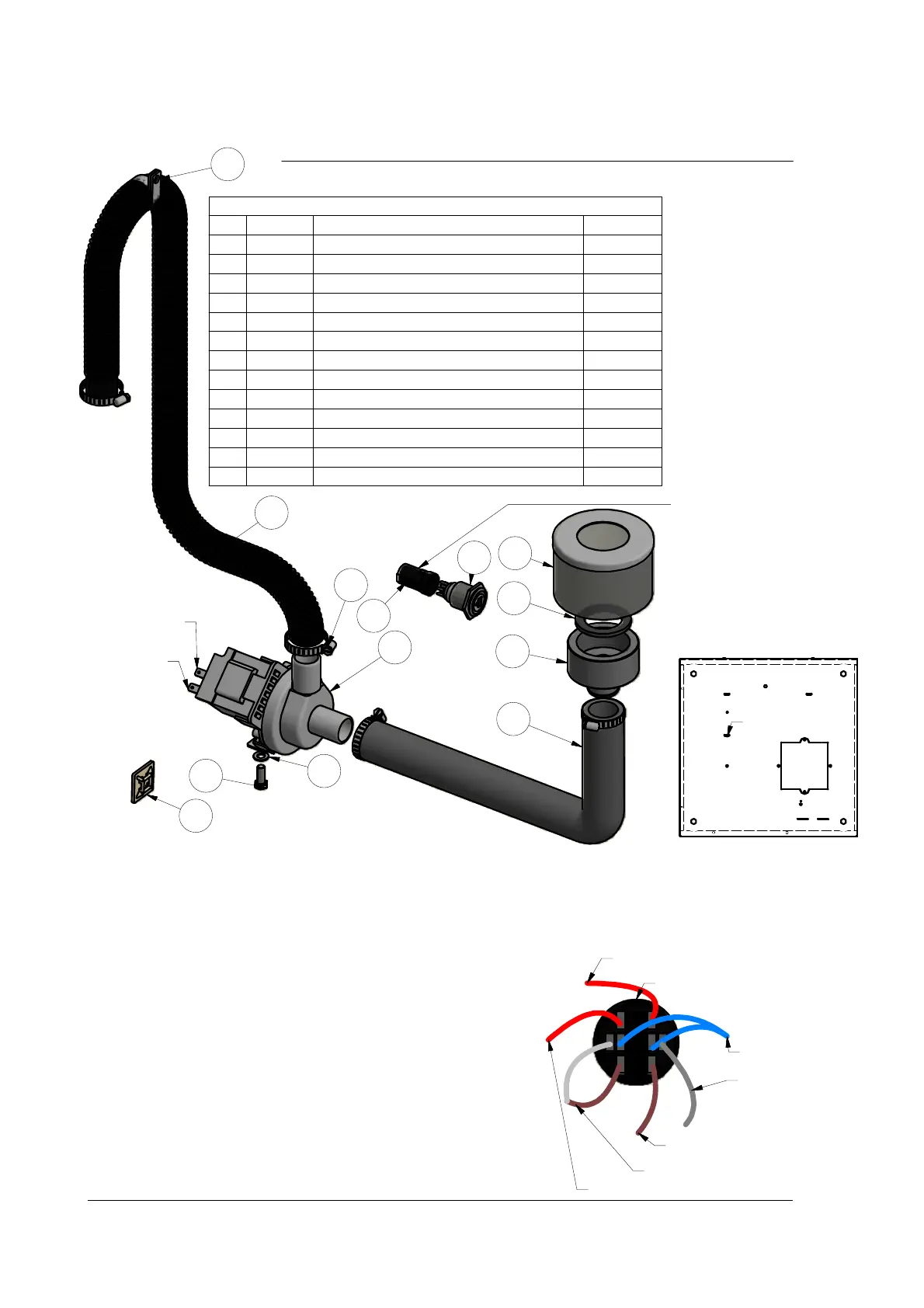

1. Preassemble drain pump (10) with inlet hose (8) and outlet hose (2) using
supplied hoseclips (9).
2. Secure pump to base using M6 bolt (12) and spring washer (11).
3. Assemble union (7) with gasket (6) onto machine waste connection. Join to
inlet hose and fit hoseclip. Inside wash tank, place filter (5) over waste
connection and refit upstand.
4. Secure drain hose above water level using P clip (1) or cable tie mount(13).
5. On machine control panel, find circular knockout in panel below
temperature gauges. Trim label to suit and remove knockout. Fit switch (3).
Some filing may be required to remove knockout tabs.
6. Wire pump as shown - wires supplied in loom. Attach switch base (4) to
drain switch, and connect bullets into loom wires. See schematic for detail.
7. Once fitted - ensure that drain pump operates and light turns on when
button is pressed. Ensure that drain pump operates during cycle.
JOIN BROWN WIRE
TO YELLOW/BROWN LOOM WIRE
JOIN BLACK WIRE
TO BLACK LOOM WIRE
LINK BROWN
AND WHITE WIRES
JOIN BLUE WIRES TO
RED LOOM WIRE
JOIN RED WIRE TO BROWN LOOM WIRE
4
13
ARROW ON
THIS SIDE
FRONT
MOUNT PUMP
HERE
NC
NO
C
INSULATE END OF RED WIRE
