Washtech XP Series - Door Link Assembly

2
B

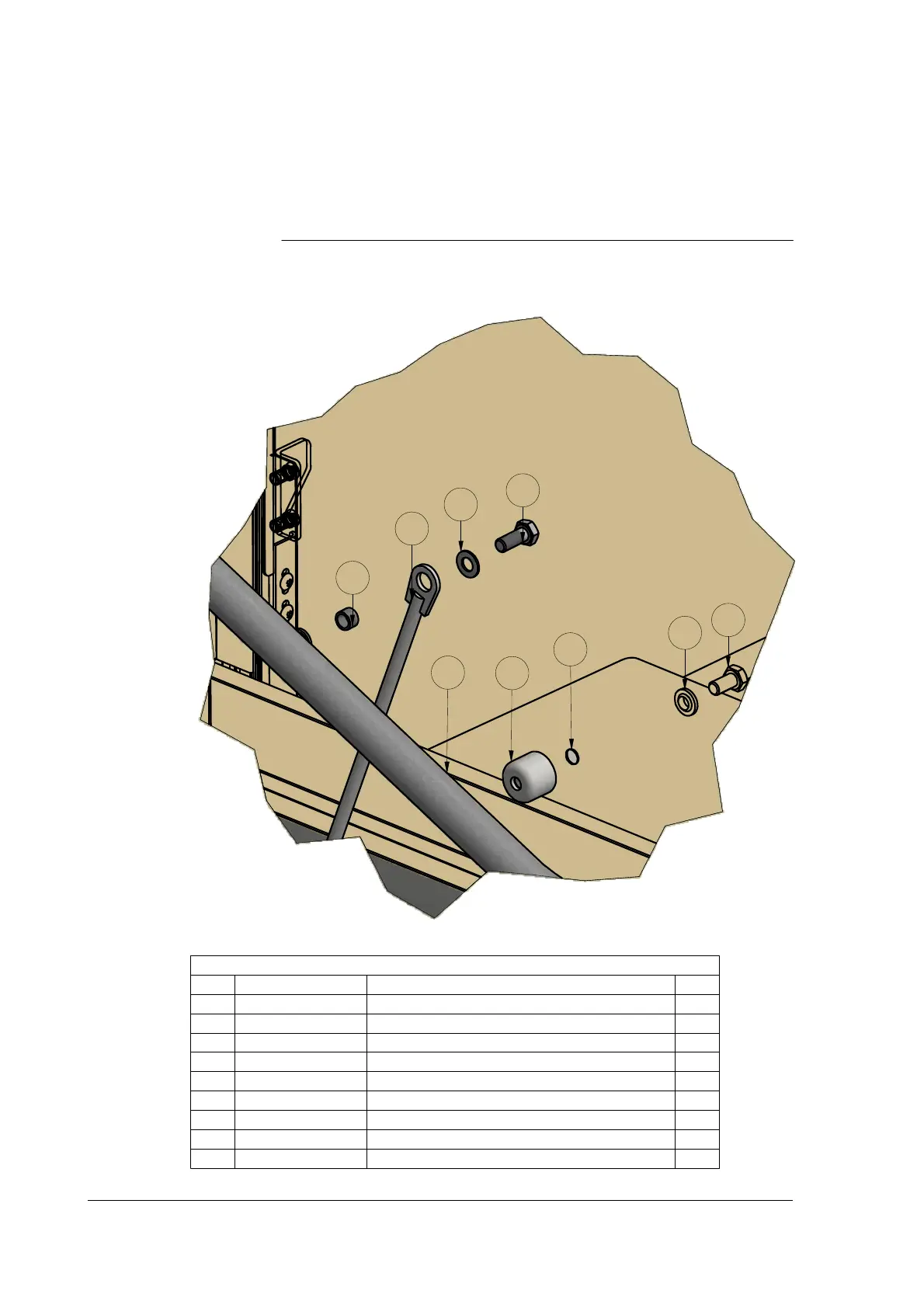

Parts List
QTYDESCRIPTIONPART NUMBERITEM
1XP-3 DOOR ASSY303 100071
1
WASHER FL SS 304 M8x16x1.2mm
600 800222
1
M2(4) ASSY DOOR HANDLE
328 100123
1PASSTHROUGH DOOR STAY MOUNT400 30225
4
1M8x12 HEX HD SET SCREW T304600 80029
5
1PASSTHROUGH DOOR STAY ASSY400 102066
18mm TYPE A SEALING WASHER600 801587
1M8x20 HEX HD SET SCREW T304600 800308
1SPACER16589
303 10001 7/12/2018 1-B
XP-3 DOOR LINK ASSEMBLY
REV
3
9
6
2
8
4
7
5
1
Service Manual XP3
32
Revision 1F
