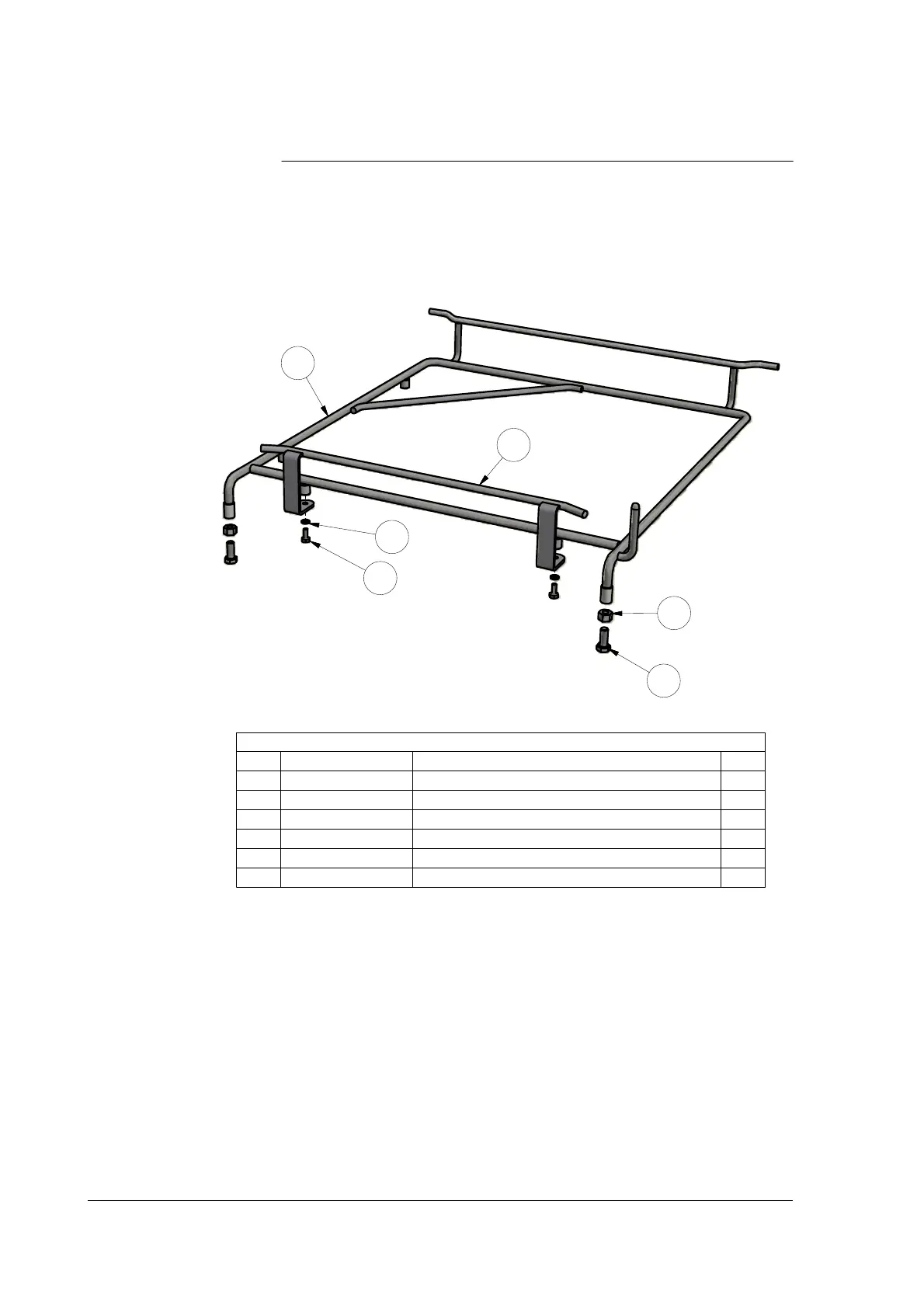

Washtech XP Series - Rack Slide Assembly

EXPLODED VIEW
Parts List
QTYDESCRIPTION
PART NUMBERITEM
2
M8x20 HEX HD SET SCREW T304
600 800301
2NUT NYLOC SS M8600 800632
1RACK GUIDE ROD ASSEMBLY328 100083
1M2 RACKSLIDE SUB-ASSEMBLY328 100244
2M5 x 12 SS HEX HEAD BOLT600 801355
2WASHER SPRING SS 304 M58567 6
328 10026
30/05/2016 3-B
M2 RACKSLIDE ASSEMBLY
REV
4
2
1
3
6
5
Service Manual XP3
33
Revision 1F
