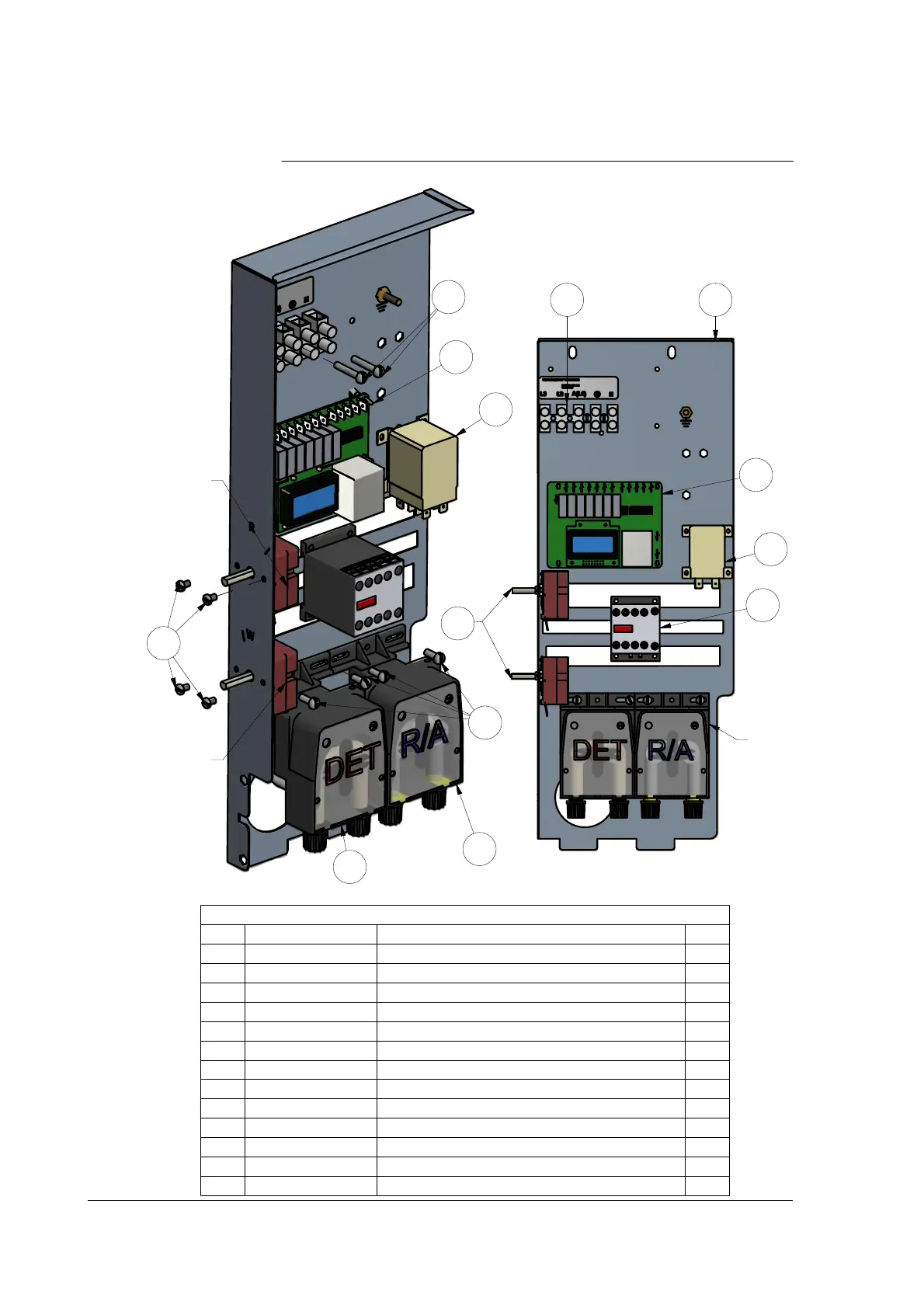

Washtech XP Series - Wiring Tray Assembly

FRONT VIEW
PERSPECTIVE VIEW
Parts List
QTYDESCRIPTION
PART NUMBERITEM
2THERMOSTAT 1 POLE302011
1TIMER ELECTRONIC600 305132
4MS PAN POZI ZP M4x1288013
1TERMINAL STRIP 12 WAY x 0.532294
2MS PAN POZI ZP M4x2588025
1X-RANGE WIRING TRAY SUB-ASSEMBLY302 100196
4MS PAN POZI ZP M4x688007
4
PCB SUPPORT-END DOME HEAD
600 305278
1
CONTACTOR 20A 3NO/NC 230-240V
600 303379
1POWER SUPPLY TERMINAL LABELLABEL10
1PERISTALTIC RINSE AID PUMP ADJUSTABLE600 3048011
1PERISTALTIC DETERGENT PUMP ADJUSTABLE600 3052612
1JQX-12F POWER RELAY600 3022313
303 10020
3/08/2017 1-B
XP-3 WIRING TRAY ASSEMBLY
REV
4
5
2
1
6
7
3
12
11
8
9
13
13
WASH
WIND PROBE TUBING
TO 200mm LENGTH
RINSE
PROBE TUBING
FULL LENGTH
ALIGN PUMPS
TO LEFT
Service Manual XP3
26
Revision 1F
