WaterLogic CUBE FIREWALL - QUARTZ SPIRAL REPLACEMENT; Unit Disassembly for Access

CUBE Manual Page 30 - Revision: 5-24-2017

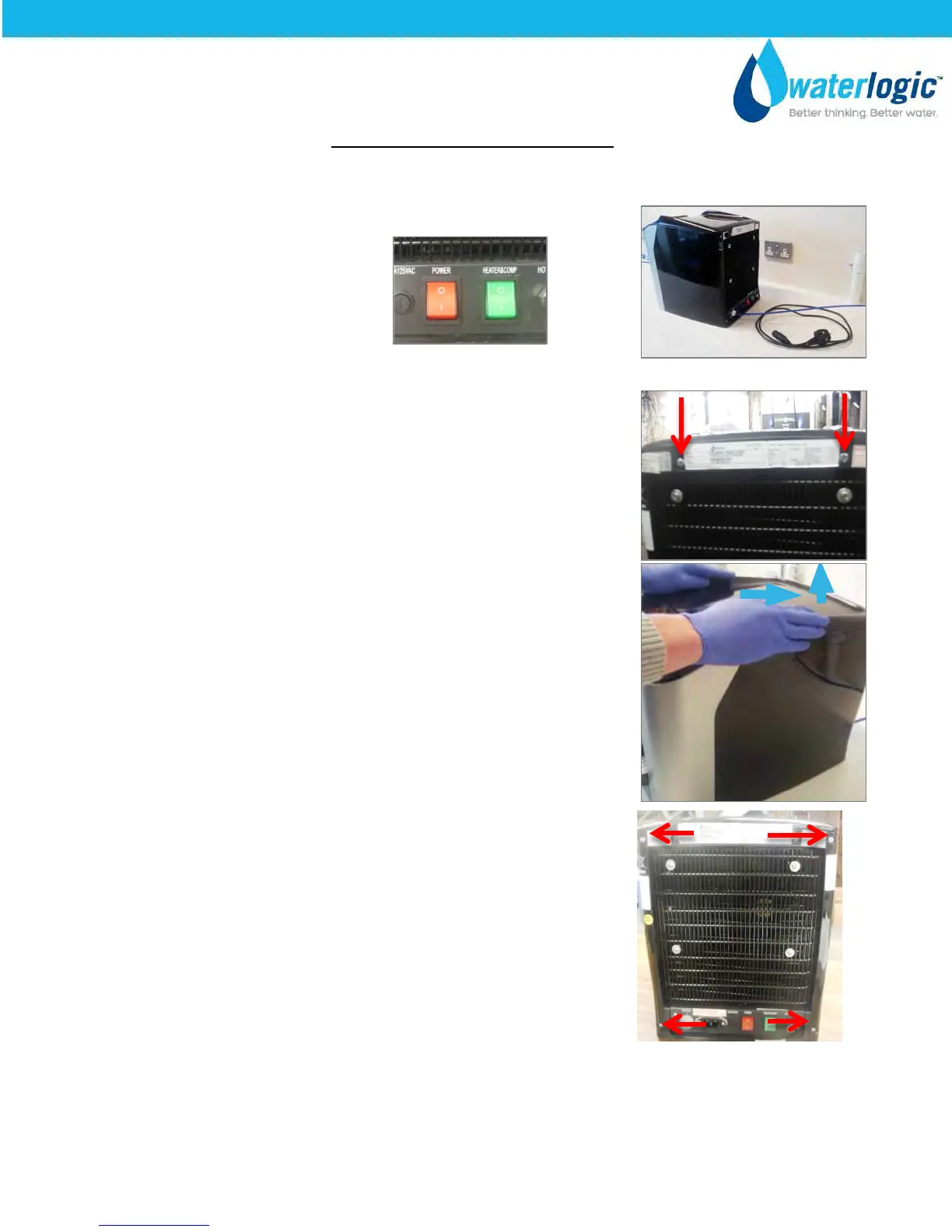

QUARTZ SPIRAL REPLACEMENT
1.
Turn off both the Green Heater/Compressor Switch
and the Red Power Switches located on back of unit
O=OFF
2.
Unplug power to unit.
3.
With a Phillips Head Screwdriver, remove the two
screws at back of the Top Cover – as shown.
4.
Remove Top Panel by placing your hands on the top
and pushing the top panel towards the rear.
Lift and remove as shown.
5.
With a Phillips Head Screwdriver, remove the two
screws on the Left Side Panel as shown. Remove Left
Side Panel.
Remove the two screws on the Right-Side Panel as shown.
Remove Right Side Panel.
