WaterLogic CUBE FIREWALL - QUARTZ SPIRAL REPLACEMENT; Front Frame and Tubing Disconnection; Quartz Spiral Replacement

CUBE Manual Page 33 - Revision: 5-24-2017

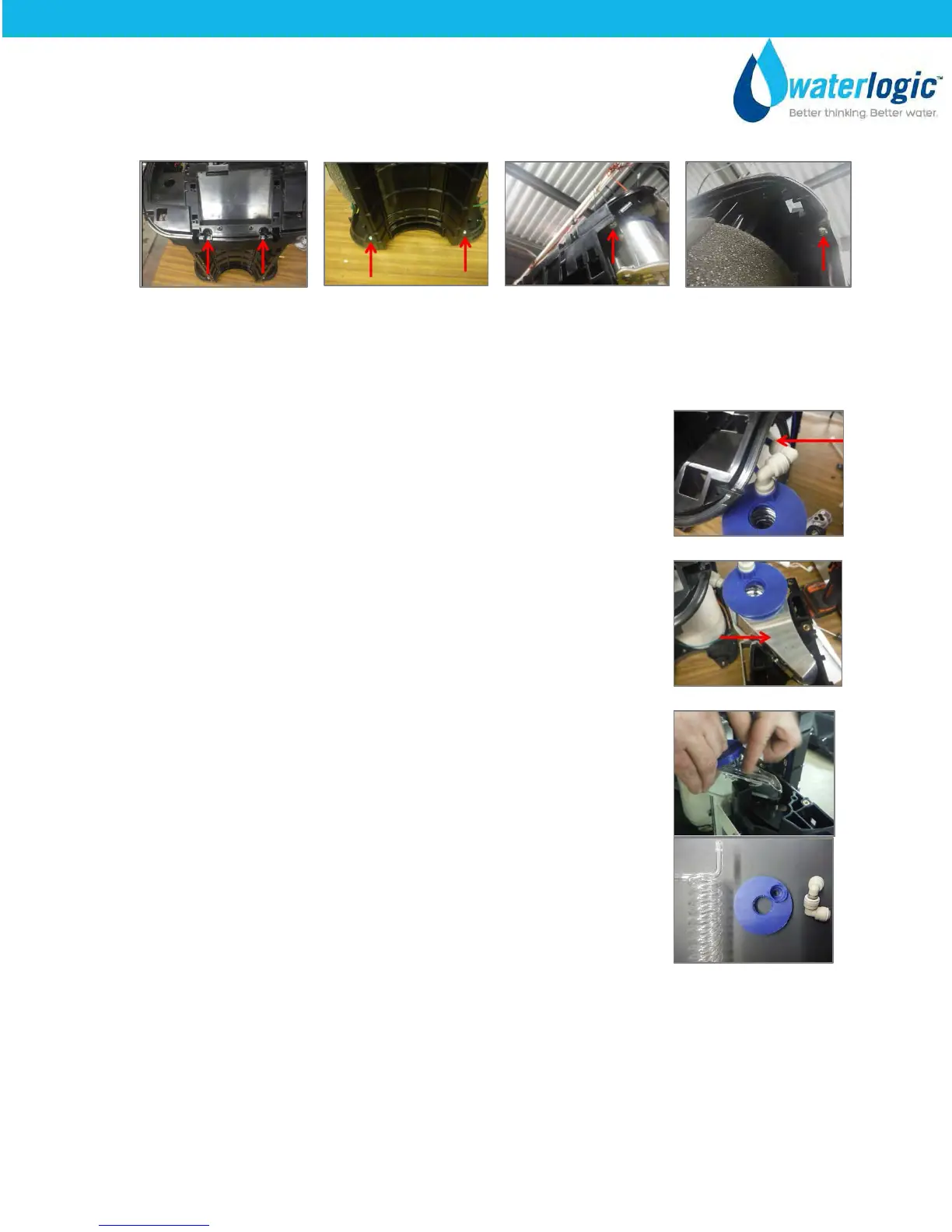

13.
Remove Front Frame. Front Frame is attached using 6 Phillip Screws.
2 screws are located on the top of the frame.
2 screws are located at the bottom of the frame.
2 screws are located on both sides, underneath the upper part of the frame.
14.
Disconnect elbow from tubing on the UV Lamp Assembly.
15.
Remove firewall housing top cover.
16.
Remove quartz sleep spiral from housing
17.
Remove blue CDS fixing rubber and elbow from quartz spiral.
18.
Put blue CDS final rubber and elbow on new quartz spiral.
Support when attaching rubber.
