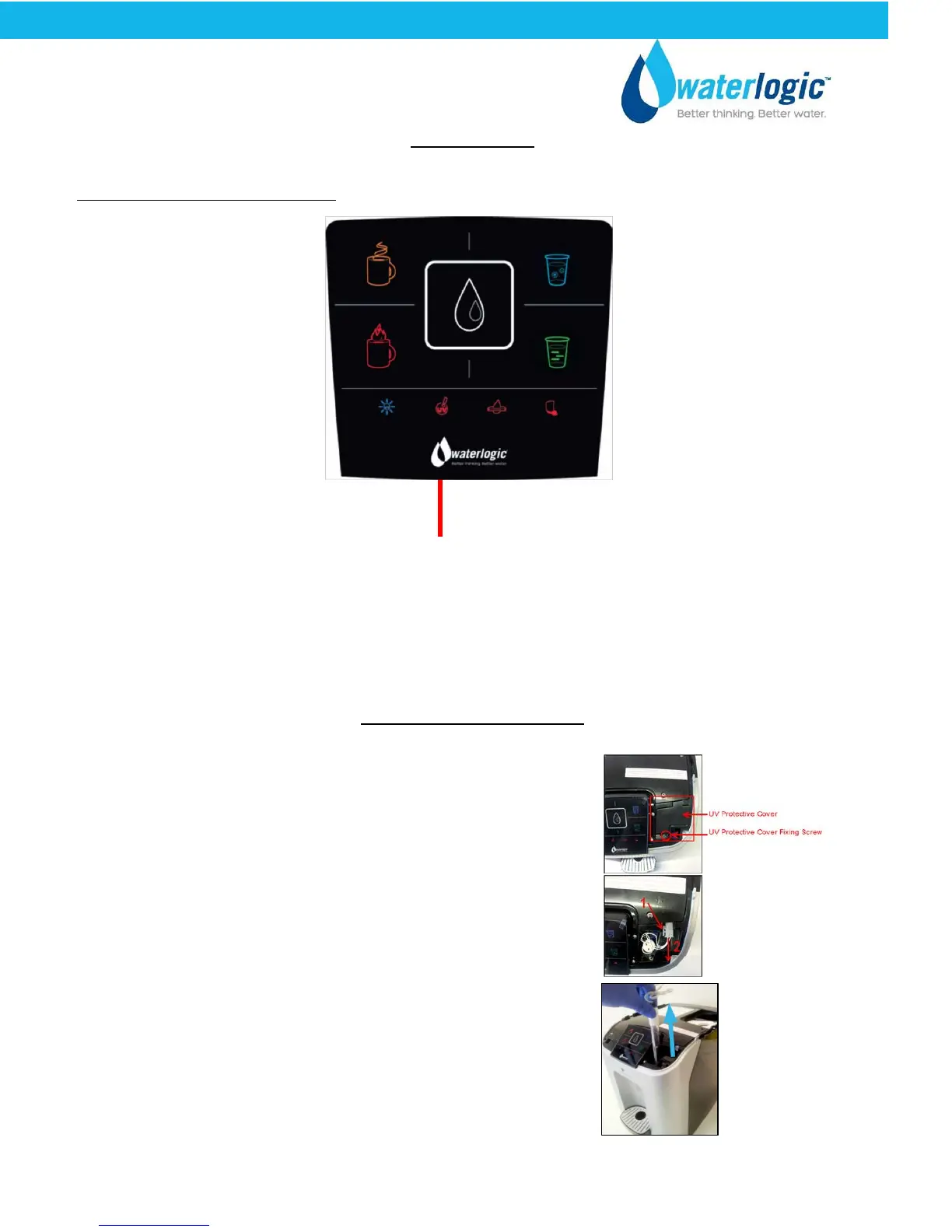

FAULT CODES
UV Purification Icon Flashing
The Cube will not dispense cold or ambient water without properly functioning FIREWALL. UV
Purification ensures the safety of the water.
UV LAMP REPLACEMENT
Remove the UV Lamp protective cover from the front
right hand side of the machine by removing the fixing
screw and lifting the cover up
Disconnect the UV Lamp Connector by pressing in the
clip on the side of the machine as shown (#1)
Pull the connector towards the front of the machine (#2)
Firmly pull the old UV Lamp up and out of the Cube.
Do not pull the lamp out an angle as it may break or
damage the internal parts of the Cube.
UV Purification Icon
Replace UV Light
CUBE Operating, Installation, and Service Manual Page 64 - Revision: 6-23-2015
