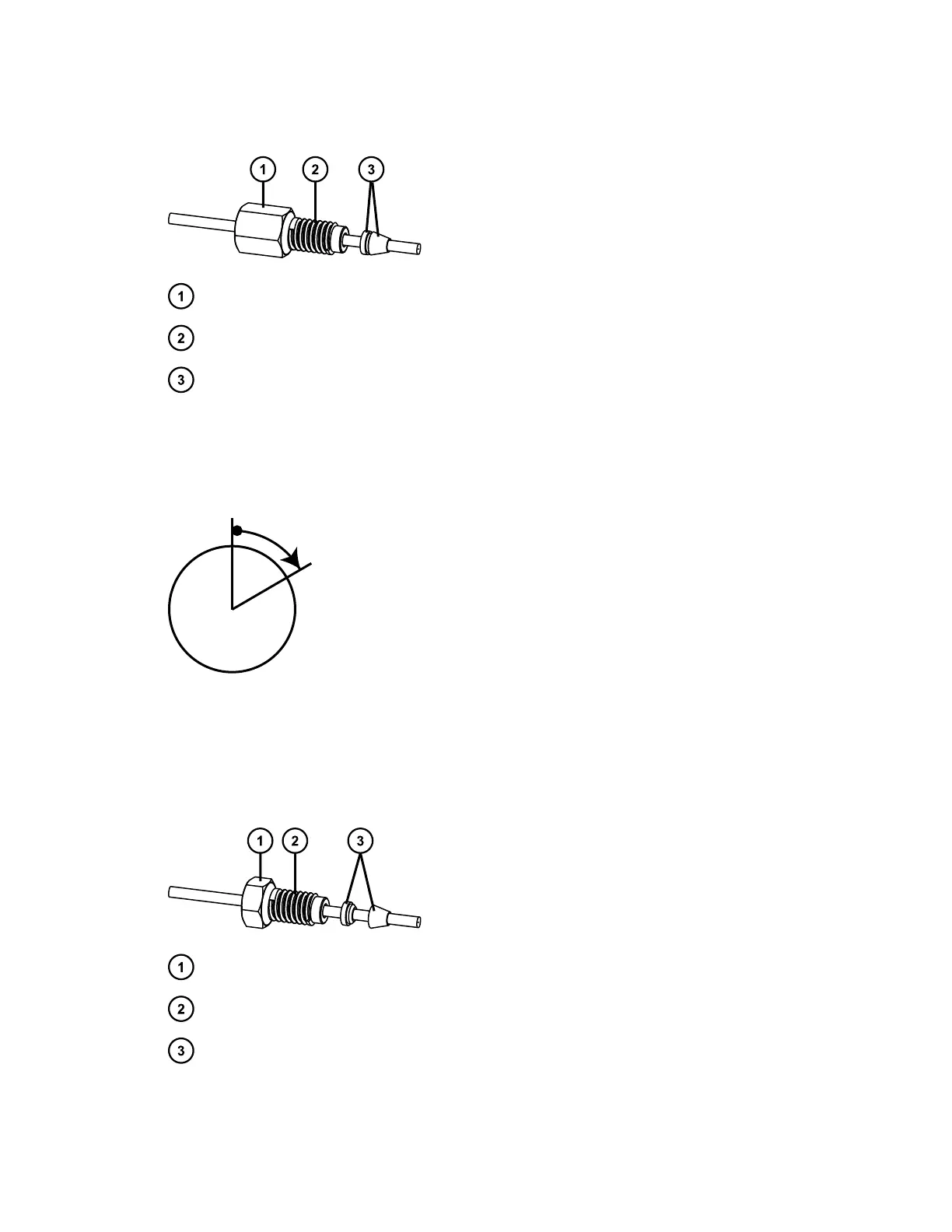

Reinstalled
Long flats
Compression screw
Two-piece stainless steel ferrule
Tighten the fitting finger-tight plus as much as an additional 1/6-turn using a 1/4-inch open-end
wrench.
Reinstalled tightening
2.3.1.3
Stainless steel (gold-plated) fitting with short flats and 2-piece stainless steel
ferrule (V-detail)
First use
Short flats
Compression screw
2-piece stainless steel ferrule
Tighten the fitting finger-tight plus an additional 3/4-turn using a 1/4-inch open-end wrench. For
detailed instructions about assembling new fittings, see Assembling new fittings.
December 4, 2019, 715005052 Version 02 (previously released as Rev.B)
Page 42
