2.3.1.4 One piece PEEK fitting

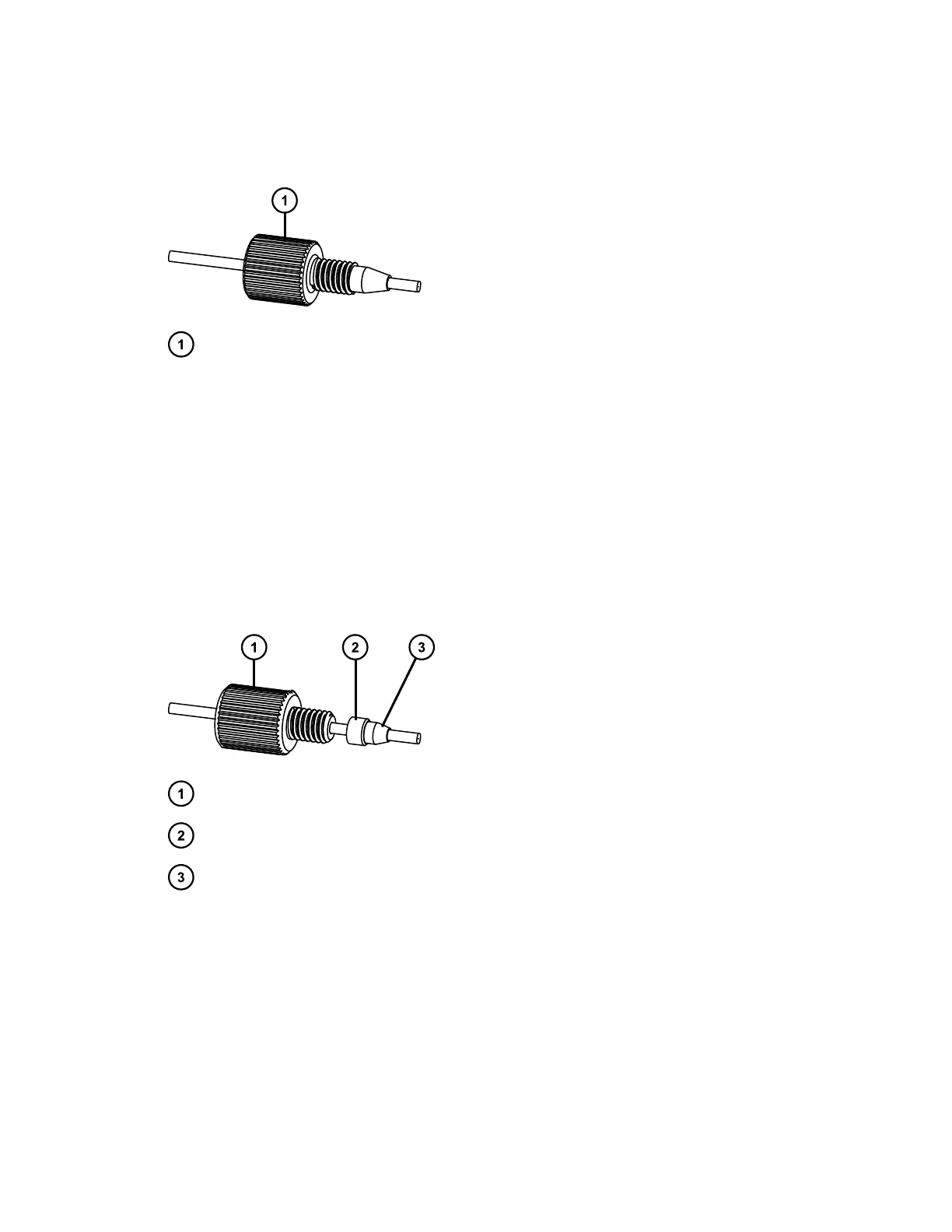

Figure 2–27: First use or reinstalled
Compression screw
Tighten the fitting finger-tight.
Tips:
• You can also use the column-gripping tool when tightening this fitting.
• To prevent band spreading, ensure that the tubing is fully bottomed in the connection port
before tightening the fitting.
2.3.1.5
PEEK fitting with PEEK ferrule and stainless steel lock ring
First use or reinstalled
Compression screw
Lock ring
Ferrule
Tighten the fitting finger-tight.
2.3.1.6
Dual-threaded fitting with locking cap nut
Required tools and materials
• Column gripping tool
