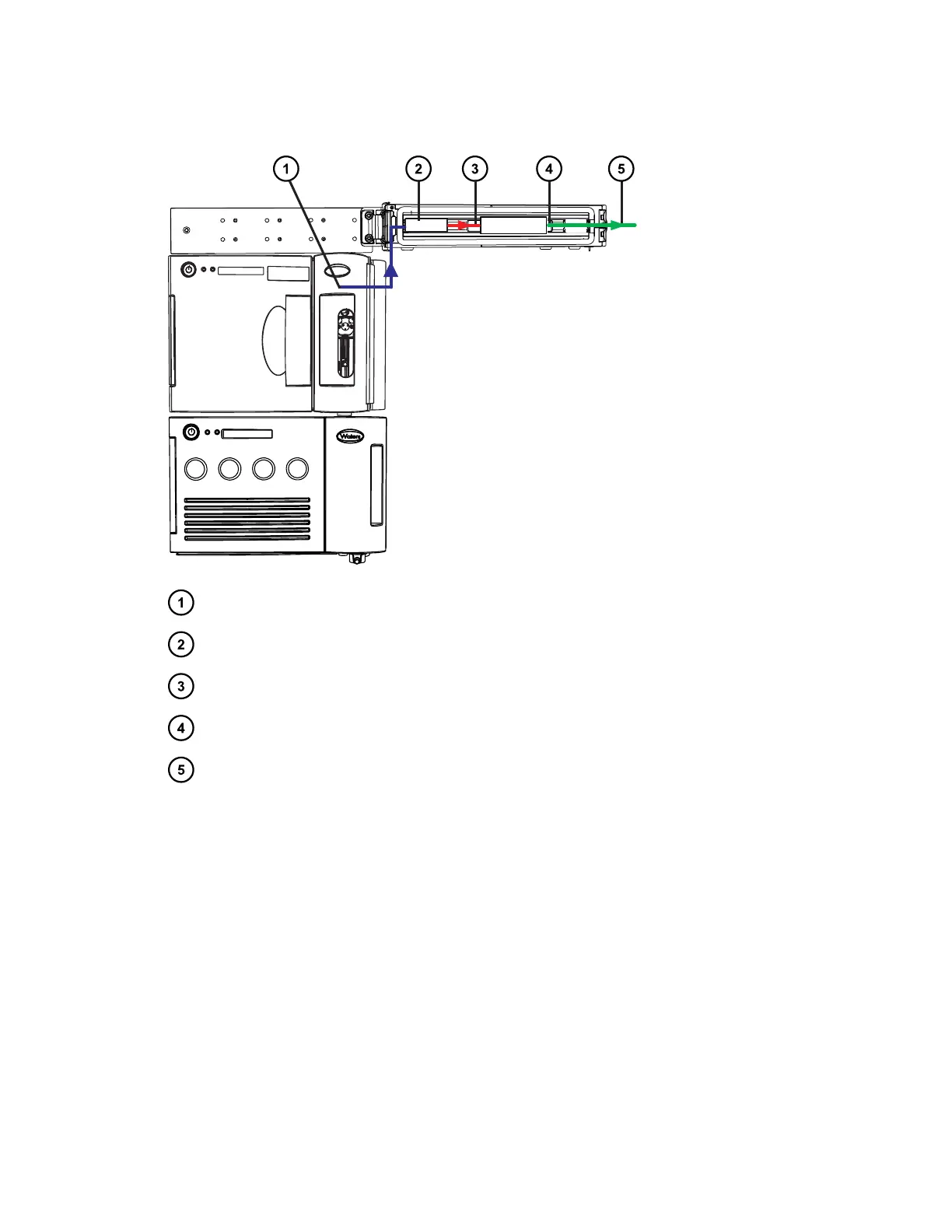

Figure 2–33: Flow path for extended CH-A configuration fitted with an APH assembly
A P H
COLUMN
APH assembly tubing connected to sample-manager injection valve outlet
APH assembly installed in left-hand control port
Column inlet
Column outlet
Column-outlet-to-mass-spectrometer-inlet tubing
Note: The column stabilizer is not supported in the MS extended position.
