Waters ACQUITY CH-A - Page 50

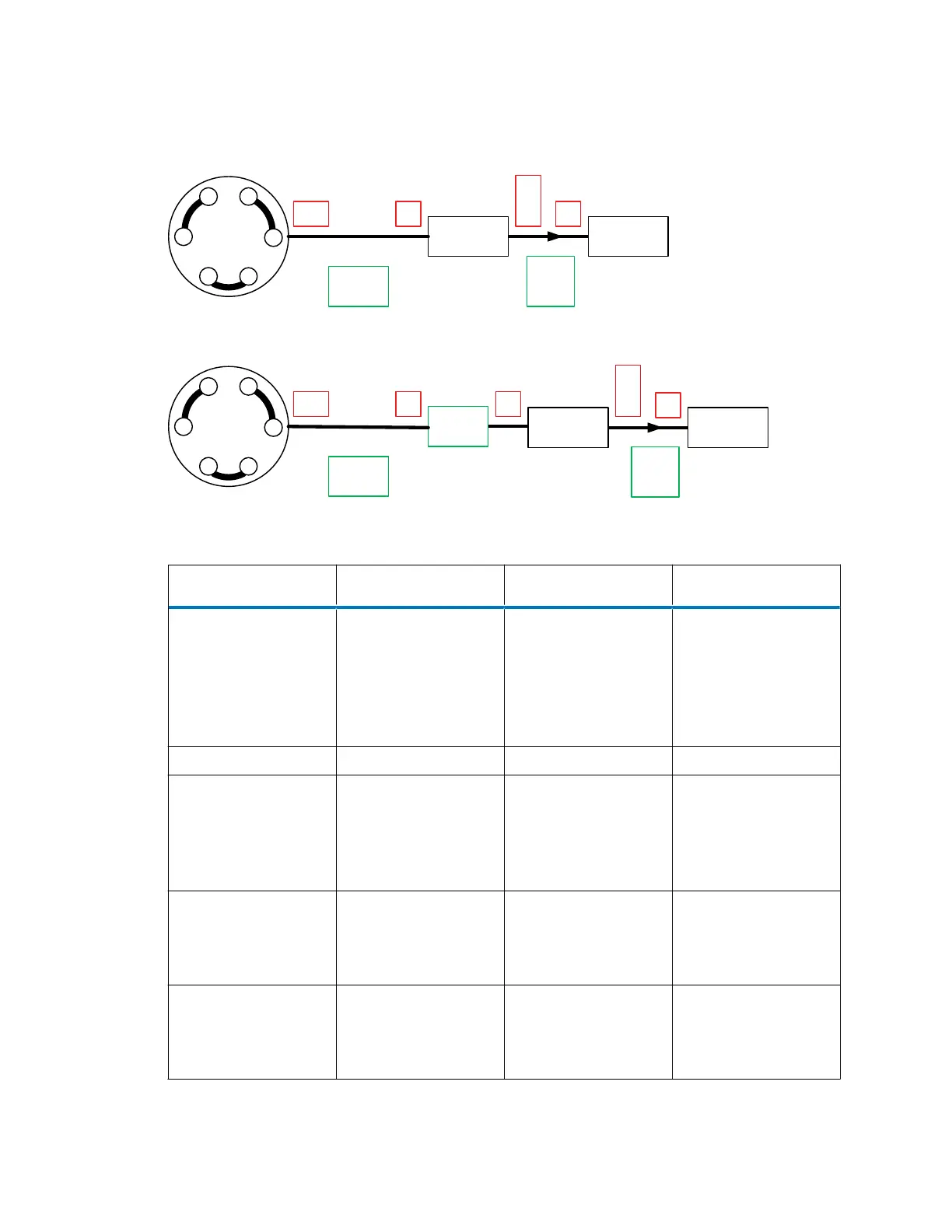

Figure 2–34: Connection diagrams for a CH-A fitted with an APH assembly
F1*
APH
F2
Column Detector
1
2
3
54
6
Injection
valve
T1
or
T2
F3
F1*
APH
F2
Detector
1
2
3
54
6
Injection
valve
F3
Column
Filter
F1
F1
or
F3
F1
or
F3
Sample manager
Sample manager
T1
or
T2
Table 2–2: Legend
Identifier Description Length Material
APH APH assembly
with .004-inch ID
tubing that connects
the sample manager's
injection-valve outlet
to the column inlet
32 cm (12.5 inches) SST or MP35N (Bio)
Filter Column filter (in-line) N/A SST
T1 Pre-configured tubing
assembly that
connects the column
outlet to the detector
or MS inlet
Varies according to
detector or MS setup
SST or PEEK
T2 Tubing assembly that
connects the column
outlet to the detector
or MS inlet
Cut to length PEEK
F1* Stainless steel (gold-
plated) fitting with long
flats and two-piece
stainless steel ferrule
N/A SST (gold-plated
screw)
December 4, 2019, 715005052 Version 02 (previously released as Rev.B)
Page 50
