Table 2–3: Legend (continued)
Identifier Description Length Material
F1 Stainless steel (gold-
plated) fitting with
short flats and two-
piece stainless steel
ferrule
N/A SST (gold-plated
screw)
F2 Dual-threaded fitting
with locking cap nut
N/A SST
F3 10-32 one-piece
PEEK fitting
N/A PEEK
To install the column stabilizer:
1. Stop any running mobile phase.
2. Open the fluidics compartment door of the sample manager.
3. If the APH assembly is installed, using the 1/4-inch open-end wrench, disconnect the APH
assembly from port 6 of the sample manager's injection valve.
4. After allowing sufficient time for the column compartment to cool, open the column
compartment door.
5. Remove the APH assembly from the retainer in the column compartment.

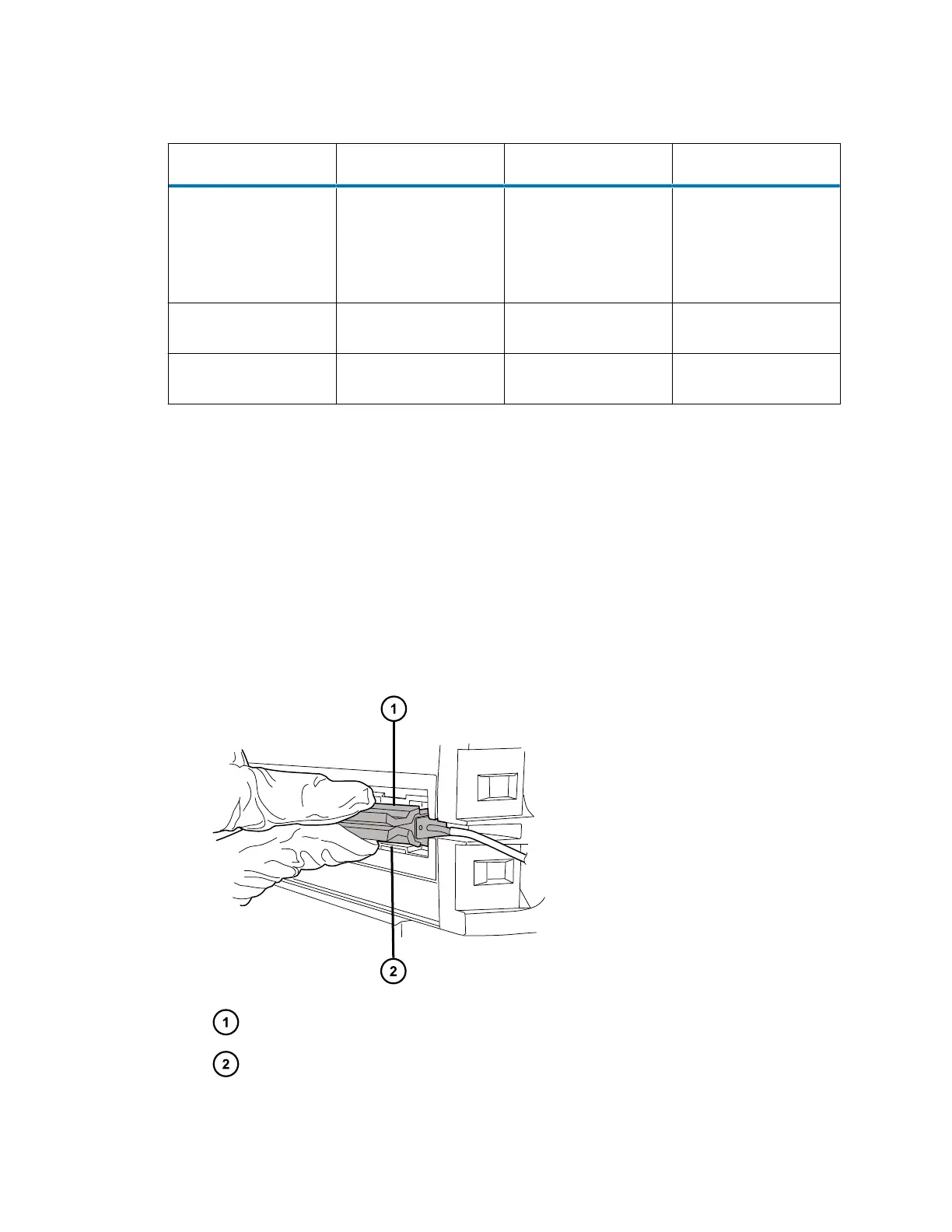

Figure 2–39: Removing the APH assembly
APH assembly
APH retainer clip
December 4, 2019, 715005052 Version 02 (previously released as Rev.B)
Page 56
