Required tools and materials
• Chemical-resistant, powder-free gloves
• Protective eyewear
• Replacement ferrule
To replace the ferrule on the column fitting:
1. Unscrew the #2 locking cap nut from the #1 knurled compression fitting.

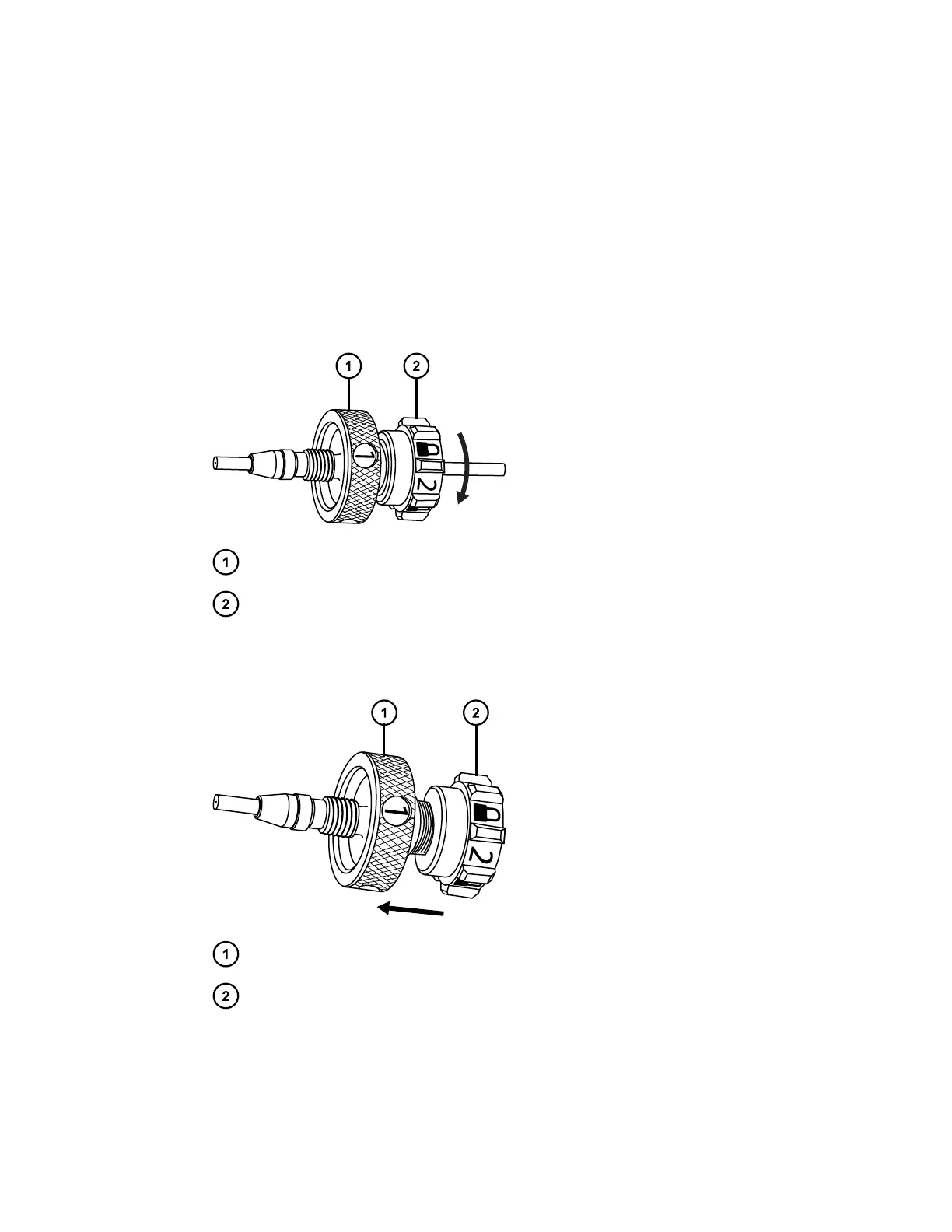

Figure 3–15: Unscrewing cap nut from fitting
#1 knurled compression fitting
#2 locking cap nut
2. Slide the #1 knurled compression fitting off the tubing.
Figure 3–16: Sliding fitting off tubing
#1 knurled compression fitting
Tubing
Note: If the assembly contains a captive ferrule, the ferrule remains locked in the fitting.
3. If the assembly contains a captive ferrule, remove the ferrule from the fitting.
