Note: Not all functions may be available, those available will depend on your pump model.

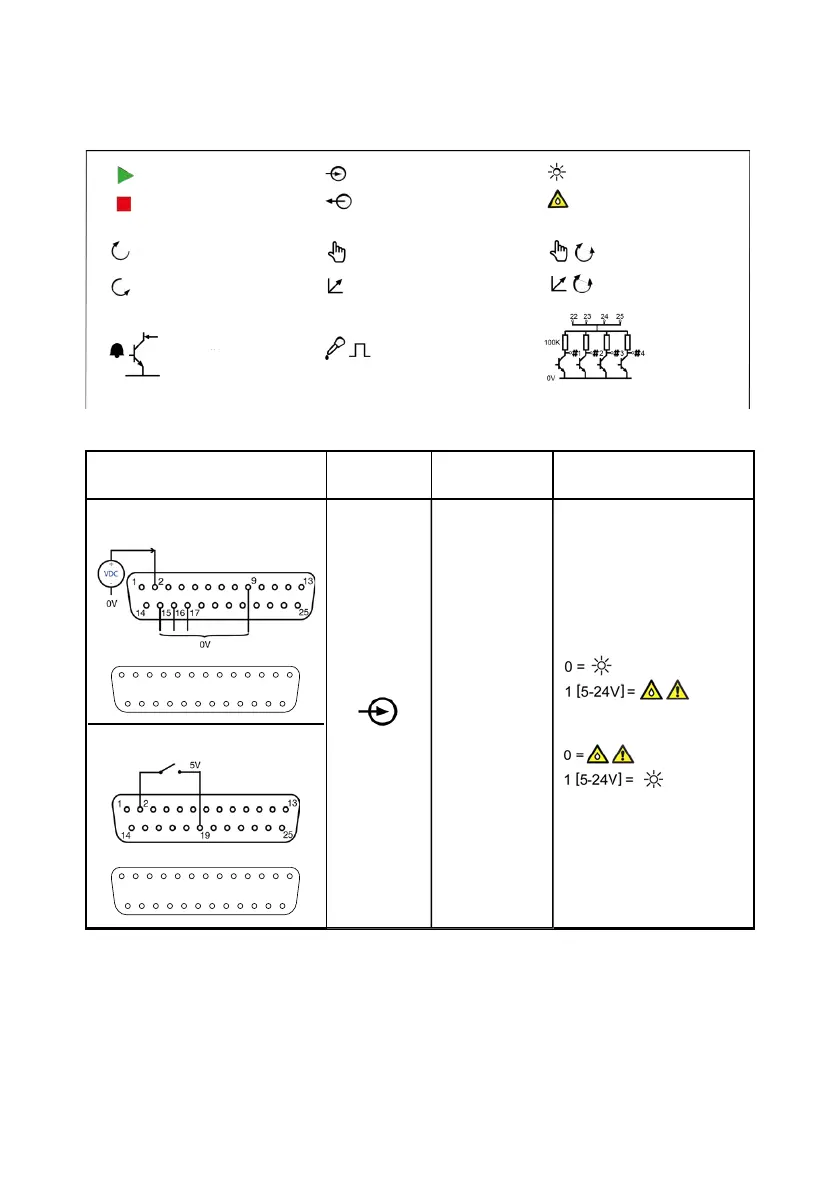

Key to symbols
RUN
STOP
CLOCKWISE ROTATION
ANTI-CLOCKWISE ROTATION
ALARM OUTPUT
(OPEN COLLECTOR TO GROUND)
INPUT
OUTPUT
MANUAL (KEYPAD) CONTROL
ANALOGUE (4-20mA/0-10V) CONTROL
START DOSE ON RISING EDGE
DRY (NO LEAK)
WET (LEAK DETECTED)
KEYPAD DIRECTION CHANGE
REMOTE DIRECTION CHANGE
ALARM PULL UP
RESISTOR COMMON
Wiring the upper D connector
Signal Name
Input or
output
Configurable Signal response
LEAK
LEAK
LEAK
Yes
Leak = high
Leak = low
