Watson-Marlow 730 U - Page 38

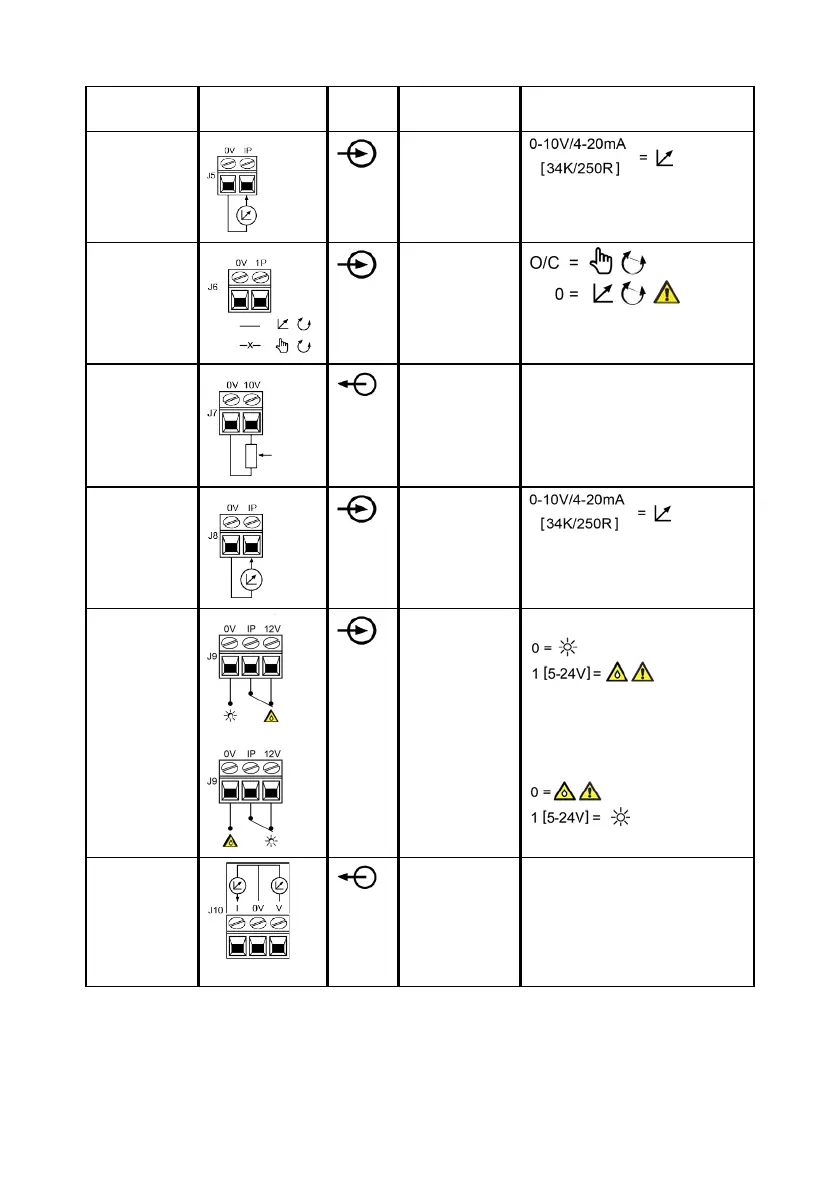

Connector No. Function Input or
Output
Configurable
Signal Response
J5
ANALOGUE 1
Yes
J6
DIRECTION EN
No
J7
REMOTE POT
No 10V 10mA Max
J8
ANALOGUE 2
Yes
J9
LEAK DETECT
LEAK DETECT
Yes
Leak = high
Leak = low
J10
TACHO O/P
No 0-10V
4-20mA
