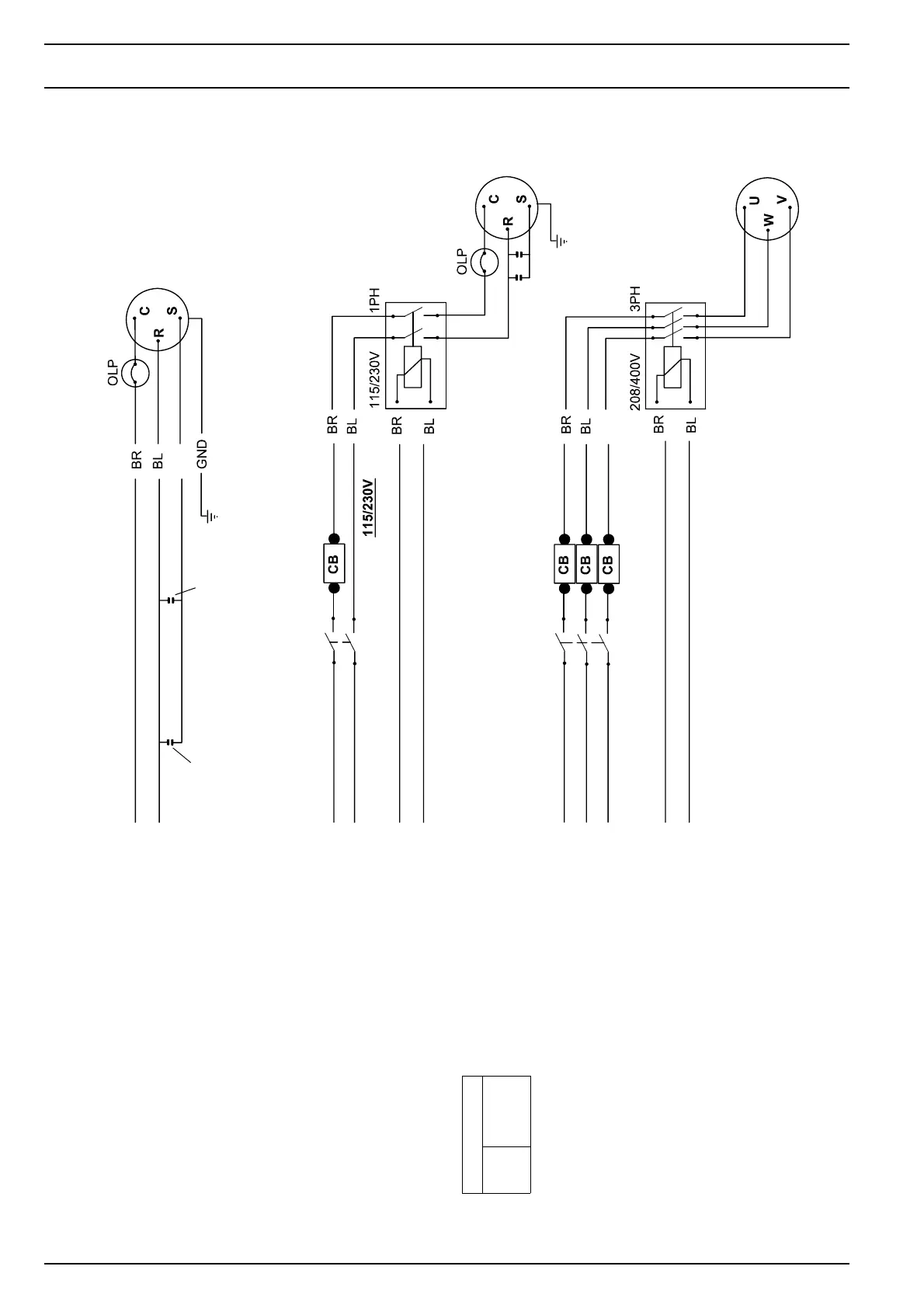

Electrical diagrams
30
8.6 Premium, compressors
SW
SW
Compressor 115/230V 1PH
Compressor 115/230V 1PH
Compressor 208/400V 3PH
AC Switch Board
AC Switch Board
TECC Comp Outlet
Main AC
TECC Comp Outlet
Main AC
TECC Comp Outlet
Start Capacitor
Run Capacitor
Cable colours
bl
br
sw
blue
brown
black
