Webasto BlueCool Classic User Manual

Electrical diagrams
31

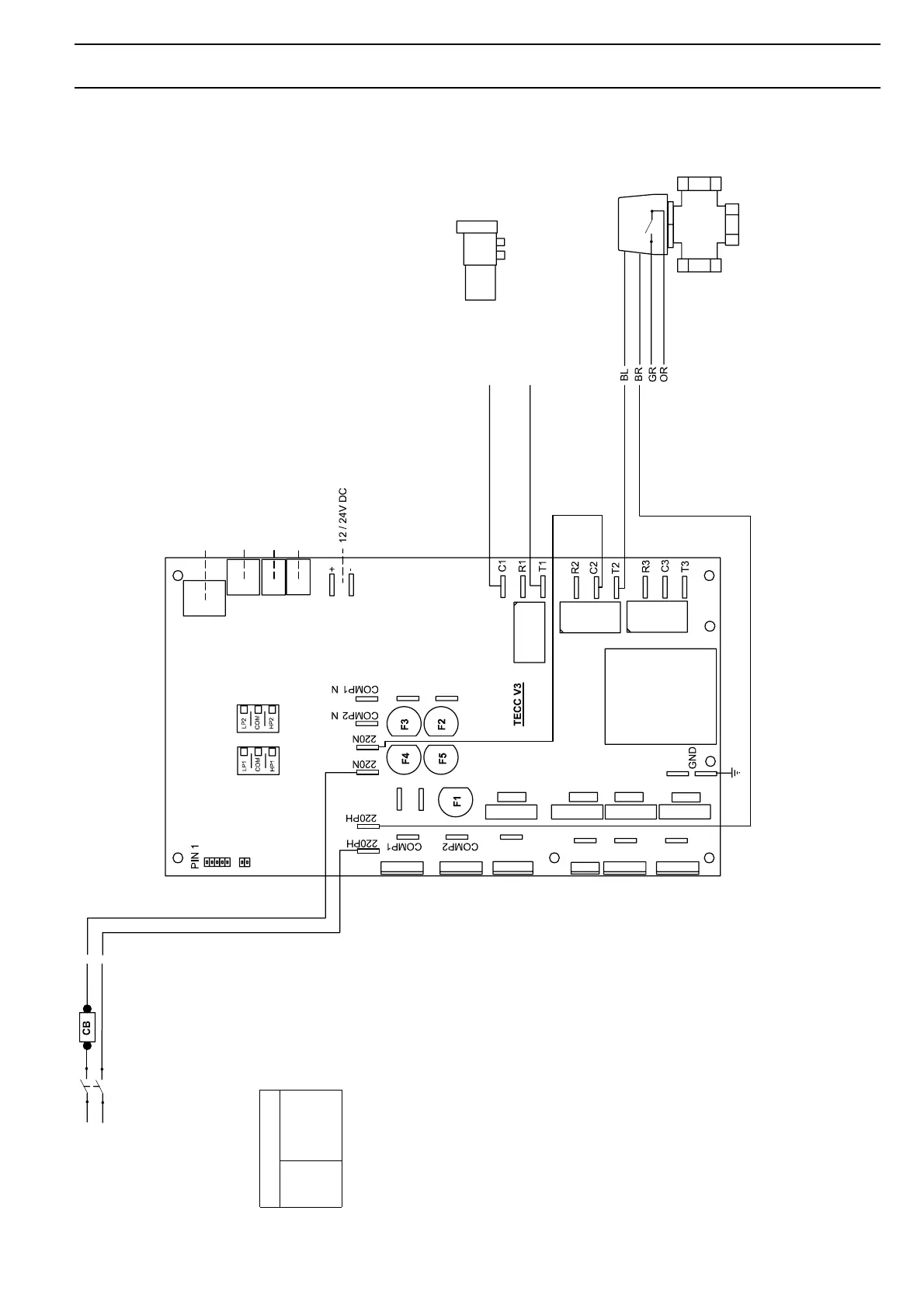

8.7 Premium TECC V3 with external heater
Fuses: F1 PCB 315mA (115V 630mA) F2 fan 6.3A F3 valve 3.15A F4 pump 1 SW 3.15A F5 pump 2 CW 3.15A
Cable colours
bl br gr or
blue brown grey orange
115/230V AC switch board
Display
External air temp. sensor Chilled water temp. sensor
fan
valve
pump 2
pump 1
fan N
valve N
pump 1 N
pump 2 N
Not used
External heater control
Danfoss 3-way valve 230V cool / ext. heater
IMPORTANT For external heater operation set TECC controller at F-04, setpoint 15 °C 2-00 and 29 °C 9-03.
