Webasto BlueCool Classic

BlueCool Unit Performance Report
53

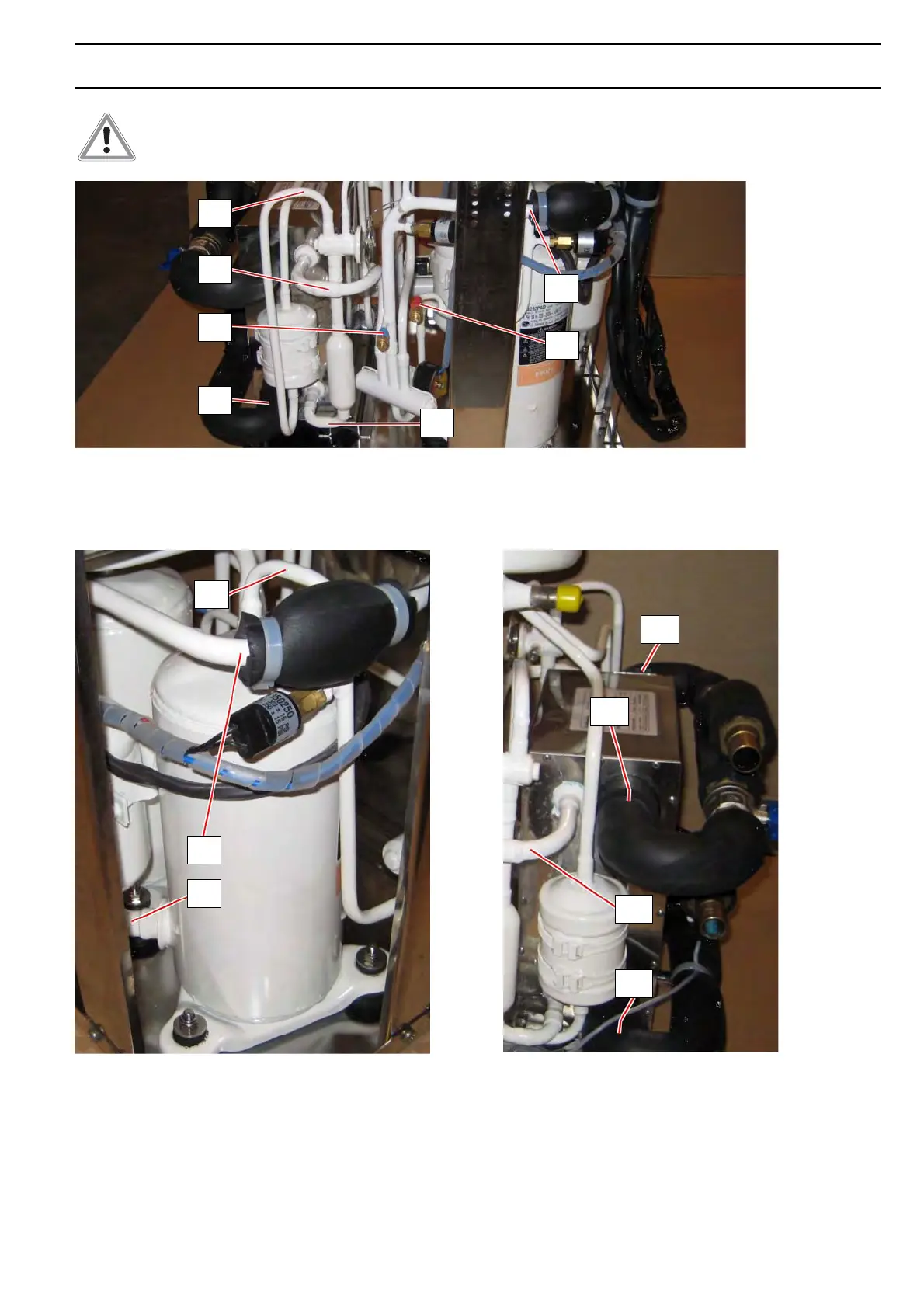

For proper measurement of temperature at point 13 and 14, the tubular insulation has to be removed
or pushed aside.
6
8
10
14
7
9a
12
6. Temperature liquid circuit II
7. Temperature evaporator inlet circuit II
8. Temperature evaporator outlet circuit II
9a. Temperature bulb expansion valve circuit II
10. Pressure suction circuit II
12. Pressure discharge circuit II
14. Temperature chilled water outlet circuit II
9
11
9a
12
9. Temperature suction circuit I
9a. Temperature bulb expansion valve circuit I
11. Temperature discharge circuit I
8-I. Temperature evaporator outlet
circuit I
13-I. Temperature chilled water inlet
circuit I
13-II. Temperature chilled water inlet
circuit II
14-I. Temperature chilled water outlet
circuit I
14-I
9a
8-I
13-I
13-II
