DBW 2010 / 2016
7
Circuit Diagrams
703

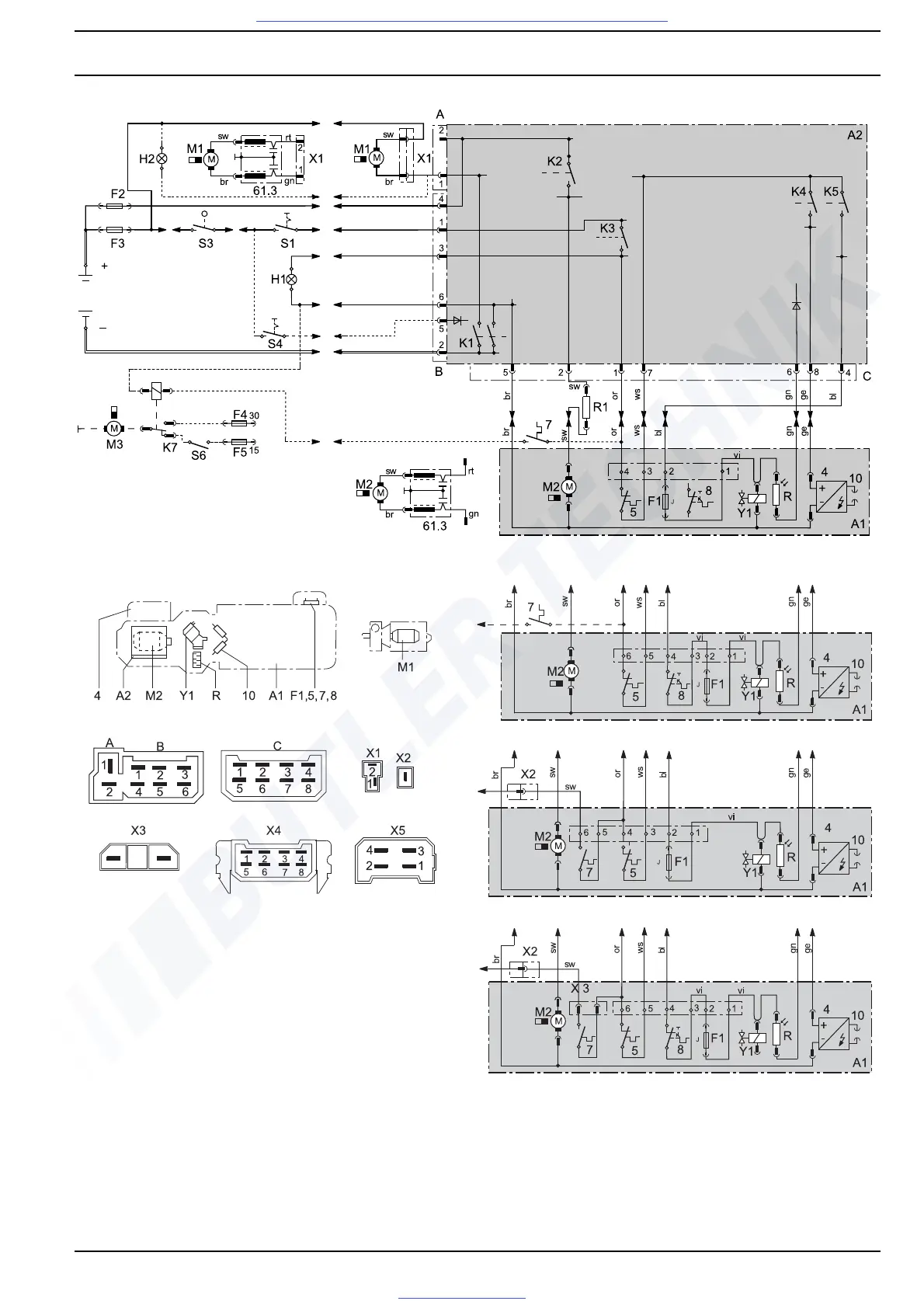

Fig. 702 System wiring diagram DBW 20
16 with 1553 control unit and switch, 24 V
V
ersion with thermal fuse only
V
ersion with temperature limiter and thermal fuse
V
ersion with thermal fuse and fan thermostat
V
ersion with thermal fuse, temperature limiter an
d fan thermostat
