Webasto DBW 2016 - Fig. 909 Replacing Control Unit; Fig. 910 Replacing Burner Head

DBW 2010 / 2016 9Repair
912

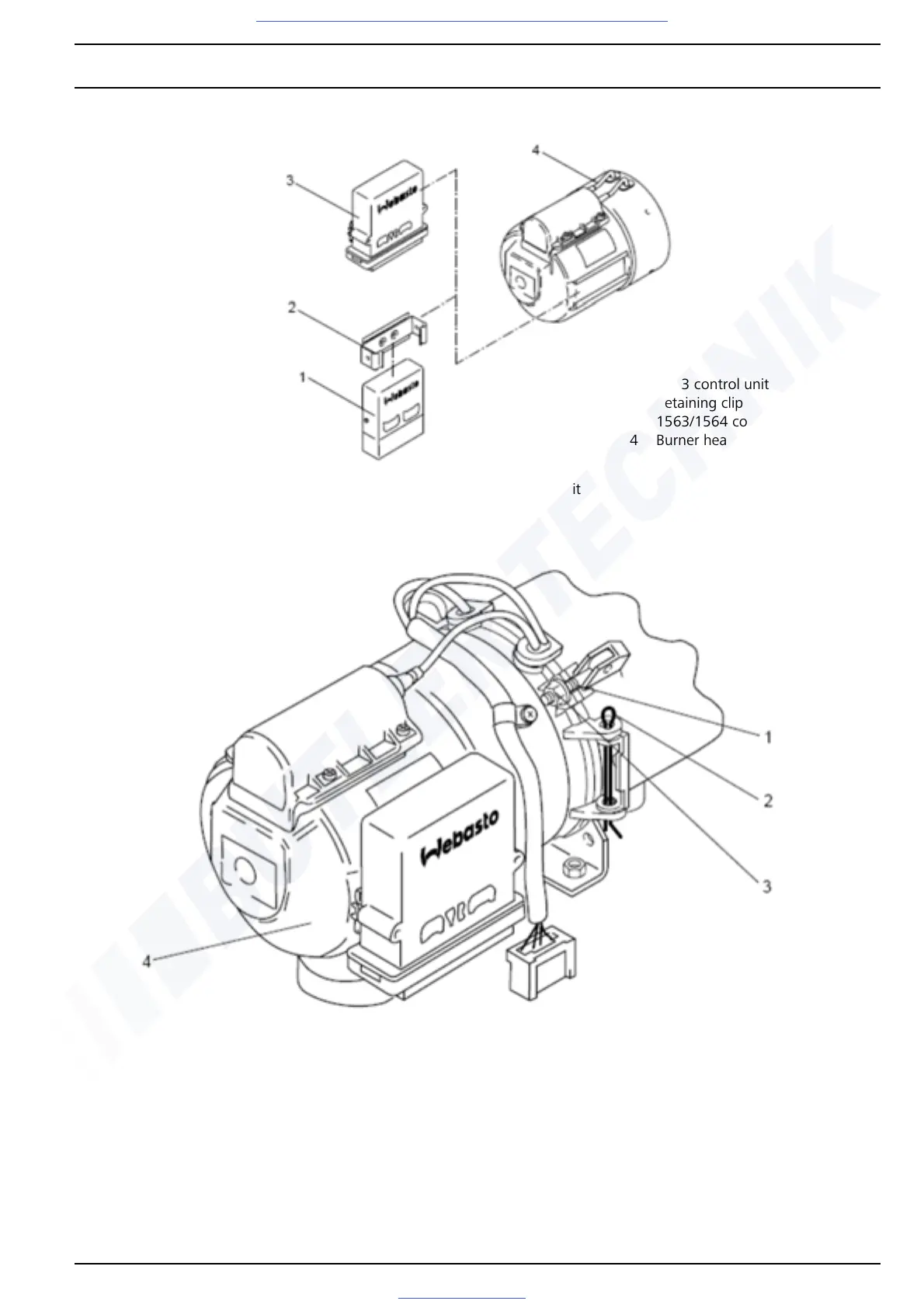

Fig. 909 Replacing control unit
1 1553 control unit
2 Retaining clip
3 1563/1564 control unit
4Burner head
Fig. 910 Replacing burner head
1Screw (2)
2 Cotter pin
3 Nut (2)
4 Burner head
NOTE
• The cotter pin can be positioned on the other side in
accordance with the swinging direction of the burner
head.
• The burner head of the DBW 2010 heaters is shown
here.
