Webasto DBW 2016 - Fig. 908 Replacing Temperature Limiter, Temperature Sensor, Thermal Fuse, Fusible Link and Control Thermostat

DBW 2010 / 2016 9Repair
910

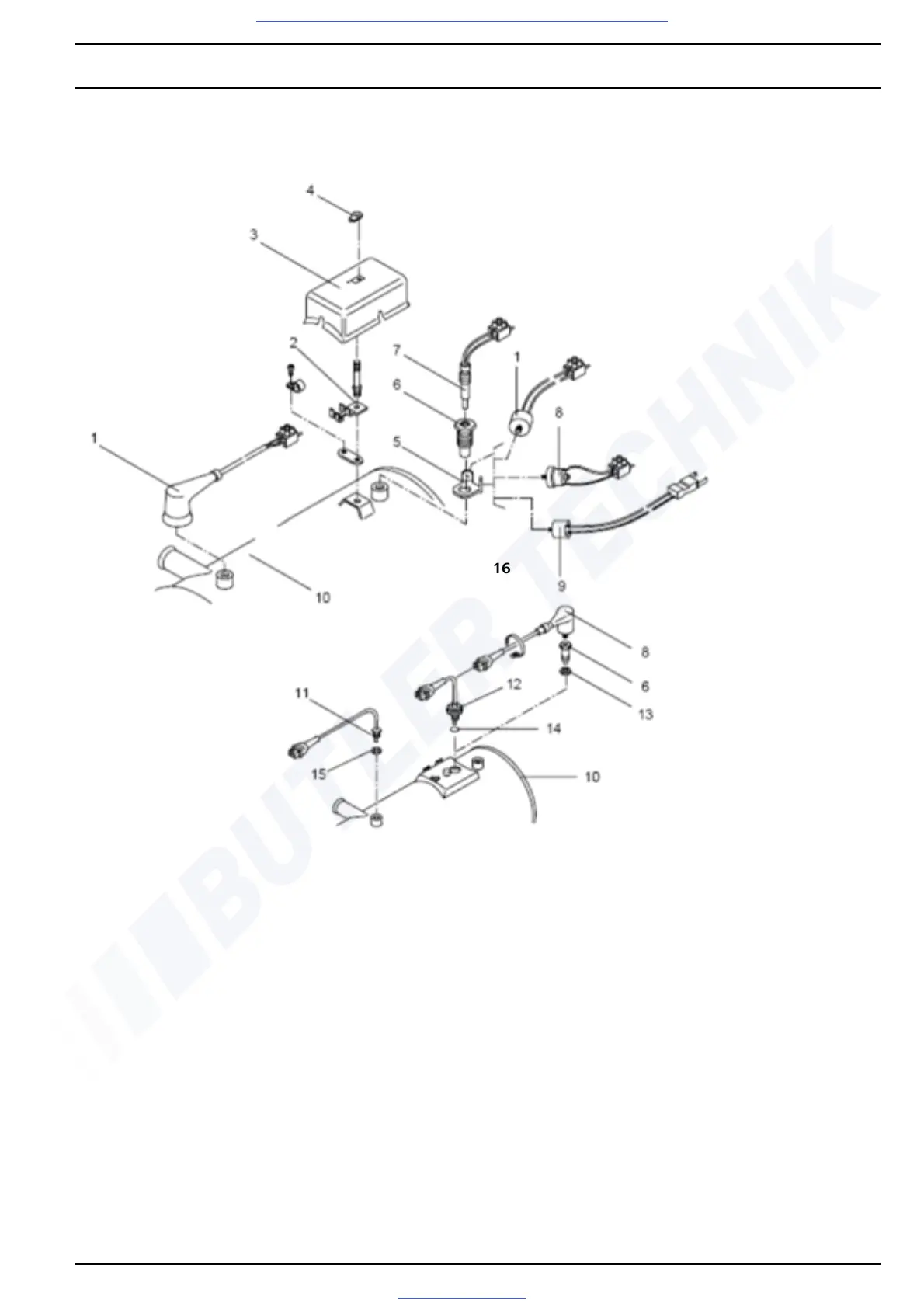

Fig. 908 Replacing temperature limiter, temperature sensor, thermal fuse, fusible link and control thermostat
1 Control thermostat
2 Terminal block
3 Protective cap
4Nut
5Angle bracket
6Screw plug
7 Thermal fusible link
8 Temperature limiter
9 Fan thermostat
10 Heat exchanger
11 Temperature sensor
12 Thermal fuse
13 Sealing ring
14 “O” ring
15 Sealing ring
DBW 2010
DBW 2010 / DBW 2016
