Webasto DBW 2016 - Fig. 913 Replacing Thermostat of Nozzle Holder Pre-Heating Unit; Fig. 914 Replacing Solenoid Valve

9Repair DBW 2010 / 2016
917

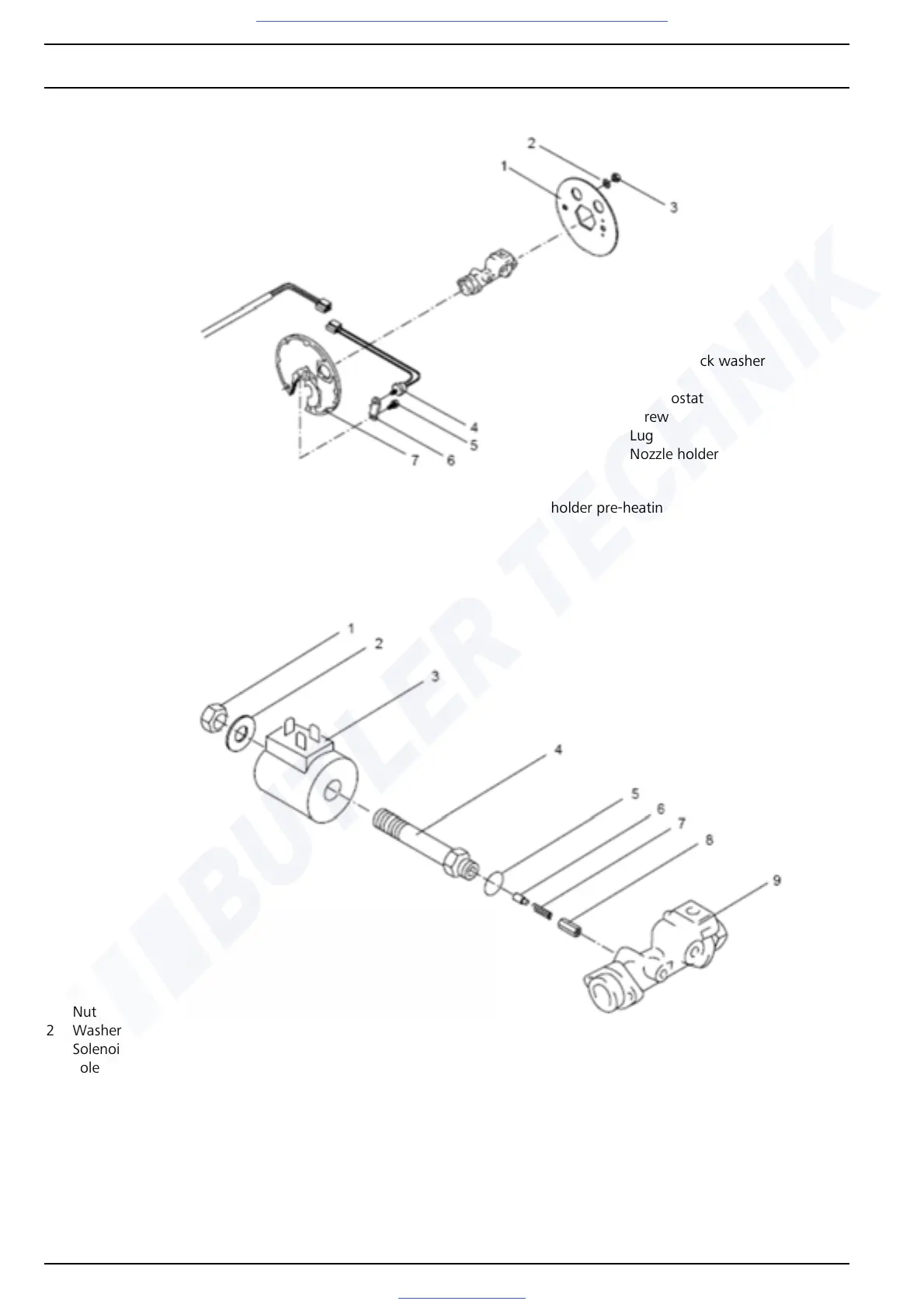

Fig. 913 Replacing thermostat of nozzle holder pre-heating unit
Fig. 914 Replacing solenoid valve
1Disc
2 Serrated lock washer
3Nut
4 Thermostat
5Screw
6Lug
7 Nozzle holder plate
DBW 2010 / DBW 2016
1Nut
2Washer
3 Solenoid valve head
4 Solenoid valve body
5“O” ring
6Pin
7Spring
8Bolt
9 Nozzle holder
