Page 14 of 40 Webasto Charging Systems, Inc.
Intelligent Fast-Charging System GSE Installation Guide for the DVS300/330/400 and MVS330/400
31504-76-0101

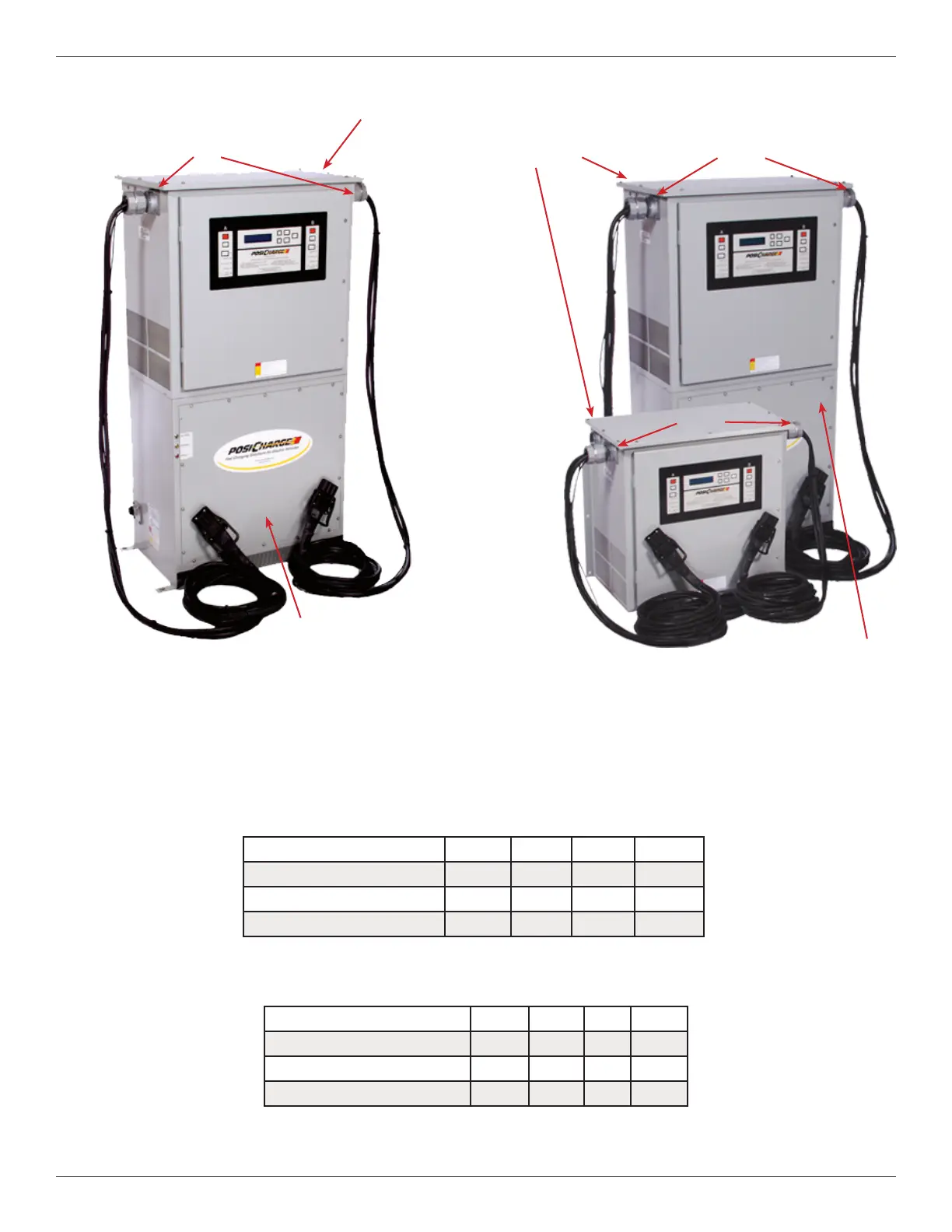

Figure 1 DVS300/330/400 Figure 2 MVS330/400
Charger
power
station
Ports
Power server
Charger
power
stations Ports
Ports
Power server
Component Height Width Depth Weight
DVS 300/330/400 60″ 32.4″ 21.9″ 905 lbs
Power station 30.0″ 30.0″ 19.0″ 304 lbs
Power station on a stand 60.0″ 30.0″ 21.0″ 363 lbs
3.2. Specications
3.2.1. Physical Characteristics of GSE
3.2.2. Clearance Requirements for GSE
Component Front Back Left Right
DVS 300/330/400 36″ 6″ 8″ 8″
Power station 36″ 1″ 6″ 6″
Power station on a stand 36″ 6″ 6″ 6″
