4.3. Power Station Mounting to a Wall
4.3.1. Each power station has the wall mounting back plate installed on the back side. Figure 8 shows how
to mount the plate to a wall.

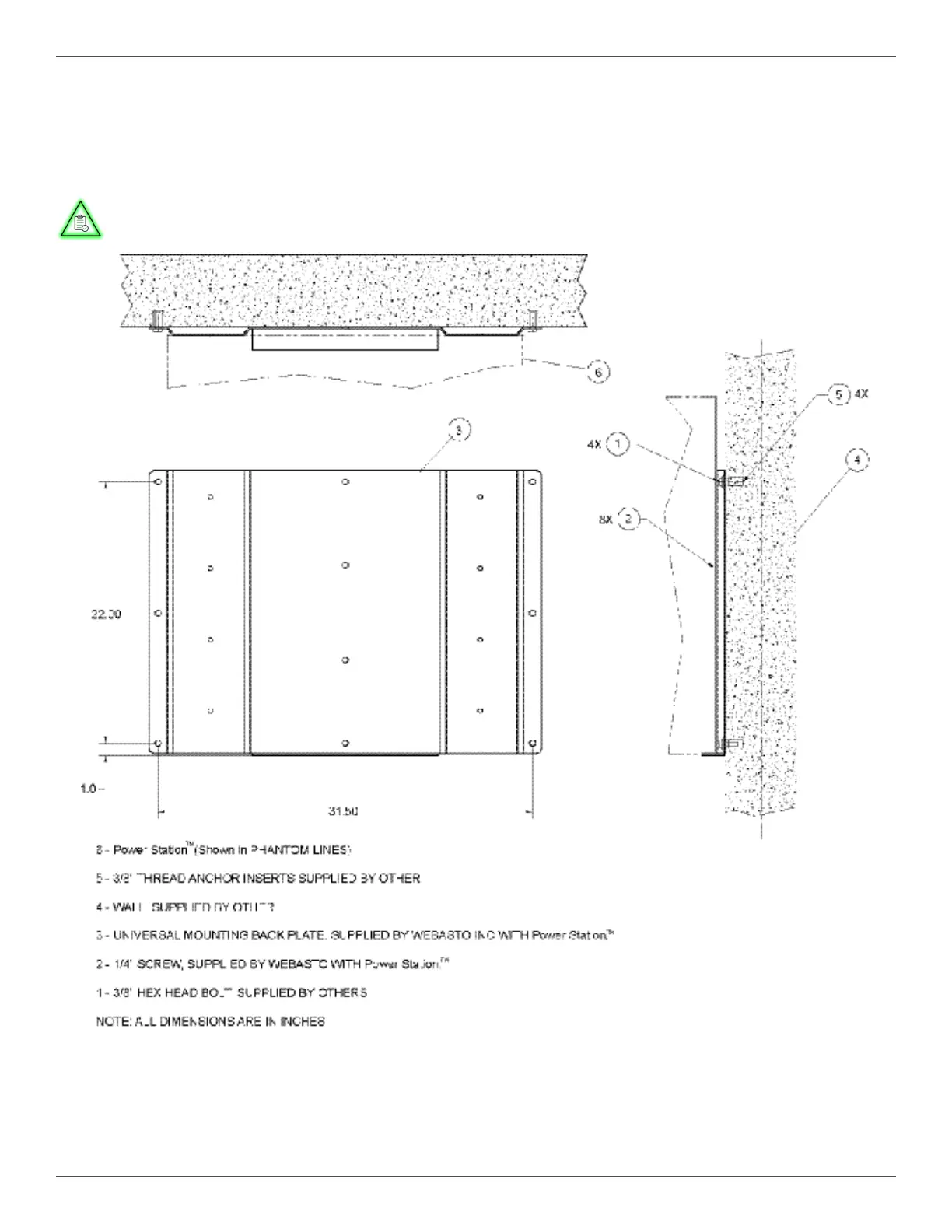

Figure 8 Power Station Wall Mounting Back Plate
The manufacturer does not supply all of the external mounting hardware.
User-supplied hardware may be needed to complete the installation.
