Page 15 of 40 Webasto Charging Systems, Inc.
Intelligent Fast-Charging System GSE Installation Guide for the DVS300/330/400 and MVS330/400
31504-76-0101
3.2.3. DVS300/330/400

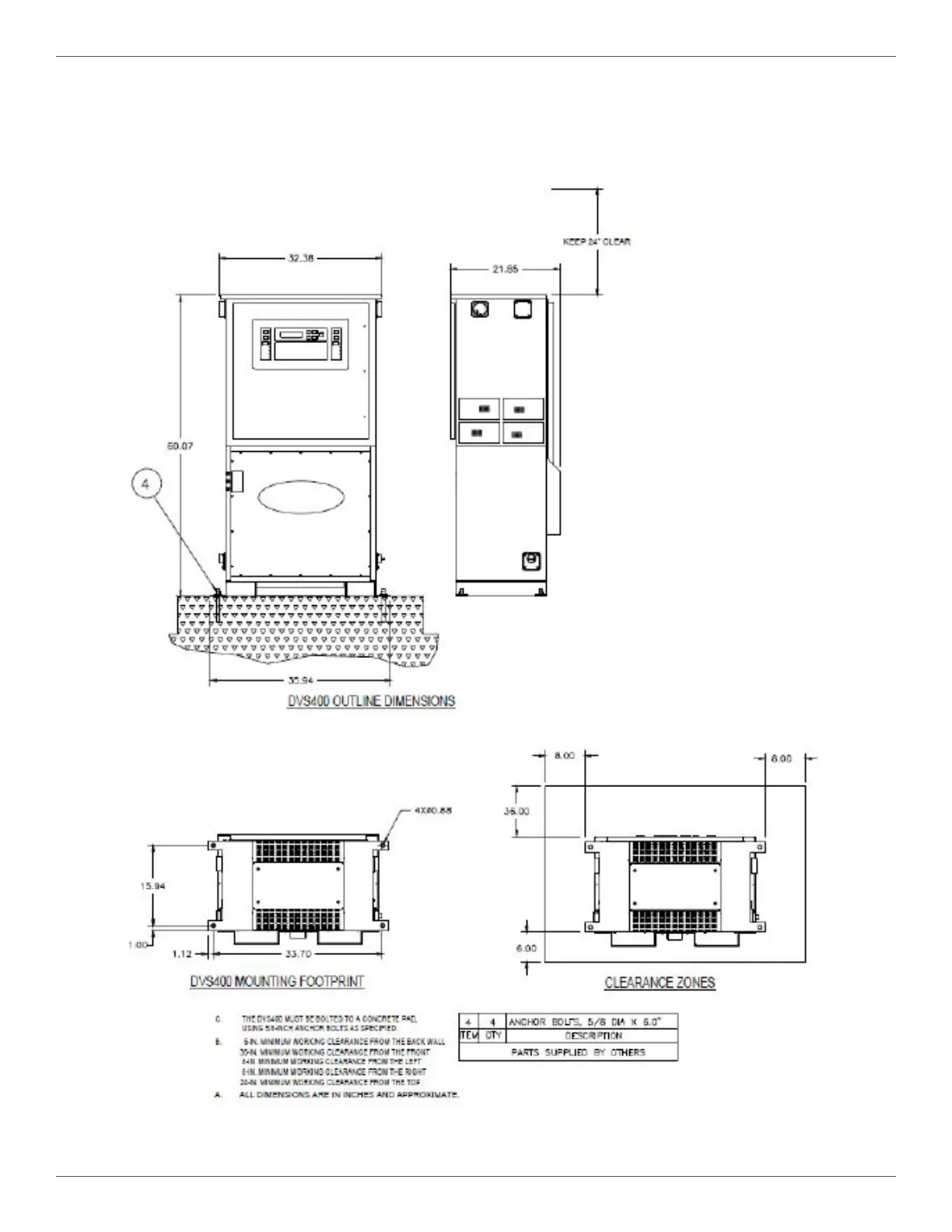

Figure 3 illustrates the physical characteristics of, and clearance requirements for, the DVS300/330/400.
Figure 3 DVS300/330/400 Dimensions and Installation
