Intelligent Fast-Charging System GSE Installation Guide for the DVS300/330/400 and MVS330/400
31504-76-0101

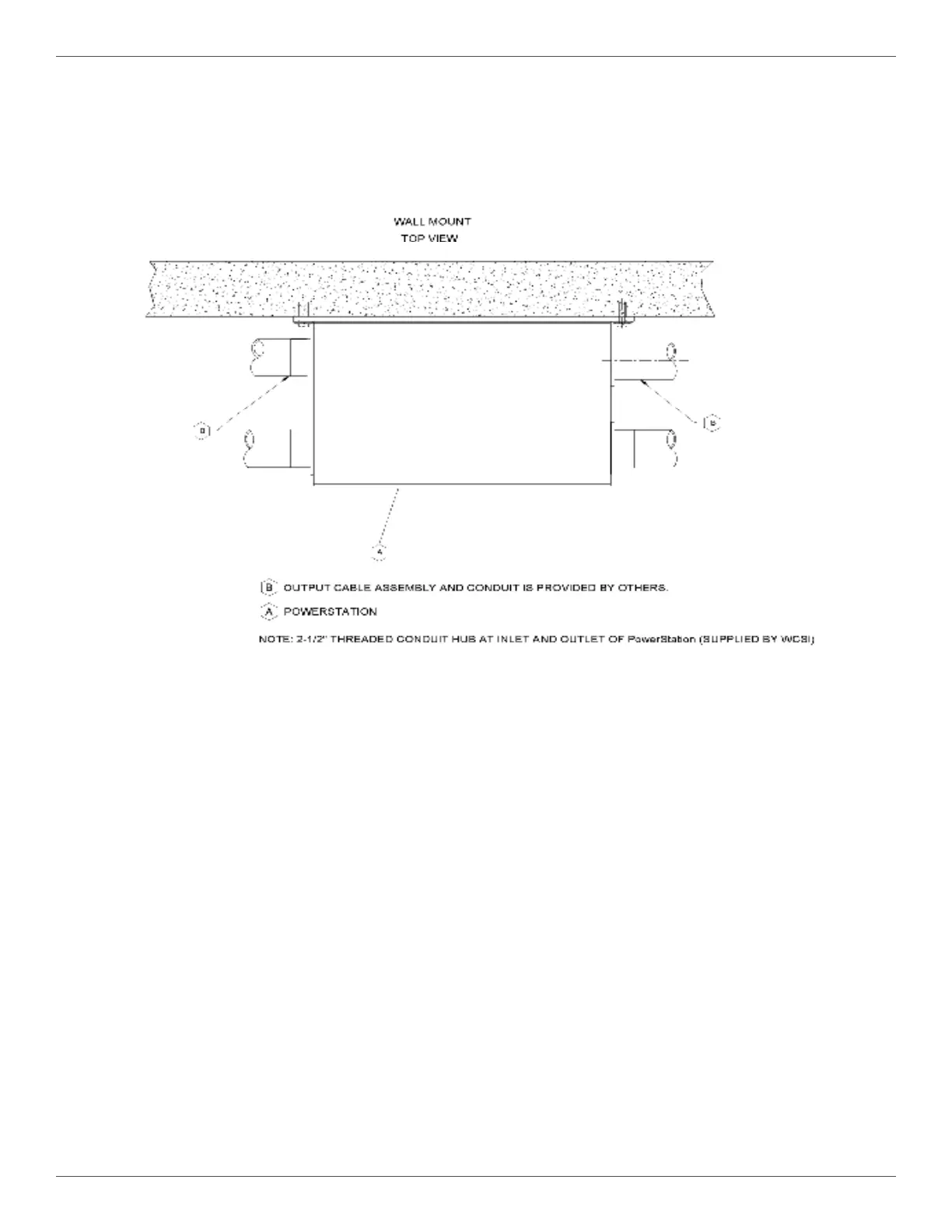

Figure 7 Power Station Installation Connection Wiring, Top View
4.2. Power Station
4.2.1. The conduit size is 2½″ for all DC output connections, for which 2½-inch threaded hubs are
provided. (See Figure 7 [B] for conduit entry locations.)
