Webasto Ford Focus - Preparing Installation Location

18
Ford Focus / Focus C-MAX / Focus CC

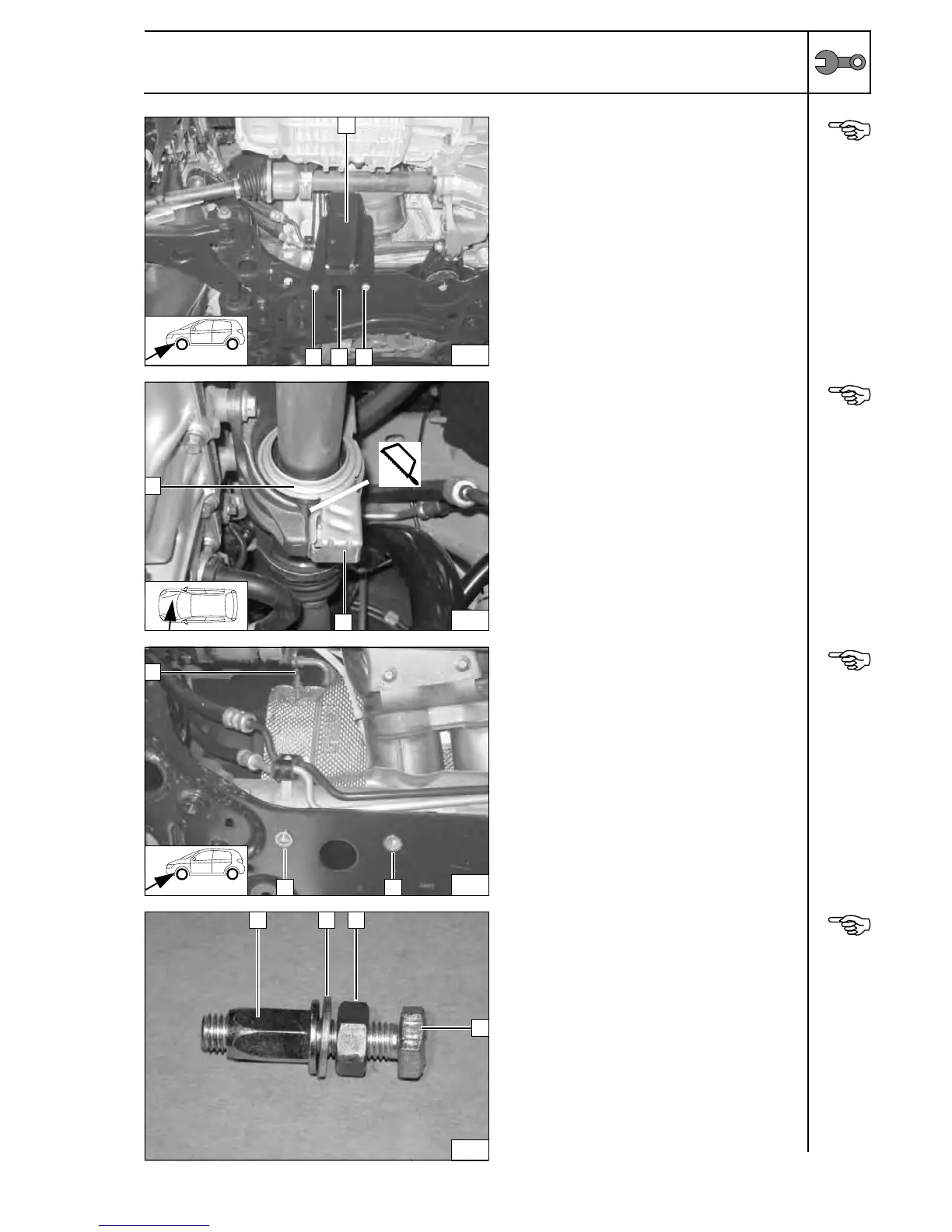

Preparing installation location
Cross member is dependent on vehicle
equipment!
1 Cross member
2 M10 bolts [3x]
Removing
cross
member
Design of guard plate (2) is dependent on
vehicle equipment!
1 Remove section and discard
Adapting
guard
plate
If threaded inserts are not present at position
(1), then mount M10 rivet nuts provided in
hexagon holes.
Use special tool as shown on Page 3.
For alternative, see next illustration.
1 M10 steel rivet nut [2x]
2 Stud bolt
Installing
rivet nut
1
M10 rivet nut (steel)
2 Washer
3 M10 nut
4 M10 bolt
Alterna-
tive rivet-
down tool
30
1
2 2 2
31
1
2
32
1 1
2
33
4
1 2 3
