26
Ford Focus / Focus C-MAX / Focus CC

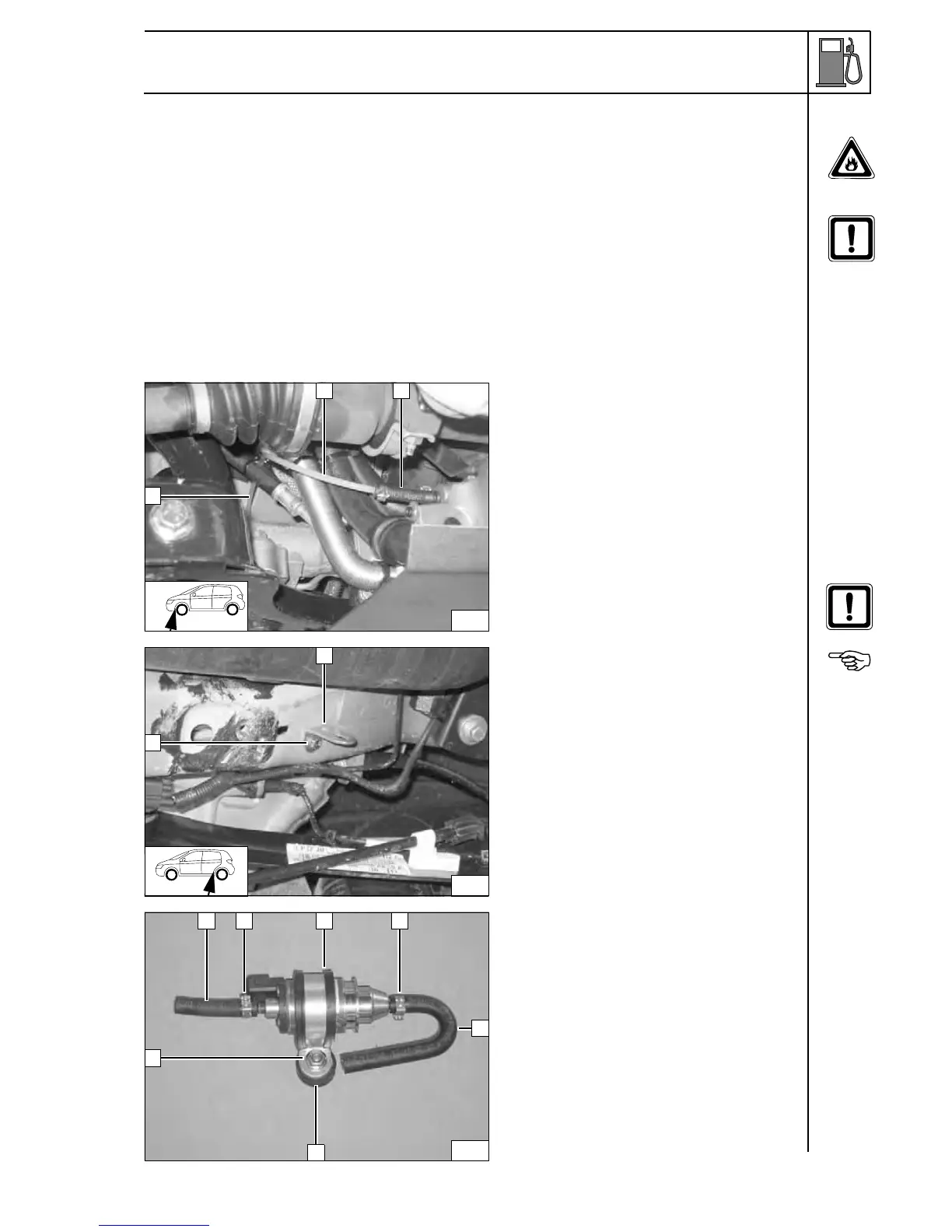

Fuel Connection
CAUTION!
Open the vehicle's fuel tank cap, ventilate the tank and then re-close the tank lock.
Catch any fuel running off with an appropriate container.
Install fuel line and metering-pump wiring harness so that they are protected against stone impact.
Unless specified otherwise, always fasten using cable ties.
Mount the fuel line and wiring harness with rub protection on sharp edges.
WARNING!
The fuel line and wiring harness are routed to the metering pump in as shown in the wiring
harness routing diagram.
1 Mecanyl fuel line
2 10 mm dia. Caillau clamp
Route mecanyl fuel line to firewall and fasten
with cable ties as shown. Pay particular
attention to sufficient distance to propeller
shaft!
Connec-
tion on
heater unit
Installation location on right next to vehicle
fuel tank.
1 Angle bracket
2 M6x20 bolt, spring lockwasher on existing
thread insert
Installa-
tion loca-
tion of
metering
pump
1
Hose section
2 10 mm dia. Caillau clamp [2x]
4 180° molded hose
3 Rubber-coated pipe clamp
5 Silentblock
6 Flanged nut
Premount-
ing meter-
ing pump
50
1 2
1
51
1
2
52
4
2 3
5
2
6
1
