27
Ford Focus / Focus C-MAX / Focus CC

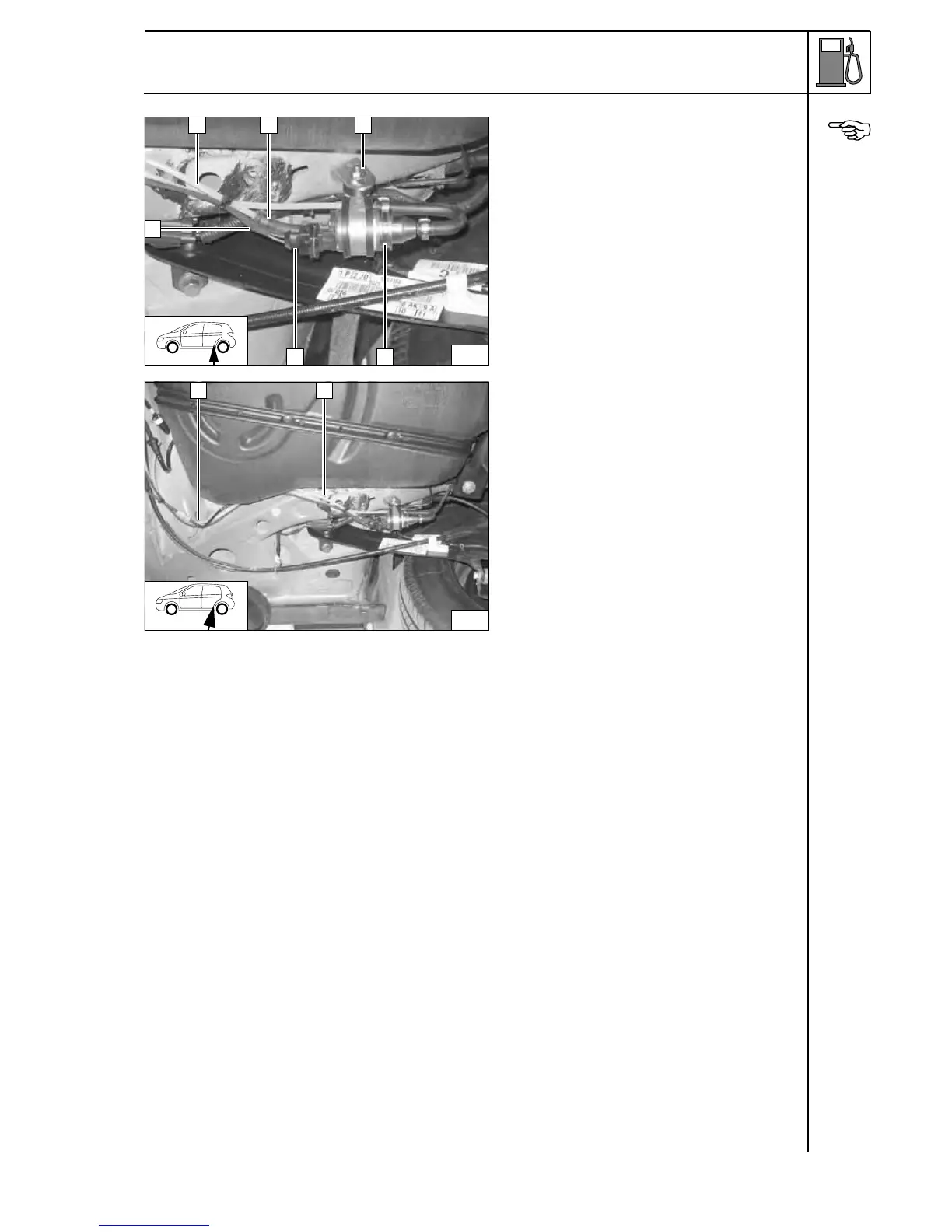

Slide metering pump as far as possible
upward in oblong hole.
Route fuel line and wiring harness as shown
in following illustration.
Fuel line to heater unit on pressure side of
metering pump [side with connector].
4 Premounted metering pump
3 Flanged nut
1 Mecanyl fuel line
2 10 mm dia. Caillau clamp
6 Metering pump wiring harness
5 Completed connector housing
Installing
metering
pump
1
Mecanyl fuel pipe and metering pump
cable harness
Wiring
routing
53
1
5
32
6
4
54
11
