Ford Focus / Focus C-MAX / Focus CC

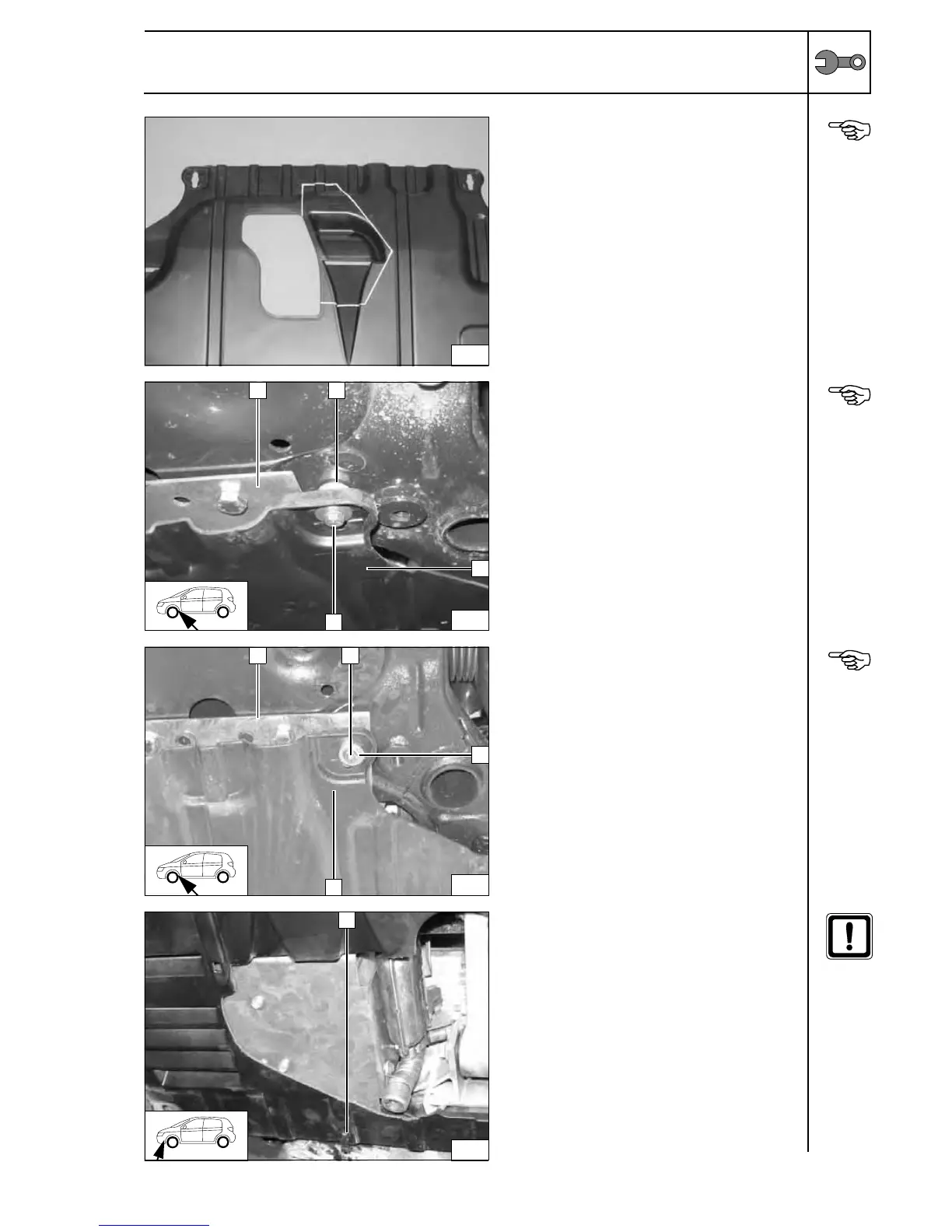

Mounting underride protection
For all vehicles!
Underride protection is dependent on vehicle
equipment!
Cut out underride protection as shown.
Cutting
out
underride
protection
Only for 1.4 liter; 1.6 liter; 1.8 liter engine!
Remove plastic threaded insert.
Drill out hole to 9 mm dia. and insert M6 rivet
nut.
1 Bracket of heater unit
2 M6 rivet nut, 10 mm shim
3 Underride protection
4 M6x40 bolt, spring lockwasher, large
diameter washer
Installing
underride
protection
for 1.4
liter;
1.6 liter;
1.8 liter
engine
Only for 2.0 liter engine!
1
Bracket of heater unit
2 Premounted bolt
4 Underride protection
3 M6 flanged nut, large diameter washer
Installing
underride
protection
for 2.0 liter
engine
For all vehicles!
Photo shows 1.8 liter
Check positioning of underride protection! In
particular, ensure sufficient distance to
heater-unit exhaust system! Rework cut-out if
necessary.
Also fasten underride protection for
stabilization with cable ties at position
(1).
Installing
underride
protection
for all
vehicles
59
60
1 2
4
3
61
1 2
4
3
62
1
