Ford Focus / Focus C-MAX / Focus CC

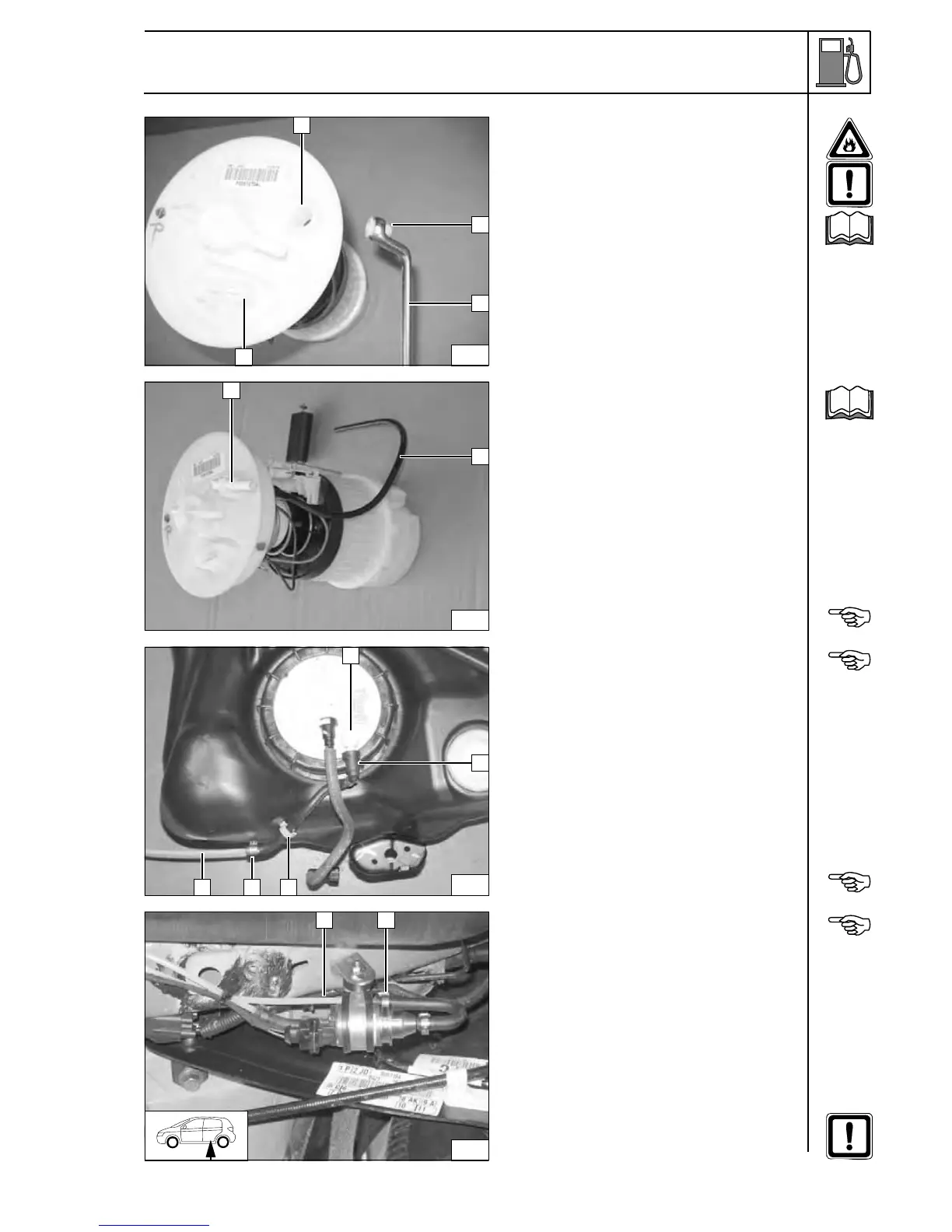

Removing fuel
Remove fuel-tank sending unit (4) in
accordance with manufacturer's
specifications.
Break out connection piece
(2) at rupture joint
(1) with suitable tool (3) according to
manufacturer's instructions.
Removing
fuel
Install fuel standpipe (Ford Order No. Finis
Code 1233999) according to manufacturer's
instructions.
1 Fuel standpipe
2 Removal hose
Align removal hose up to bottom of fuel tank.
Ensure freedom of movement of fuel gauge.
Installing
fuel
standpipe
Install fuel-tank sending unit according to
manufacturer's specifications.
Mount coupling and align; remove clip at
Position
3.
1 Fuel standpipe
2 Coupling piece, mounted on fuel standpipe
5 Mecanyl fuel line
4 10 mm dia. Caillau clamp
3 Clip
Reinstall fuel tank.
Connect-
ing fuel
line
Fuel line from fuel standpipe on intake side of
metering pump [side without connector].
1 Fuel line
2 10 mm dia. Caillau clamp
Check the position of the components; adjust
if necessary. Check that they have free
clearance.
Align fuel lines and wiring harness of
metering pump over entire length and secure
with cable ties
Connec-
tion to me-
tering
pump
55
3
1
2
4
i
56
1
2
i
57
1
2
34
5
58
1 2
