Webasto Ford Focus - Electrical Connection on Focus;Focus CC

8
Ford Focus / Focus C-MAX / Focus CC

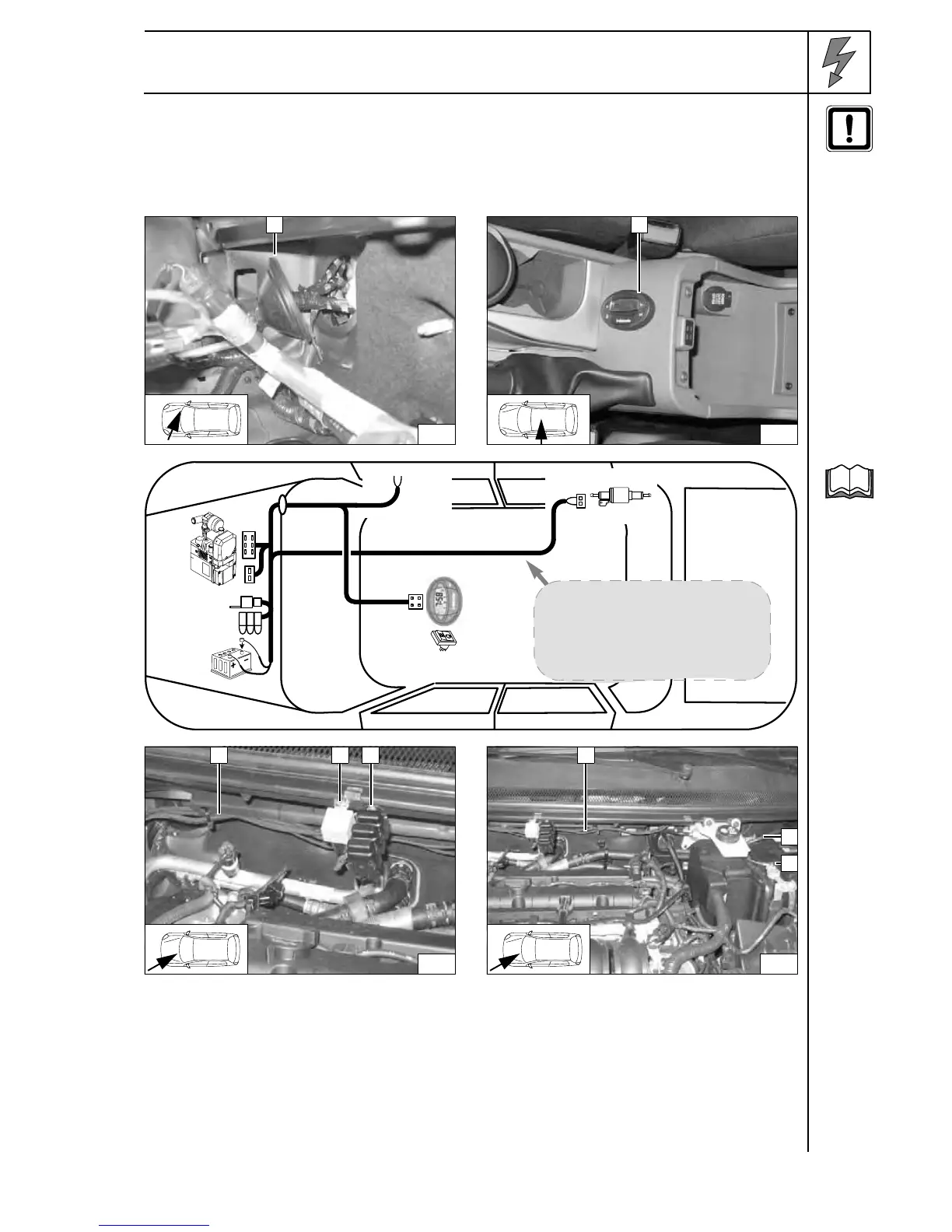

Electrical Connection on Focus/Focus CC from 2008
Wiring harness pass through
1
Protective rubber plug detached
Digital timer
1
Digital timer
Diagram
of wiring
harness
routing for
Focus
Fuse holder, relay K3
When drilling, watch components located behind!
2 K3 relay, 4 mm dia. hole, 5.5x13 self-tapping
screw
3 Fuse holder, 4 mm dia. hole, 5.5x13 mm self-
tapping screw
1 Wiring harnesses routed to right and fastened
with cable ties
Connection to battery
Route wires (1) to left and fasten with cable ties.
2 Ground wire on negative battery terminal
3 Positive wire on positive battery terminal
6
1
7
1
sw
rt
br
bl
Do not install the metering pump
cable harness until later together
with fuel pipe along the original
vehicle fuel lines on the
underbody
i
8
1 2 3
9
2
3
1
