23
Ford Focus / Focus C-MAX / Focus CC
Only for 2.0 liter engine

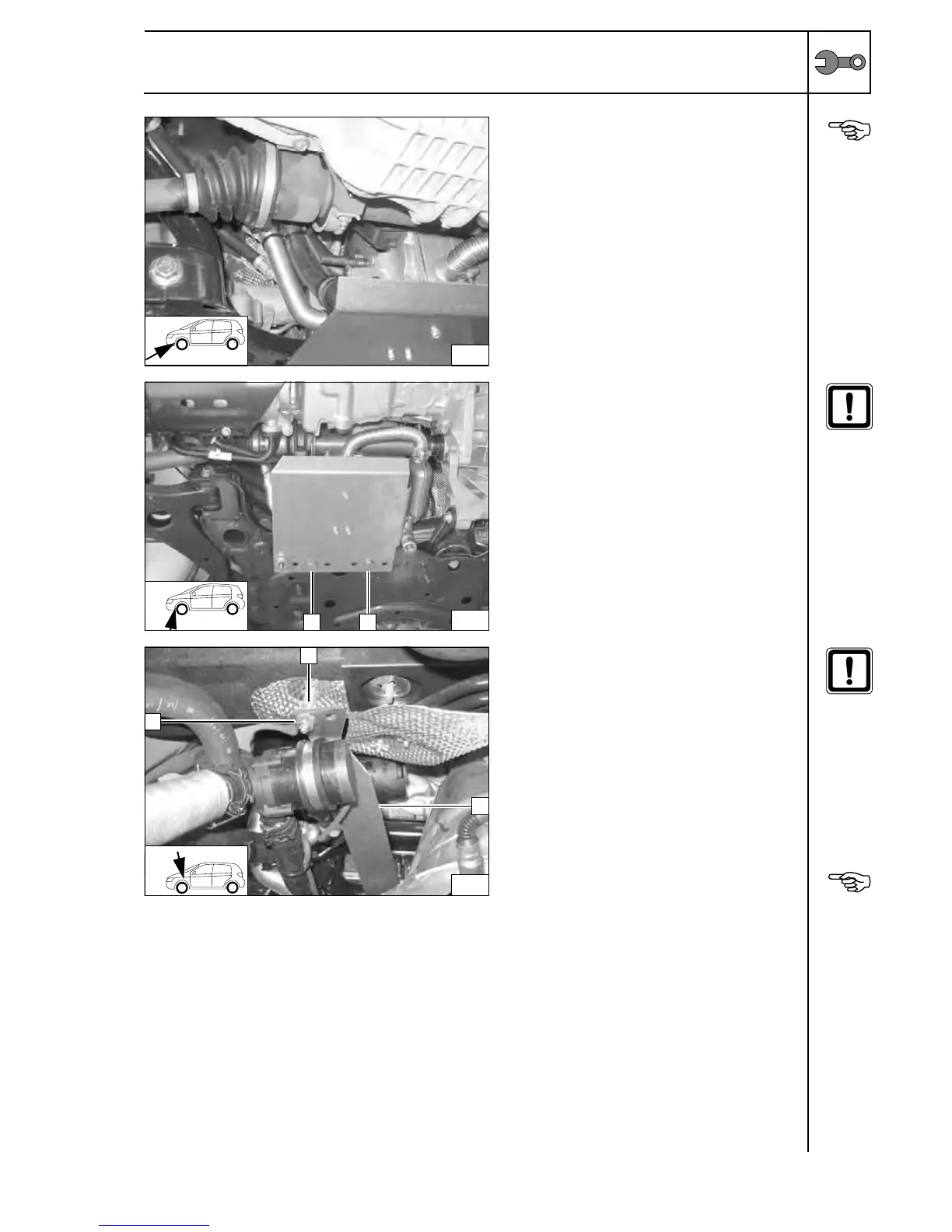

Guide heater unit to installation location and
connect wiring harness as shown.
Installing
heater unit
Use holes in bracket as shown.
Check position of all components and adjust
if necessary. Check that they have free
clearance.
1 M6x30 bolt, spring lockwasher [2x]
Installing
heater unit
Use hole in strut as shown.
Check position of all components and adjust
if necessary. Check that they have free
clearance.
1 M8 flanged nut (premounted)
3 Flanged nut
2 Strut
Tighten Ejot screw
(10 Nm).
Installing
heater unit
43
44
11
45
2
1
3
