Webasto Mazda 3 MPS - Page 14

1311472A
14
Mazda 3 MPS

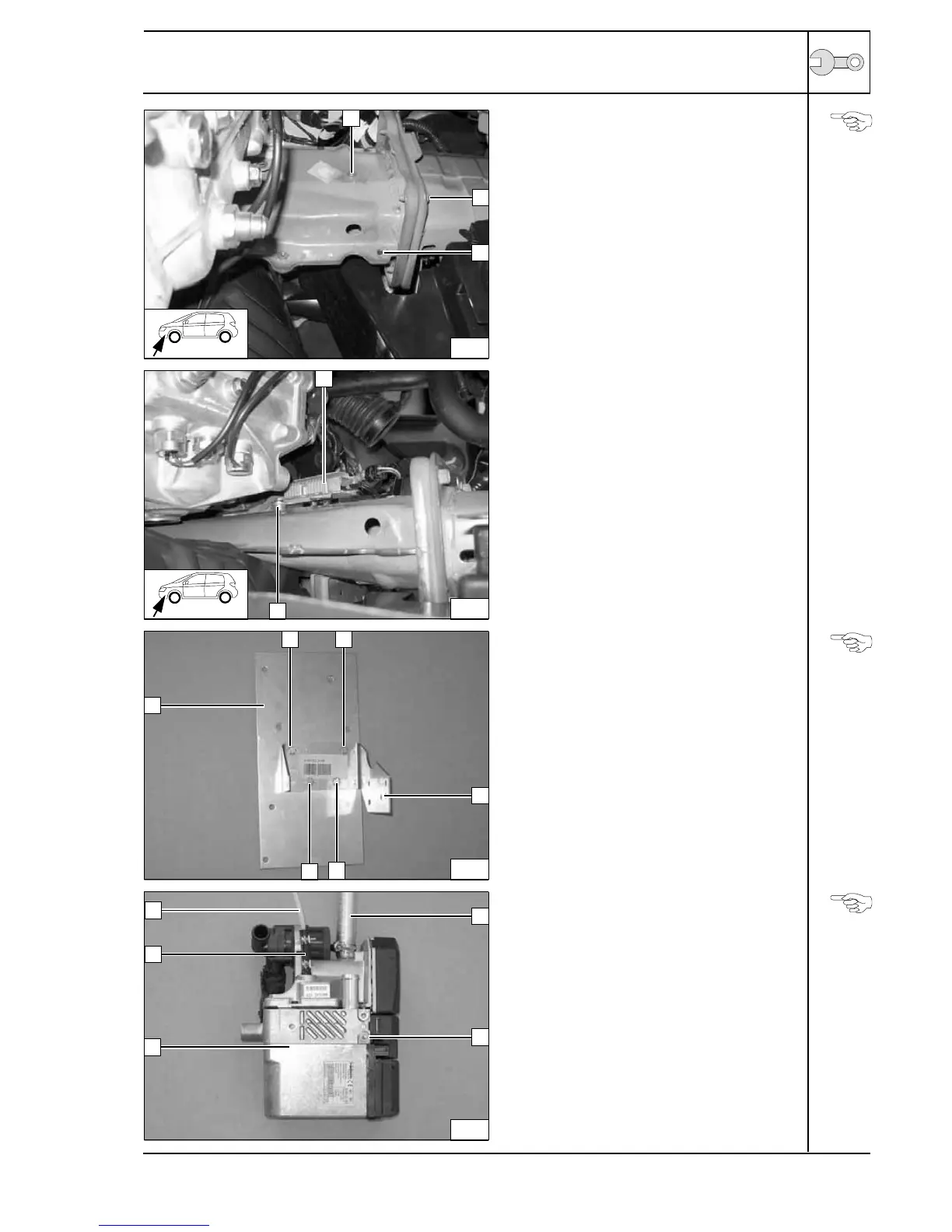

Remove original vehicle bolt 2, this will be
used again.
1 M6 rivet nut
3 Hole Ø 7mm
Tighten the
rivet nut;
remove the
screw
1 Blower resistance
2 M6x20 bolt, spring washer, body washer,
8mm spacer washer, original vehicle
threaded insert
Assemble
blower
resistor
Preassemble the bracket 3 with the bracket 2
according to the illustration.
1 M6x12 bolt [4x], flanged nut [4x]
Pre-
assemble
the bracket
Ejot screw bolt tightening torque 10 Nm!
1 Combustion air intake silencer, Ø27mm
hose clamp
2 Ejot stay bolts
3 Heater unit
4 Hose section, Ø 10 mm hose clamps [2x]
5 Fuel line
Preassem-
ble the
Heater Unit
21
3
1
2
22
1
2
23
1 1
1
2
3
1
24
1
2
3
5
4
