Mazda 3 MPS
1311472A
8

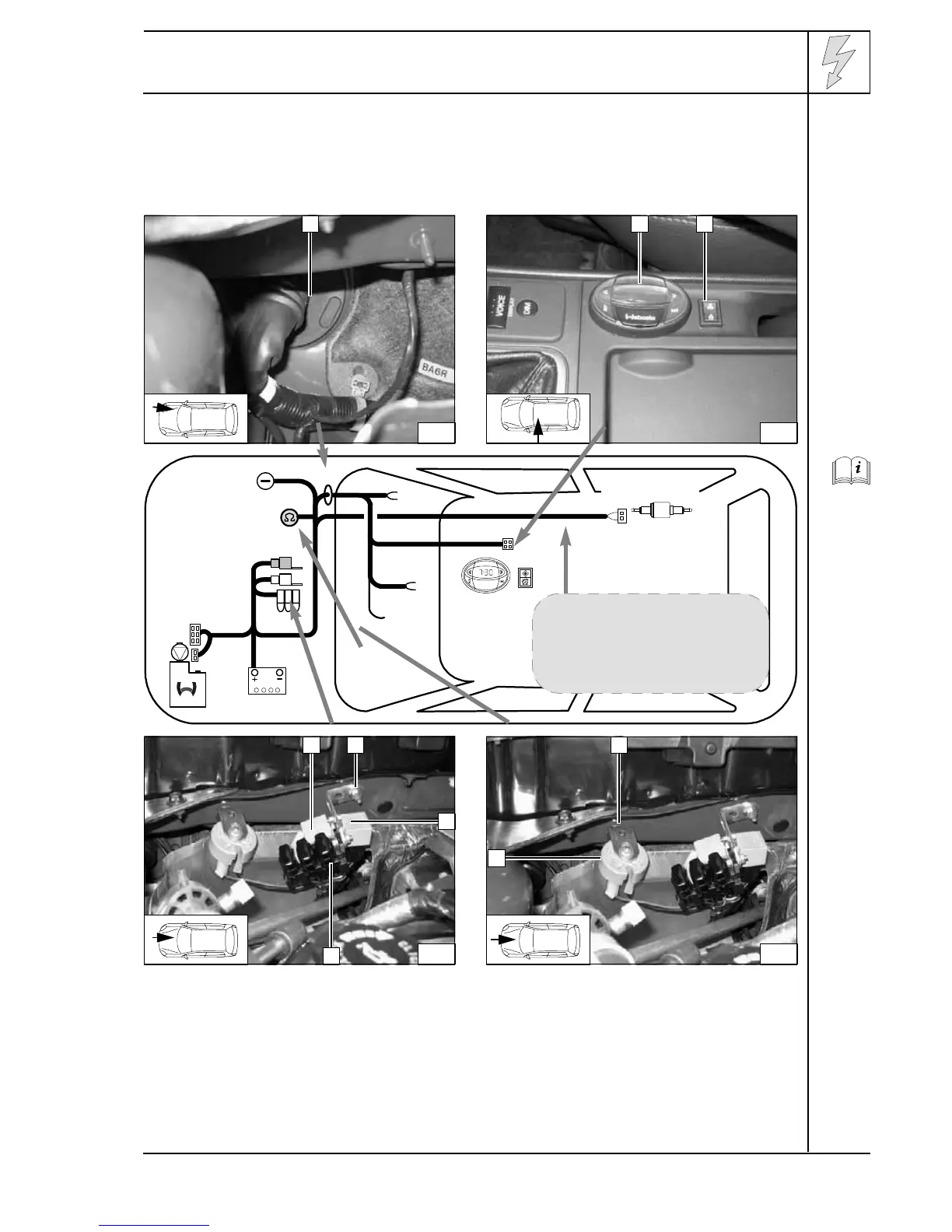

Electrical Connections
Cable harness feed-through
1 Protective rubber sleeve
Time switch and summer / winter switch
option
1 Time switch
2 Summer / winter switch
Cable
harness
installation
diagram
Fuse holder, K3 relay, K3.1 relay
1 K3 relay, M5x16 bolt, washers, M5 nut
2 Original vehicle stay bolts, fastening strap
bent according to the figure, M6 flanged nut
3 K3.1 relay fastened to the fastening strap
together with the K3 relay.
4 Fuse holder, M5x16 bolt, nut
Run the cables behind the thermal protection
panels.
0.9 Ohm resistor
1 Original vehicle stay bolts, body washer [2x],
angle bracket, M6flanged nut
2 0.9 Ohm resistor, M5 flanged nut, washer,
M5x20 bolt
Connect 0.9 Ohm2 resistor according to page 9
in the circuit diagram.
5
1
6
1 2
br
bl
br
sw
sw
rt
sw
Wait to install the metering pump
cable harness until later,
together with fuel pipe along the
original vehicle fuel lines on the
underbody.
7
4
2
3
1
8
1
2
