Webasto Mazda 3 MPS - Exhaust System

Mazda 3 MPS
1311472A
17

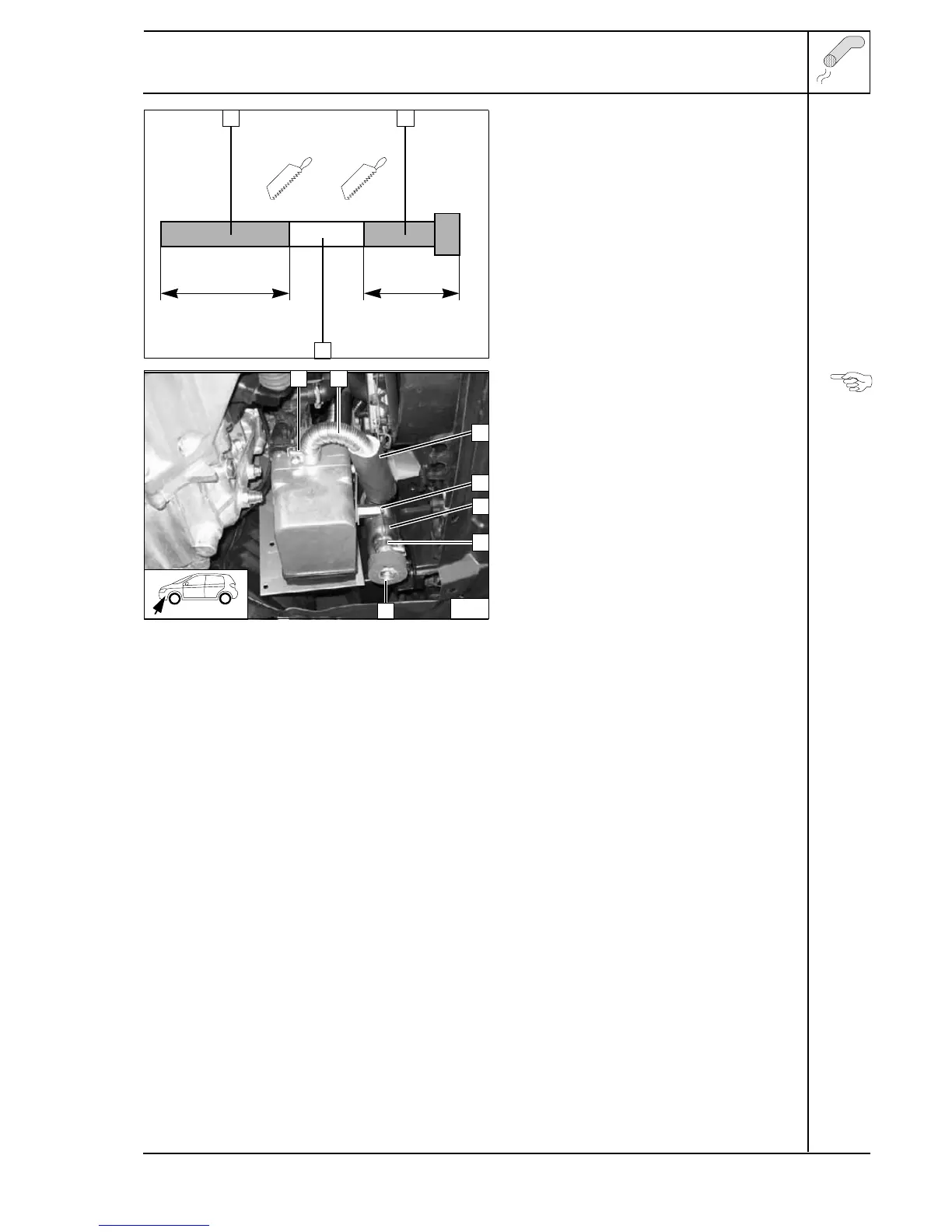

Exhaust System
1 Exhaust pipe
a = 440mm
2 Exhaust end section
b = 50mm
Dispose of section X
Preparing
the
exhaust
pipe
Ensure sufficient distance from adjacent
components.
1 Hose bracket
2 Exhaust line, hose clamp on the exhaust
silencer [covered]
3 Heat insulation
4 M6x16 bolt, spring washer
5 Exhaust silencer
6 Exhaust end section, hose clamp
7 Red (rt) rubber profile with groove
Assem-
bling the
silencer
a b
1 2
X
31
3
1 2
7
4
5
6
