Mazda 3 MPS
1311472A
22
Water Connection for Gasoline Engines
WARNING!
Tighten all hose clamps to 2.0 + 0.5 Nm.
Any coolant running off should be collected using an appropriate container!
Route hoses so that they are kink-free. Unless specified otherwise, always fasten using cable clips.
Position hose clamps and spring band clamps so that no other hose can be damaged.

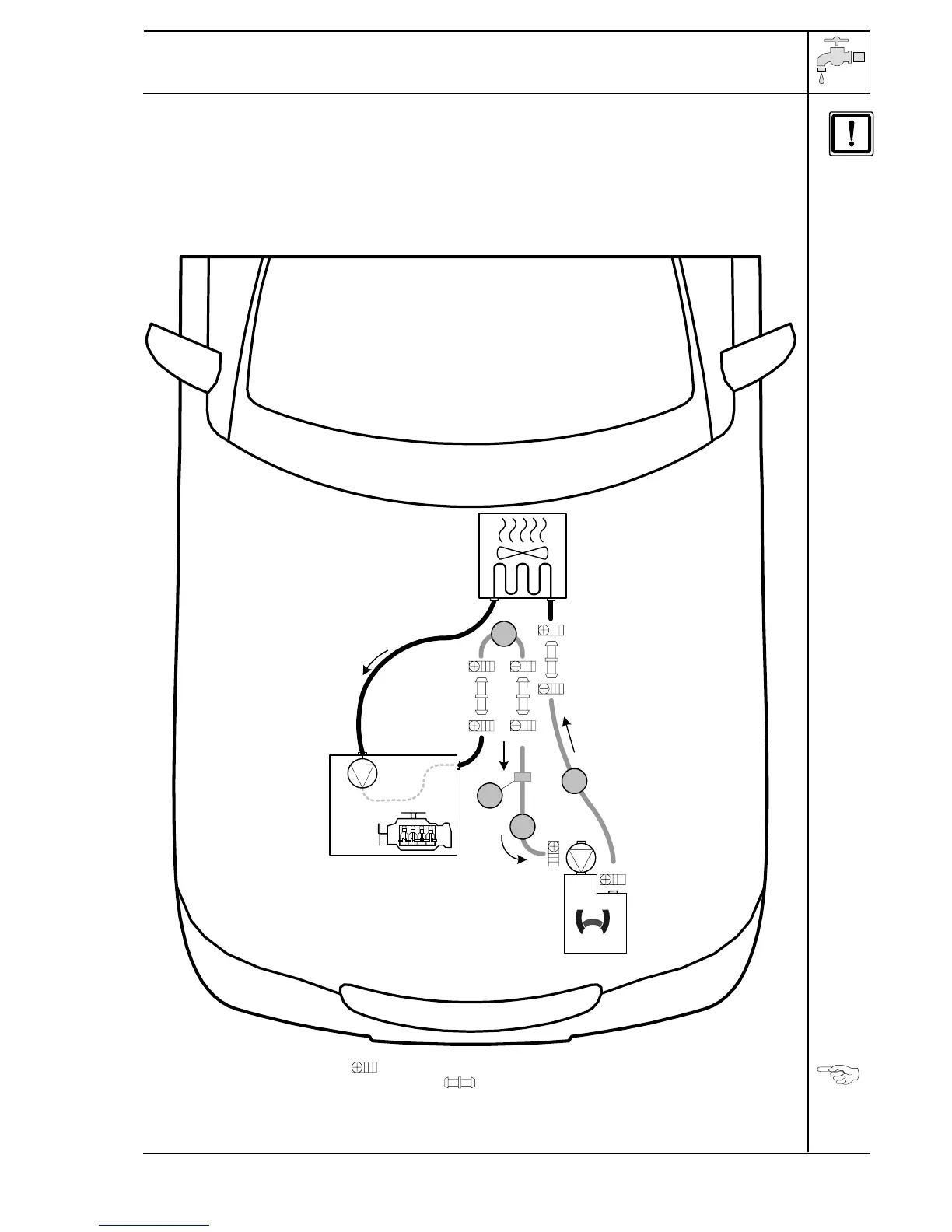

The connection should be "inline" based on the following diagram:
Water
installation
diagram
All hose clamps = Ø 20-27 mm.
All undesignated connecting pipes = Ø 18x20.
1 = Rubber profile (sw)
Ø 18x18
A
B
C
1
Ø 17x20
To Next Page
