Webasto Mazda 3 MPS - Harness; Fuel Connection

Mazda 3 MPS
1311472A
18
Fuel Connection
CAUTION!
Open the vehicle's tank-cap lock, ventilate the tank and then re-close the tank lock.
Catch any fuel running off with an appropriate container.
Install fuel line and metering pump cable harness so that they are protected against stone impact.
Unless specified otherwise, always fasten using cable clips.
Fit the fuel line and cable harness with edge protectors around sharp edges.
WARNING!
The fuel line and cable harness to the metering pump should be installed based on the cable harness
installation diagram.

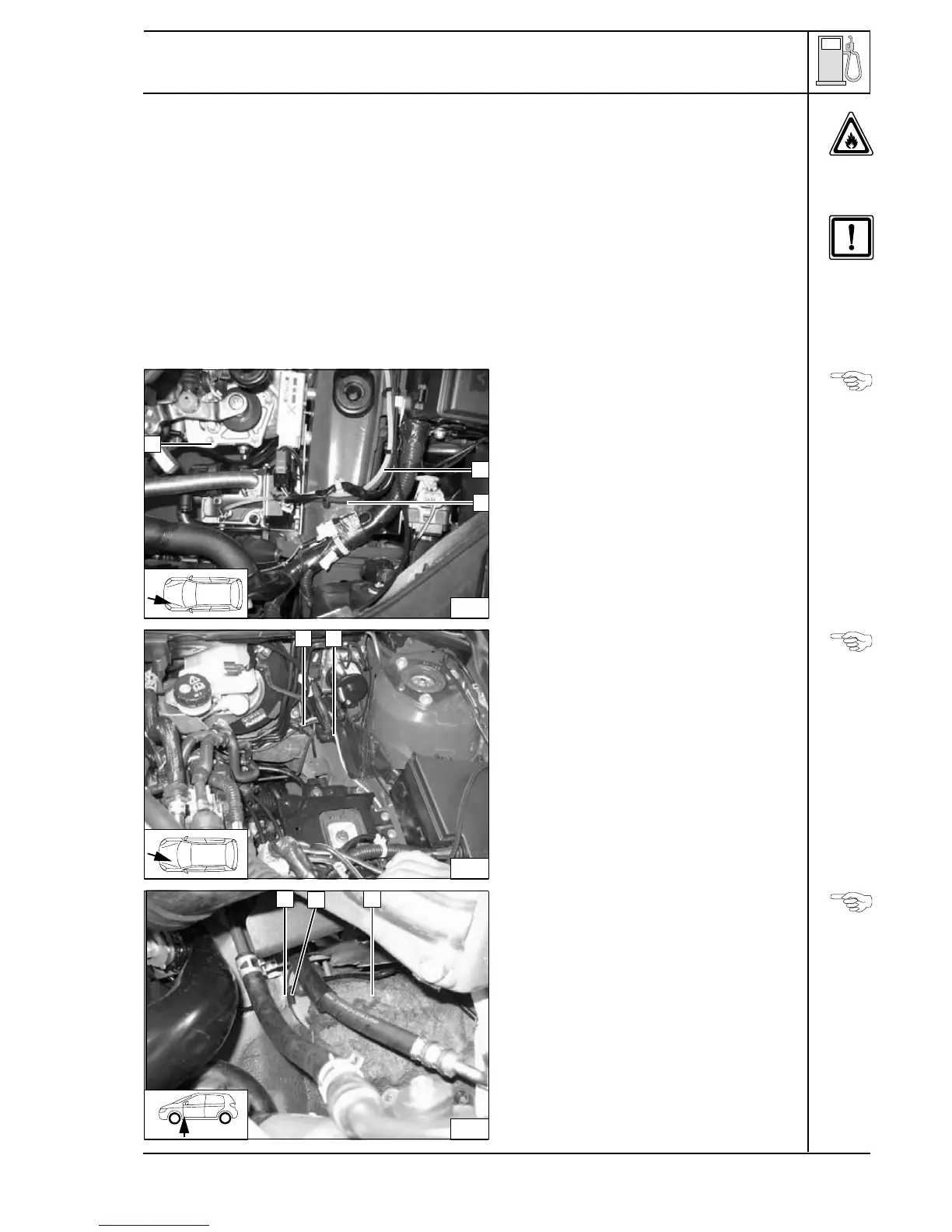

Install the fuel line 1 and the heater unit cable
harness 2 on the original vehicle fuel lines
and secure with cable ties.
Placement
of the fuel
line in the
engine
compart-
ment
Install the fuel line 1 and the heater unit cable
harness 2 on the original vehicle fuel lines
and secure with cable ties.
Run this along the right side of the vehicle,
behind the thermal insulation covers and
along the original vehicle lines.
Placing the
fuel pipe
Placement of the fuel pipe 2 is done together
with the metering pump cable harness 1 to
the vehicle underbody behind the insulation
3.
Placing the
fuel pipe
32
1
7
2
33
1 2
34
1
2
3
