Mazda 3 MPS
1311472A
19

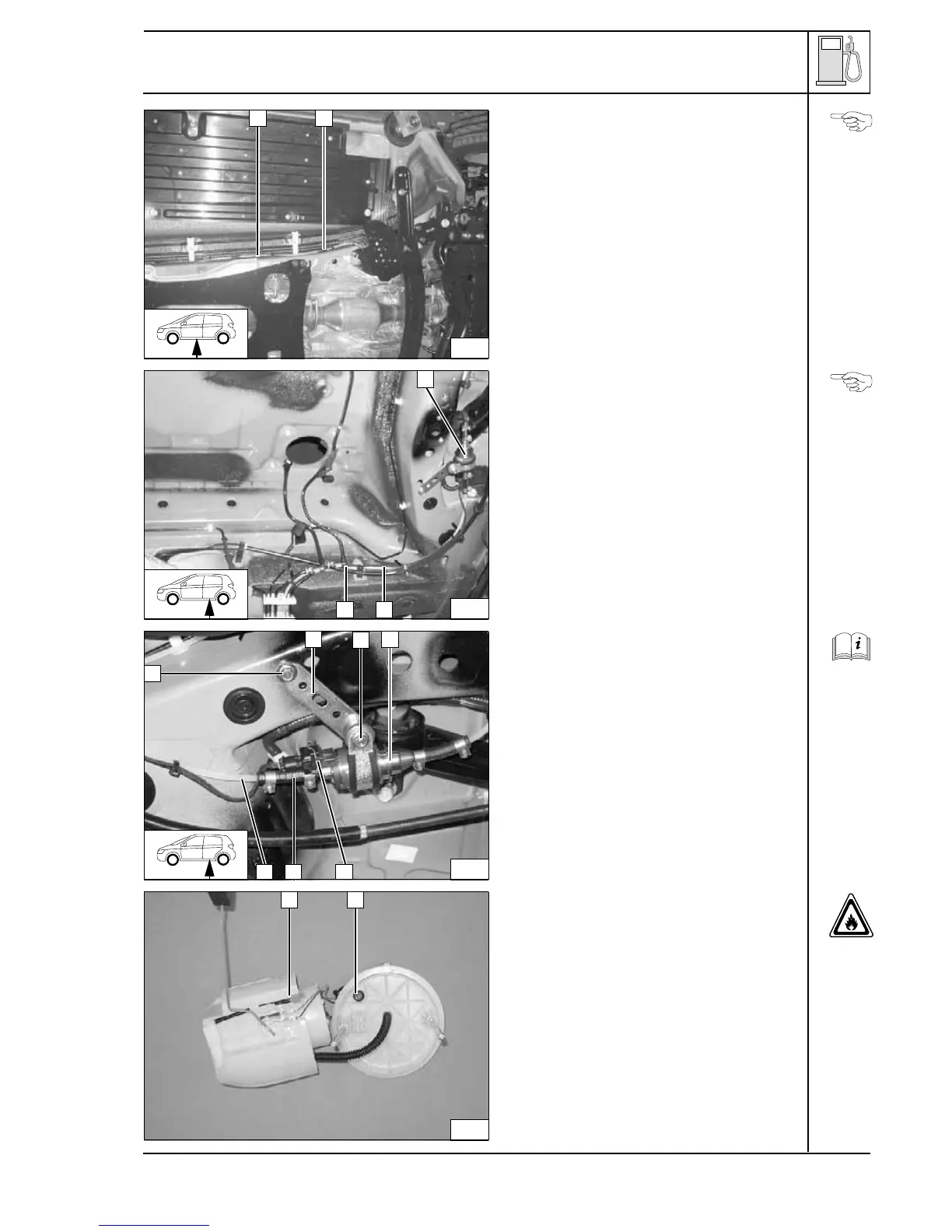

Placement of the fuel pipe 2 is done together
with the metering pump cable harness 1 to
the vehicle underbody along the original
vehicle lines, secure with cable ties.
Placing the
fuel pipe
Installation location of the metering pump 1 is
to the right next to the vehicle tank.
Run the fuel pipe from the heater unit 2 and
metering pump cable harness 3 to the
metering pump installation location 1.
Placing the
fuel pipe
Fuel pipe 6 from the heater unit on the outake
side of the metering pump 3 [side with
connector].
Check the position of the components; adjust
if necessary. Check that they have free
clearance.
1 Fastening strap with holes
2 Rubber tube clamp, silentblock, flanged
nut M6 [2x]
4 Metering pump cable harness, connector
5 Hose section, hose clamps [2x].
7 Original vehicle bolt, loosely fitted
Assem-
bling the
metering
pump
Remove the tank mounting according to the
manufacturer's instructions and take it apart.
Attach the M6 flanged nut 2 according to the
illustration, transfer the hole image for the Ø
6.0 mm hole.
1 Tank mounting
Fuel take-
off
35
1 2
36
3 2
1
37
1
7
2
3
5 46
38
1 2
