Webasto Mazda 3 MPS - Page 20

Mazda 3 MPS
1311472A
20

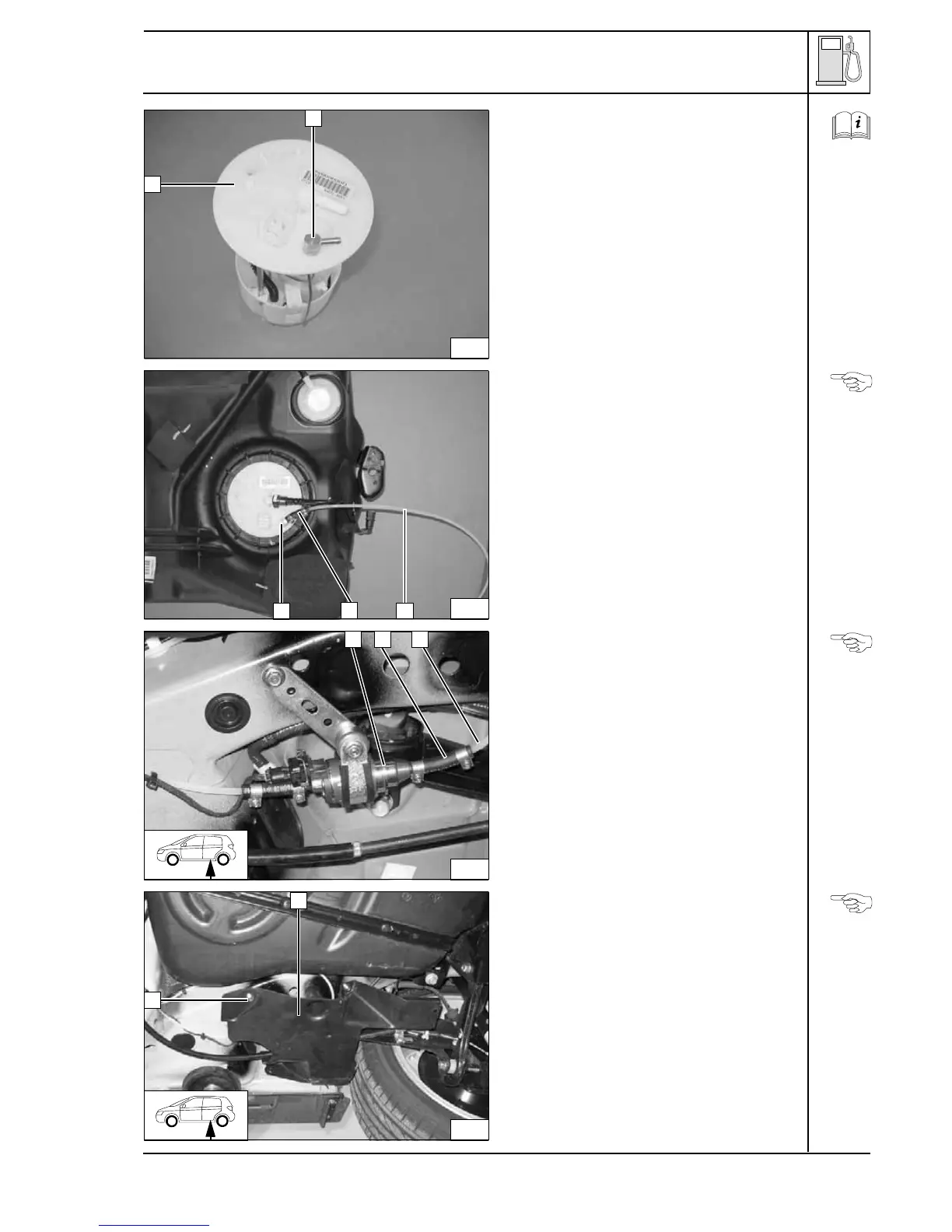

Shape, cut into sections, and insert the tank
extracting device according to the template,
see the Installation Instructions.
Re-assemble tank mounting!
1 Tank extracting device
2 Tank mounting
Inserting
tank
extracting
device
Install the tank mounting according to
manufacturer's instructions.
1 Fuel line 1500 mm
2 Hose section, Ø 10 mm hose clamps [2x]
3 Tank extracting device
Connect-
ing and
discon-
necting the
fuel pipe
Assemble fuel tank according to
manufacturer's instructions.
Fuel line from the tank extracting device on
the intake side of the metering pump 1 [side
without connector].
Check the position of the components; adjust
if necessary. Check that they have free
clearance.
2 Hose section, Ø 10mm hose clamps [2x]
3 Fuel pipe, cut into sections
Connec-
tion to
metering
pump
Assemble the panelling on the rear axle 1.
2 Original vehicle bolt (see page 19 figure
37).
Assem-
bling the
panelling
for the rear
axle
39
1
2
40
3
1
2
41
1 2 3
42
2
1
