Webasto Mazda 3 MPS - Preparing the Installation Location

1311472A
13
Mazda 3 MPS

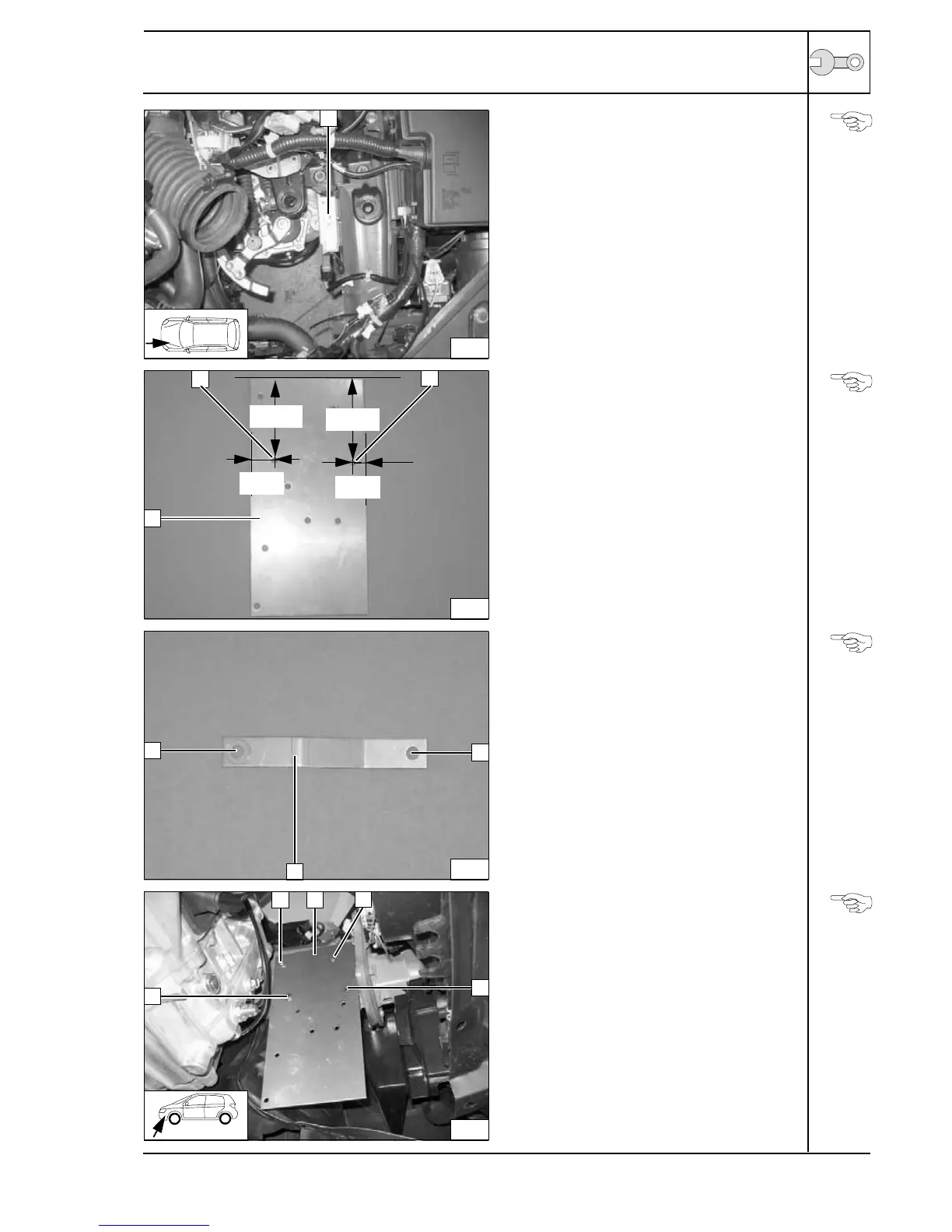

Preparing the Installation Location
Remove the blower resistor 1
Drill Ø 7mm holes1 [2x] in the bracket 2
according to the illustration.
Preparing
the bracket
Drill open holes 1[2x] in the strut 2 to Ø10mm.
Preparing
the strut
Assemble the bracket 2 according to the
image, transfer hole images 3 and 4.
1 M6x20 bolt, 5 mm spacer washer, original
vehicle threaded insert
3 Hole image for Ø 9.1 mm hole
4 Hole image for Ø 7 mm hole
5 M6x70 bolt, 15mm spacer nut, 30 mm
spacer, original vehicle threaded insert
Copying
the hole
17
1
18
2
114mm
107mm
18mm
30mm
1
1
19
1
2
1
20
1 2
4
5
3
