DVS/GSE GSE DVS Field Service Manual
09030-78B 29 of 49
Webasto Charging Systems, Inc.

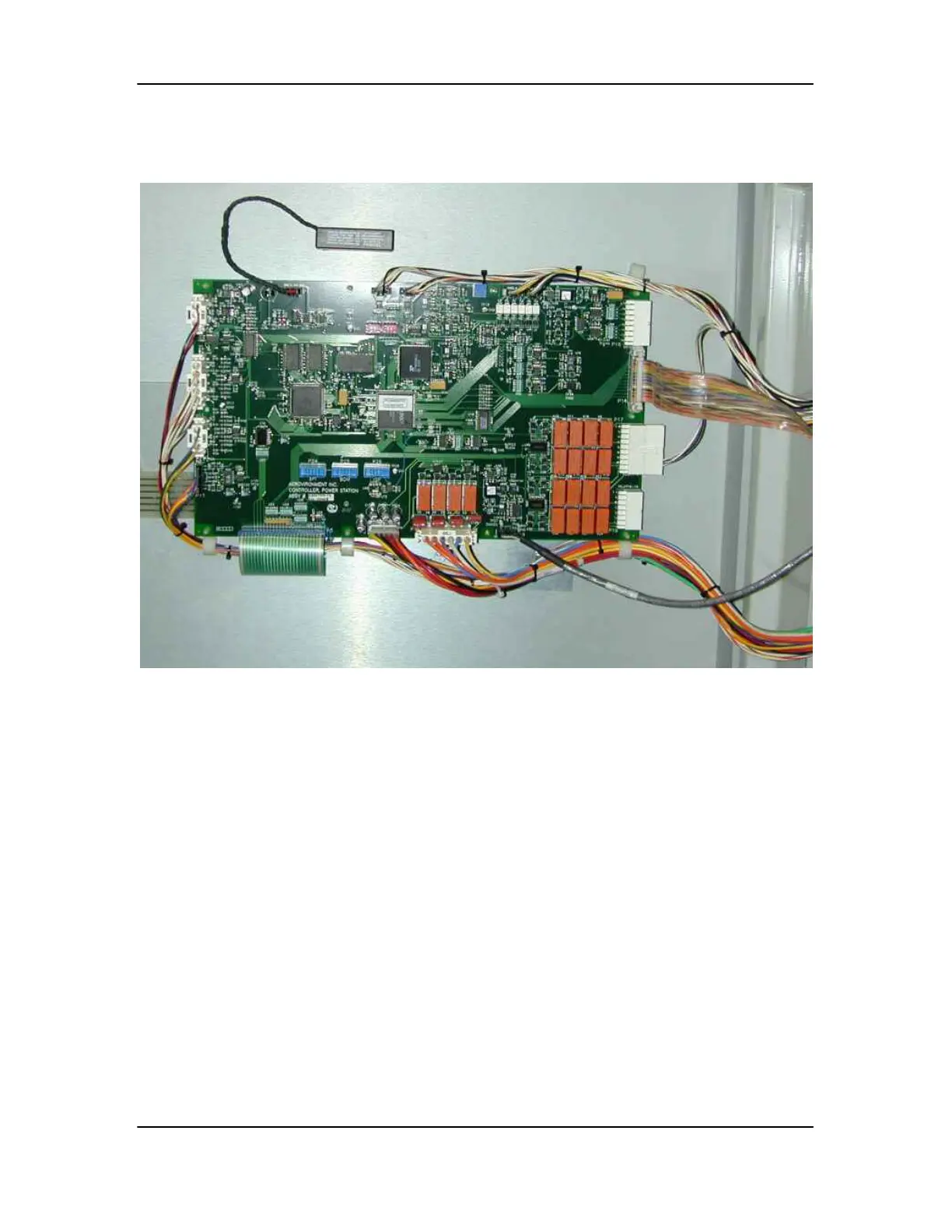

3.1.4.9 Control Board (P/N 08067)
The control board is attached to the inside of the door by several snap-on standoffs and two metal
threaded standoffs with retaining nuts.
1. Disconnect all cables and note original locations.
2. Disconnect ribbon cable from display.
3. Remove nuts from threaded standoffs.
4. Release snap-on standoff retainers by squeezing gently.
5. Remove board.
6. Reverse these steps to install the board.
